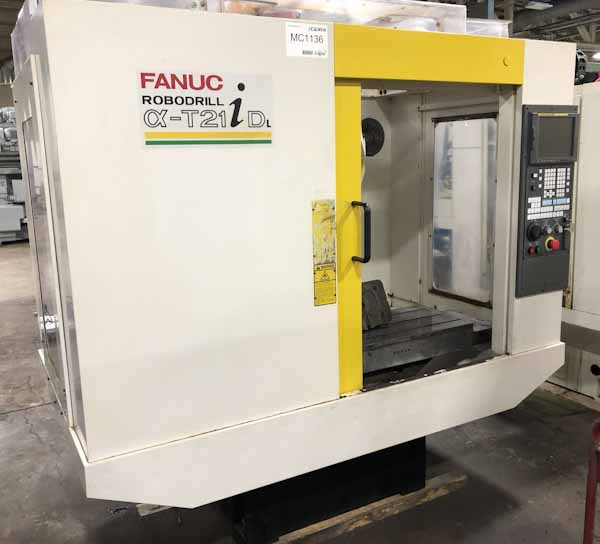

Fanuc Robodrill T21iDL 3-Axis Turret Style Vertical Machining Center

Brand
FANUC

Model
Robodrill

Stock #
vmc249

Condition
Used

Year
2005

Location
City Not Specified,

Specifications

Equipped With

Fanuc 16iMB CNC Controls with Monitor. Full Keyboard. Handwheel Jog Control. RS232. Control System with High Pressure Pump. Cartridge Filtration. 21-Position Turret. 16" x 33" T-Slotted Table. Kurt Vise.


X-Axis Travel (Longitudinal Movement of table) 27.5" (700mm)
Y-Axis (Cross Movement of Saddle) 15.78" (400mm)
Z-Axis Travel (Vertical Movement of Spindle Head) 12.9" (330mm)
Distance Table Surface to Spindle Edge Surface 5.90"-18.89" (150-480mm)
Distance Front Surface of Column to C/L of Spindle 15.78" (400mm)
Table Area 33.4" x 16.14" (850mm x 410mm)
Table Load Capacity (uniform load) 250kg
Spindle Speed Range 100-10,000 RPM
Type of Spindle Taper Hole No. 30
Rapid Traverse Feedrate X, Y, Z 2125 IPM (54,000 mm/min)
Cutting Feedrate 1181 IPM (1-30,000 mm/min)
Type of Tool Shank MAS BT30
Tool Storage Capacity 21
Maximum Tool Length 9.84" (250mm)
Spindle Drive Motor 5.5 kW (10 min rating)
Approximate Weight 5,000 lbs (2100kg)
