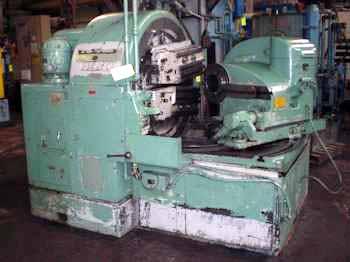

Gleason Model 24R Straight Bevel Gear Rougher

Brand
GLEASON

Model
24R

Stock #
gh24rx

Condition
Used

Year

Location
F.O.B. MI Shipping Point,
United States

Specifications

Longest Cone Distance (1.75" Stroke) 18"
Maximum Pitch Angle (Shafts at 90°) 84 deg 18'
Minimum Pitch Angle 5 deg 42'
Extreme Ratio 10 to 1
Maximum Pitch Diameter: 10 to 1 Ratio 35.5"
Maximum Pitch Diameter: 2 to 1 Ratio 31.75"
Maximum Pitch Diameter: 1 to 1 Ratio 25"
Maximum Pitch (Gleason System) 1 2/2 DP
Maximum Face Length 5" - 26"
Spindle Nose to Center Line of Machine 5" - 26"
Main Motor 7.5 HP 1800 or 1500 RPM
Pump Motor 2 HP 188 or 1500 RPM
Net Weight 24,400 lbs
F.O.B. MI Shipping Point

Equipped With

Setting Gauges. Hydraulic Cylinder for Power Chucking. Change Gears. Two Cutter Blocks with Finishing Cutters. Coolant. Auto Lube. Operators Manual.
