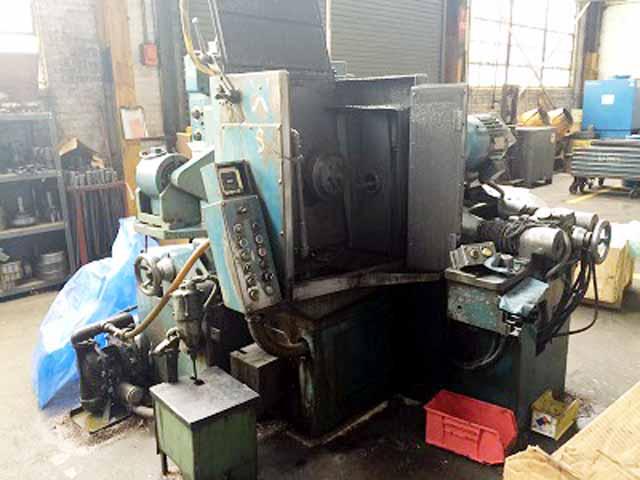

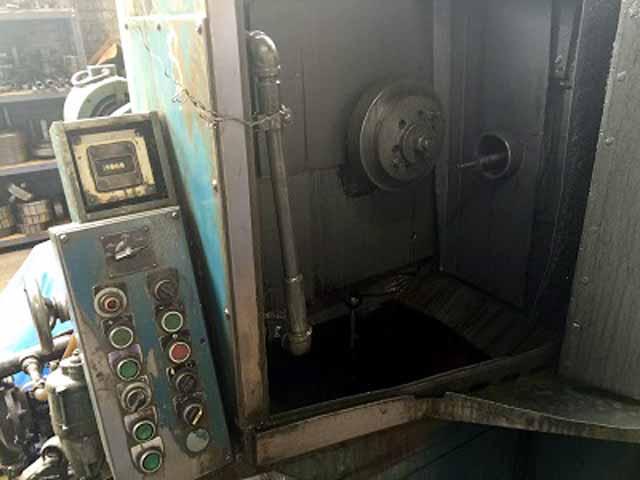

Gleason Model 516 Gear Lapper

Brand
GLEASON

Model
516

Stock #
gh516x

Condition
Used

Year

Location
City Not Specified, Michigan
United States

Specifications

Diameter of Gear (Max) 24
Diameter of Pinion (Max) 12"
Speed 1200 RPM
Diameter of Taper at Large End 3-29/32"
Taper per Foot 39/64"
Depth of Taper 3"
Diameter of Taper at Large End 2-19/64"
Taper per Foot 1/2"
Depth of Taper 3"
Main Motor, Standard 5 HP, 1800 RPM
Hydraulic Pump Motor 1 HP, 1800 RPM
Floor Space 80" x 90" x 72"
Net Weight 11,200 lbs

Equipped With

Hydraulic Chucking. Lapping System. Drawbar. Work Holding.

This machine is being offered cleaned and cycled and may be inspected at your convenience.
