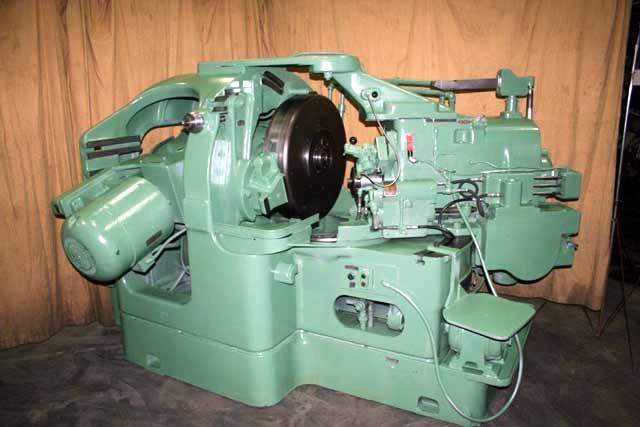

Gleason Model 22 Formate Hypoid Gear Rougher

Brand
GLEASON

Model
22A

Stock #
gh983

Condition
Used

Year

Location
Lake Bluff, Illinois
United States

Specifications

Longest Cone Distance 11"
Largest Pitch Angle 90°
Smallest Pitch Angle (without chamfering or burring attachments) 45°
Largest Pitch Diameter:-1 to 1 Ratio 15.5"
Largest Pitch Diameter:-12 to 1 Ratio 22"
Largest Pitch (diametral) 1.5 DP
Maximum Face Width 4"
Index Range(number of teeth) 31-78
Feed (seconds per tooth) 5-40
Diameter of Tapered Nose (large end) 6-7/8"
Length of tapered nose .75"
Taper Per Foot .5"
Diameter of Hole Through 2"
Spindle Nose to Center Line of Machine 4.5"-8"
Cutter Diameter 9", 12", 18"
Cutter Speeds 100-150
Main Motor 10 HP, 1800 RPM
Floor Space 84" x 103"
Weight 18,500 lbs.
F.O.B. Our Plant

Equipped With

Hydraulic Clamping. Stock Dividers. Change Gears.

This machine is being offered cleaned and cycled. It is being offered with a 30-Day Return Privilege and can be inspected at your convenience.
