Specifications
Equipped With
Max. Swing 20"
Max. Swing Over Cross Slide 9.5"
Max. Turning Dia 10"
Max Shaft Length 20"
Spindle Bore Dia 2.5"
Max. Bar Capacity 2.0"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Spindle Nose A2-6
Spindle Speeds 3,750 RPM

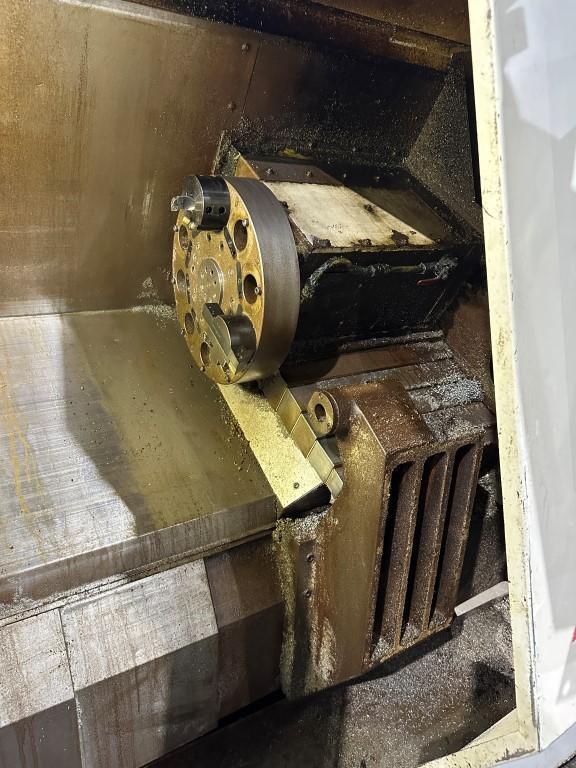

Turret Configuration 10
Rapid Traverse X / Z. 710 IPM
Tailstock Body Stroke 20"
Main Motor 15 AC HP
Machine Weight 8000 lbs

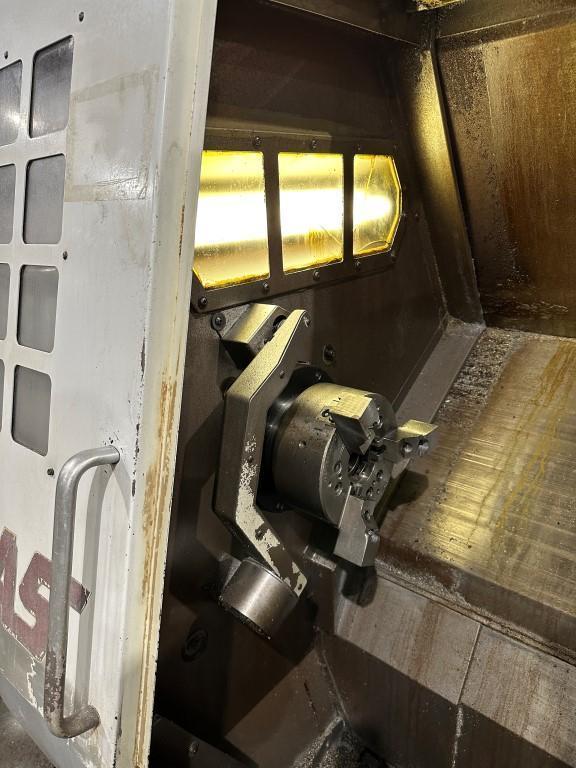

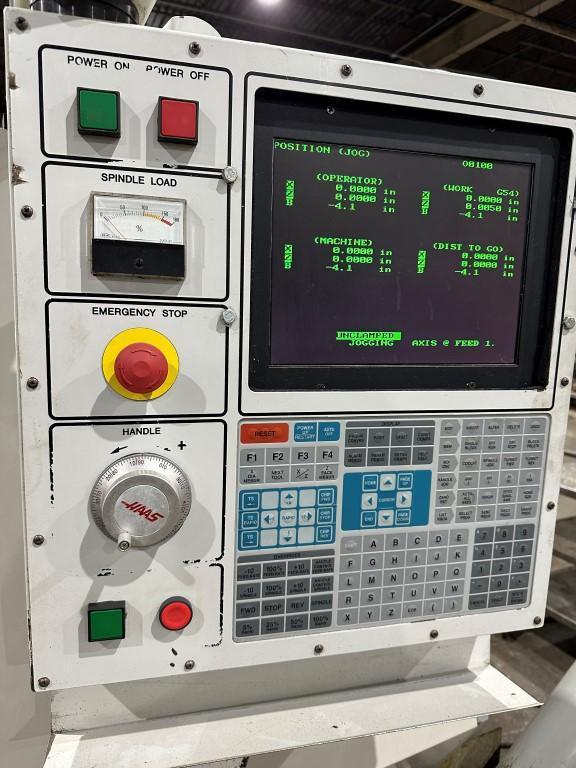

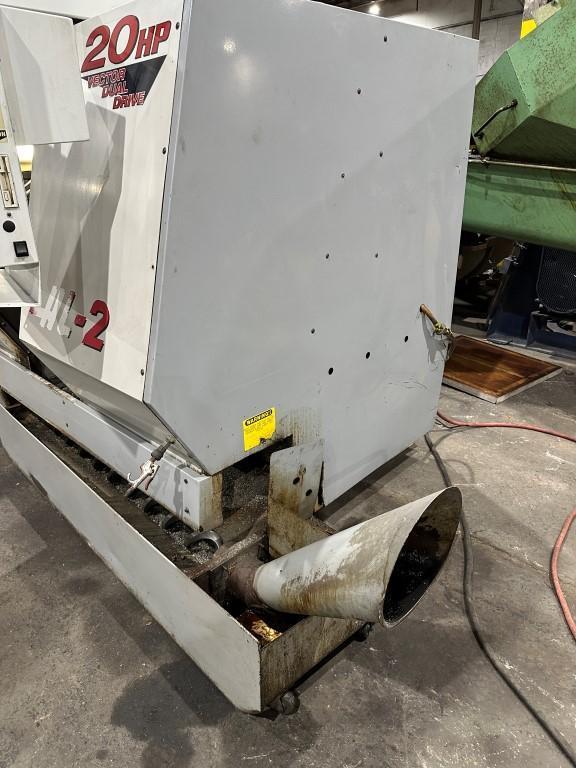

Equipped With Pendant Mounted Haas CNC Control with Full CRT, Keyboard, MPG, Spindle Load Meter. 12" 3-Jaw Chuck. Tool Presetter. Tailstock. 10 Postion Turret. Coolant System With Auger Chip Conveyor. Work Lights.
