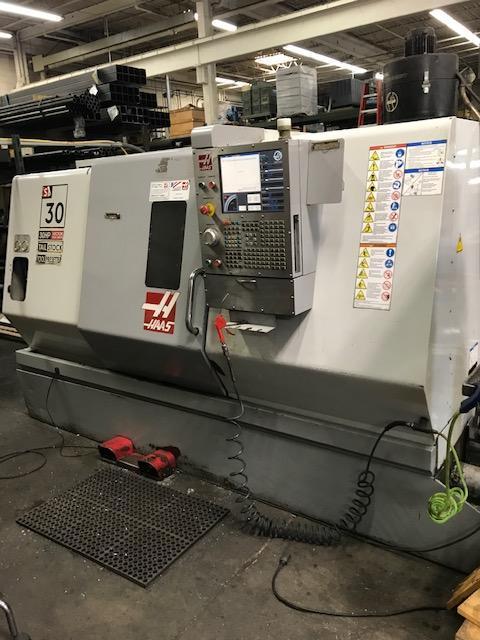

Haas Model SL30T CNC Turning Machine

Brand
HAAS

Model
SL30T

Stock #
CNCSL30x

Condition
Used

Year
2008

Location
ON LOCATION, Illinois
United States

Specifications

Bar Capacity 3 inches
Chuck Size 10 inches
Spindle Speed 3400 RPM
Spindle Motor 30 HP
X-Axis Travel 9.4 inches
Z-Axis Travel 32.5 inches
Rapid Rate, Z-Axis 945 IPM
Turret Tool 12 Station
Rapid Rate, X-Axis 945 IPM
Max. Turning Diameter 15 inches
Max. Turning Length 32.5 inches
Max. Swing 20.5 inches
Spindle Nose A2-6
Spindle Bore Ø 3.5 in 88.9 mm
Approximate Dimensions 171" x 90" x 98"
Approximate Weight 14300 pounds
On Location IL Shipping Point

Equipped With

Haas CNC Controls. Tool Presetter. Collet Chuck. 12 Position Turret. Rigid Tapping. Chip Auger. High Pressure Coolant. Programmable Hydraulic Tailstock.

This Haas can be inspected under power and is offered “As Taken from Service” It appears to be in very good operating condition.
