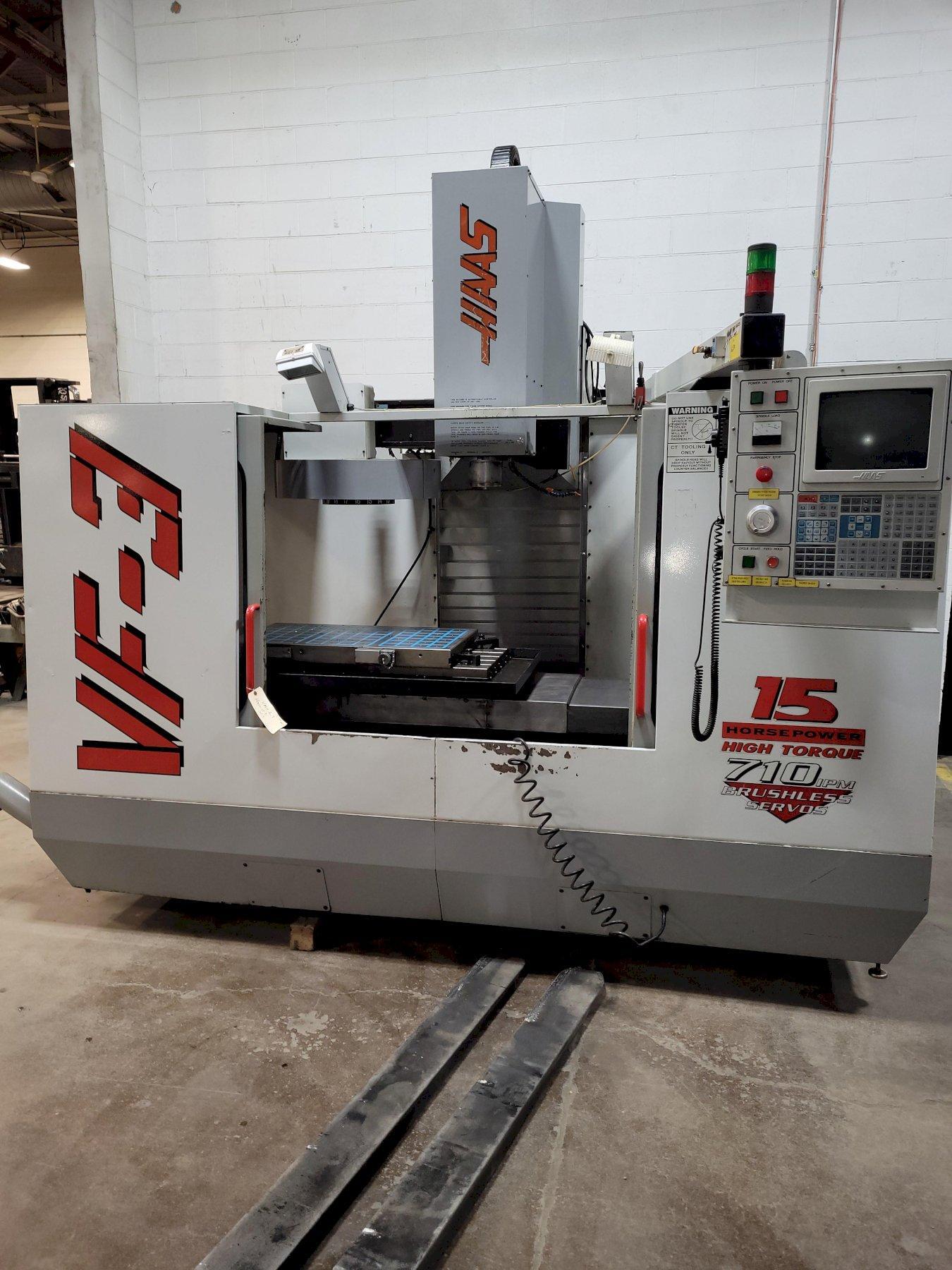

Haas Model VF3 CNC Vertical Machining Center

Brand
HAAS

Model
VF3

Stock #
vmc267

Condition
Used

Year
1996

Location
Lake Bluff, Illinois
United States

Specifications

Y-Axis Travel 20 inches
Z-Axis Travel 25 inches
Spindle Nose to Table Top 4" - 29"
Spindle Speed 10,000 RPM
Spindle Drive (Vector Drive) 15 HP
Spindle Taper CAT40
Automatic Tool Changer 20-Positions
Rapid Traverse Rate 710 IPM
Approximate Weight 12500 pounds
Table Size 48" x 18"
Maximum Table Load 3500 pounds
X-Axis Travel 40 inches

Equipped With

Haas CNC Control. Wired for 4th Axis. Rigid Tapping. 15 HP High Torque Drive. Brushless Servos. Probe Ready with Renishaw T527R Tool Setting/Broken Tool Probe. Renishaw MI12, MI8 Interface. 8 MB Extended Memory. Ethernet/USB/CNC Selector Panel Mounted USB Port. Programmable Coolant Nozzle. Quick Code. Macro Code. Coord Scale. Manual Pulse Generator. Chip Auger. Coolant Pump and Tank. High Intensity Worklights.

The VF3 is being offered Cleaned, Cycled, and Guaranteed to be in good operating condition.
