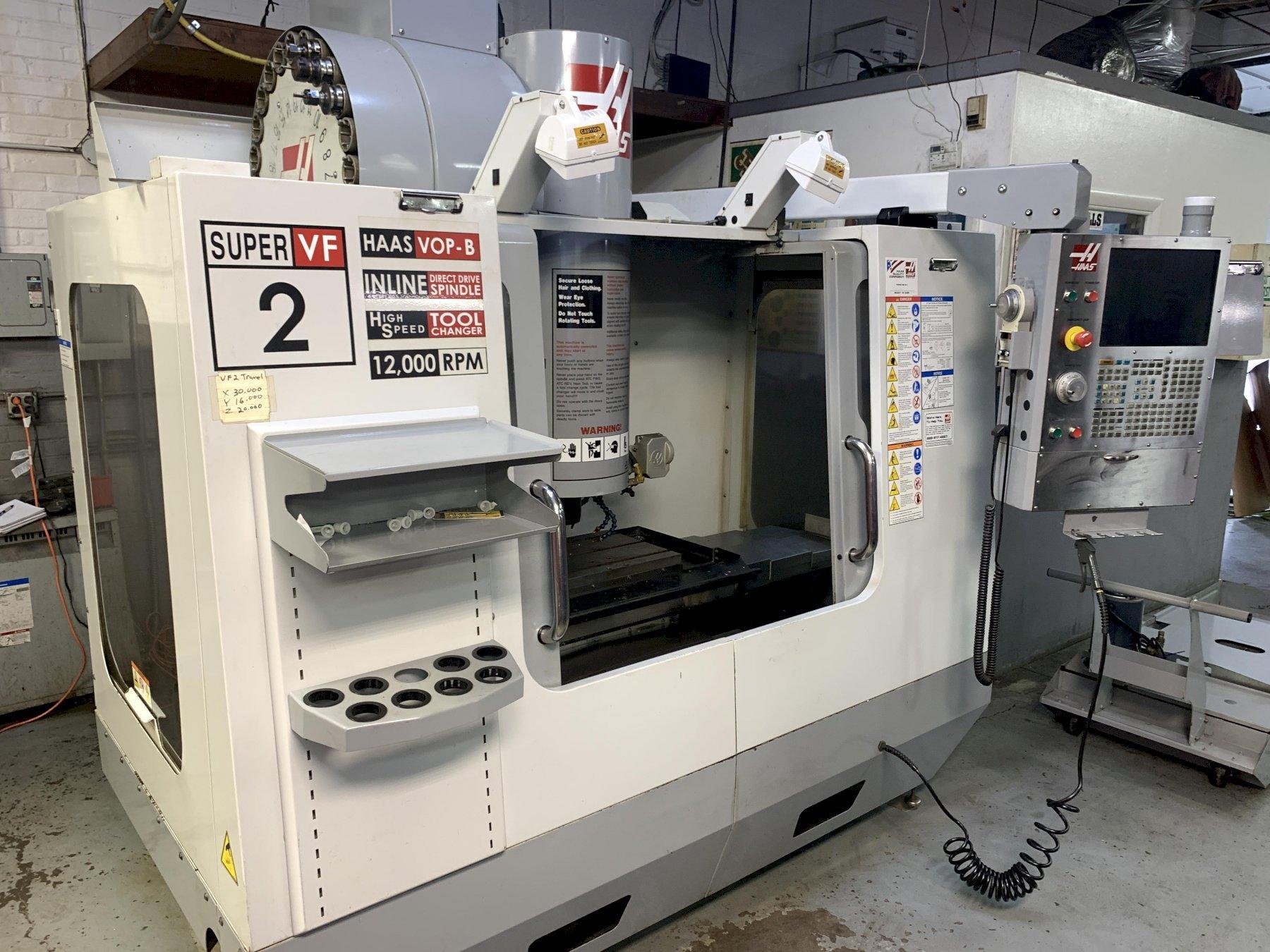

Haas VF2SS 3-Axis CNC Vertical Machining Center

Brand
HAAS

Model
VF2SS

Stock #
VMC2SSX

Condition
Used

Year
2007

Location
Lake Bluff, Illinois
United States

Specifications

Table Size 36” x 14”
Maximum Table Load 3000 lbs
Travels (X, Y, Z) 30” x 16” x 20”
Distance from Spindle nose to Top of Table (min/max) 4” / 24”
Spindle Speed 12,000 RPM
Spindle Taper 40 Taper
Spindle Drive 40 HP
Rapid Traverse Rate (X, Y, Z) 1,400 IPM
Number of Positions in ATC 24
Maximum Tool Diameter 3.5”
Maximum Tool Weight 12 lbs
Approximate Machine dimensions 88”LR x 90”FB x 96”H
Approximate Machine Weight 7,500 lbs

Equipped With

EQUIPPED WITH:
Haas CNC with Full-Color CRT with Graphics. Coldfire II Processor.  M15.04 Software. Keyboard. Remote Jog Handle. Highspeed Machining. 16 MB Expanded Memory. Rigid Tapping. Programmable Coolant Nozzle. Coordinate Rotation and Scaling Macros. Auger Chip Conveyor. Highspeed 24-Position Side-Mounted Tool Charger. 40 HP Inline Direct-Drive Spindle. Coolant Pump and Tank. High-Intensity Work Lights.
