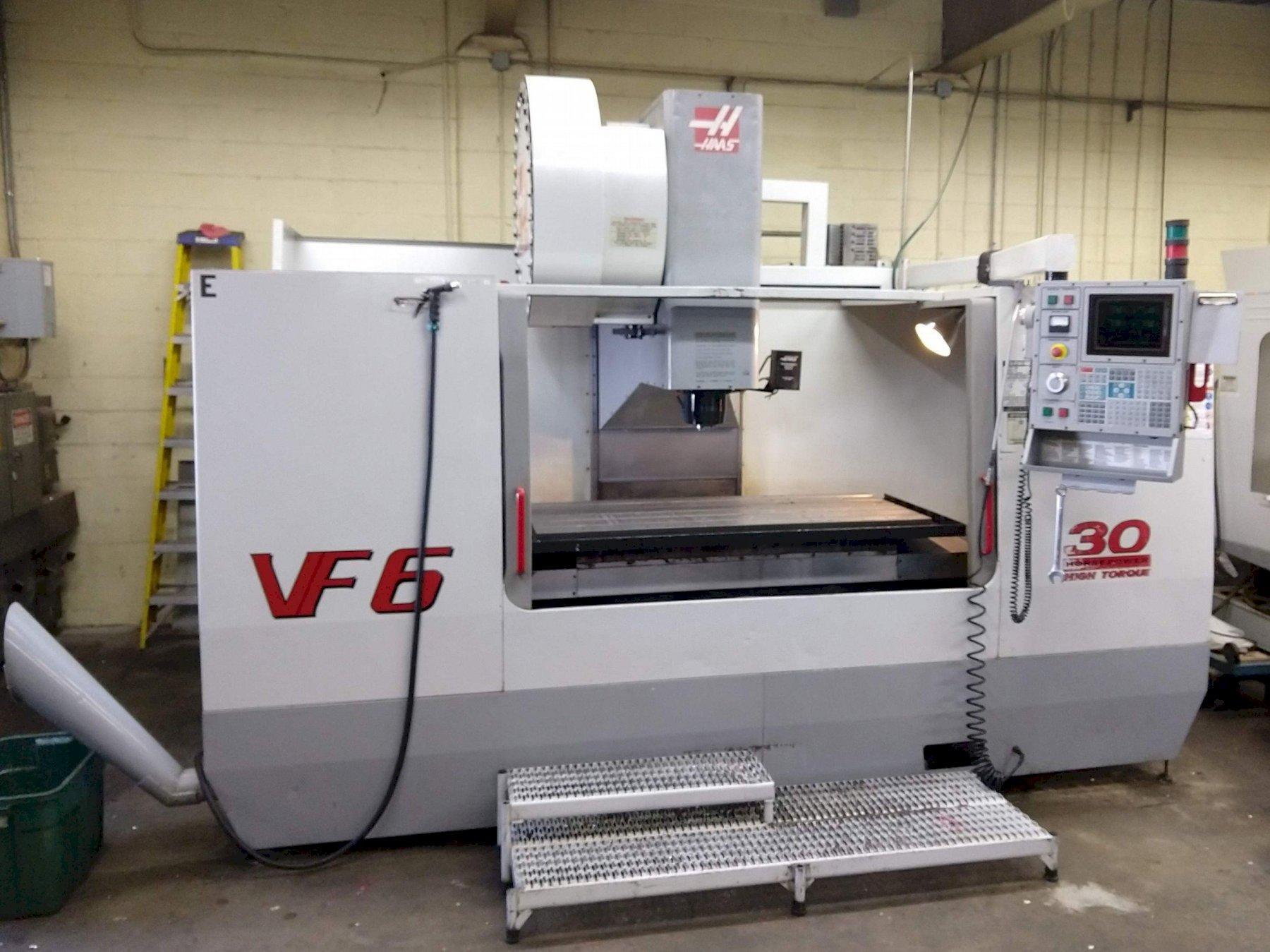

Haas VF6B/50 3-Axis Vertical Machining Center

Brand
HAAS

Model
VF6B/50

Stock #
VMC650X

Condition
Used

Year
2000

Location
Lake Bluff, Illinois
United States

Specifications

X-Axis Travel 64 inches
Y-Axis Travel 32 inches
Z-Axis Travel 30 inches
Spindle Nose to Table 4" - 34"
Table 64" x 28"
Max. Weight on Table 4,000 lbs
Spindle Motor 30 HP
Maximum Spindle Speed 10000 RPM 2-Speed Geared Head
Maximum Torque 250 ft-lb @ 450 RPM
Spindle Speeds (2-Speed Geared) 0-10000 RPM
Spindle Taper CAT 50
Rapids, X 540 IPM
Rapids, Y & Z 600 IPM
Maximum Cutting 500 IPM
Tool Change (Side Mount) 30
Maximum Tool Weight 12 pounds
Tool Change Time 2.8 seconds
Maximum Diameter Full/Adj Empty 3" / 6"
Approximate Dimensions 156"W x 100"FB x 125"H
Approximate Weight 25600 pounds
F.O.B. "On Location" Midwest Shipping Point

Equipped With

Haas CNC Controls. With Jog Control Pendant. Through Spindle Coolant. Chip Auger. Rigid Tapping. 30 Side Mounted Automatic Tool Changer. Roll Out Coolant Pump And Tank. Oil/Coolant Separator.
