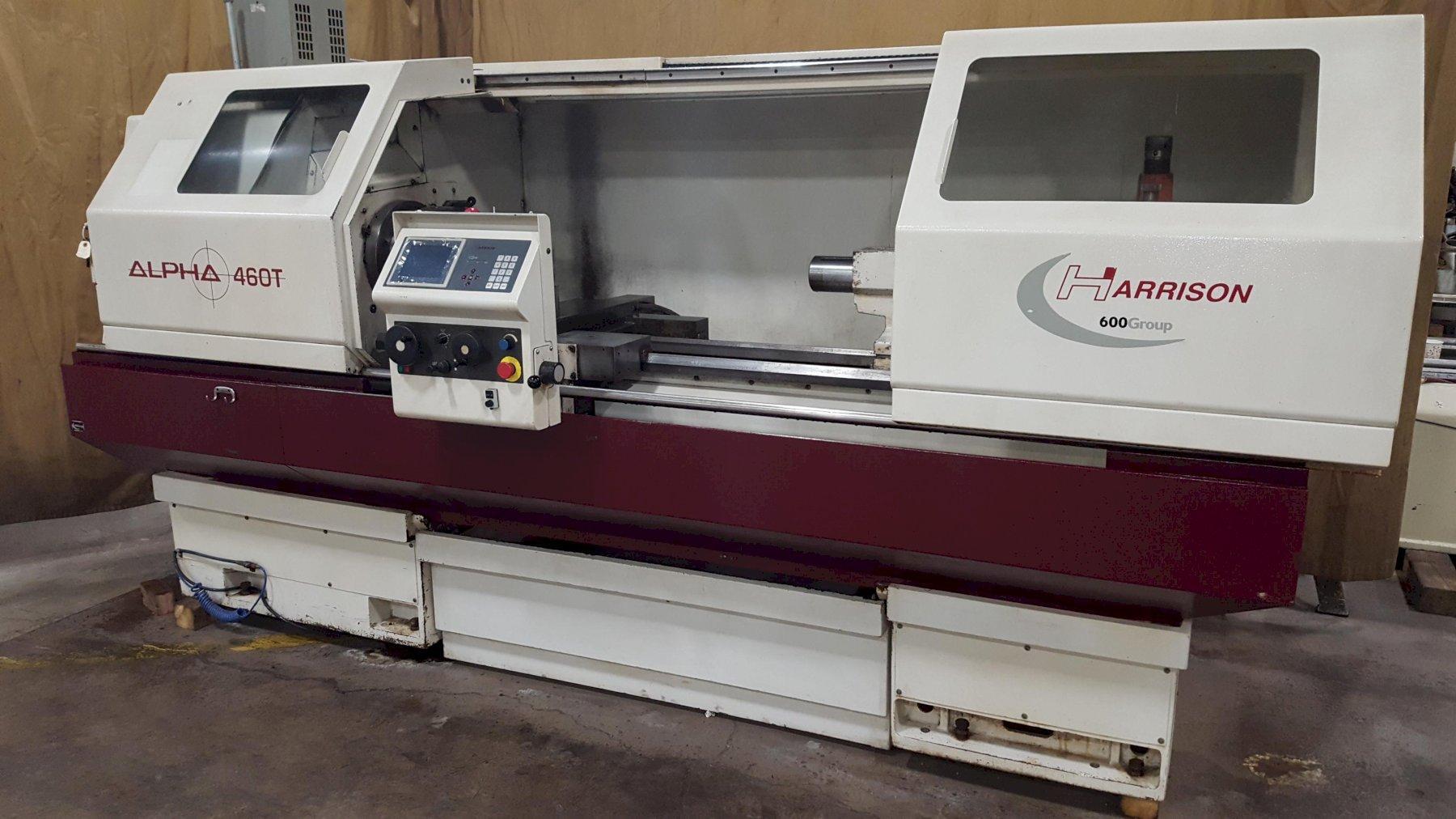

Harrison Alpha 460T CNC/Manual Teach Lathe

Brand
HARRISON

Model
460T

Stock #
cnc459

Condition
Used

Year
2001

Location
Lake Bluff, Illinois
United States

Specifications

Max Swing Over Bed 18.125 inches
Max Swing Over Carriage 10.625 inches
Max Tailstock Position 60 inches
Max Machinable Center Distance 60 inches
Feed Range (infinitely variable) 0.1 - 118 IPM
Spindle Bore 3 inches
Spindle Nose D1-98
Spindle Speed Range (1 RPM increments) 20 - 2000 RPM
Spindle 15 HP
Electrics 6 phase, 60 cycle, 460v
Approximate Dimensions 120" x 64" x 60"
Approximate Weight 4000 pounds

Equipped With

Fanuc Alpha CNC Control (0i). MPG Handwheel for Manual Operation Inch/Metric Programming RS-232. 12” 3-Jaw Chuck. Tool Post. Tailstock. Steady Rest. Removable Gap. Work Enclosure and Coolant System. Transformer.

The Harrison appears to in very good condition. It can be inspected under power on our floor. It is offered Cleaned, Cycled, and Guaranteed to be in operating condition.
