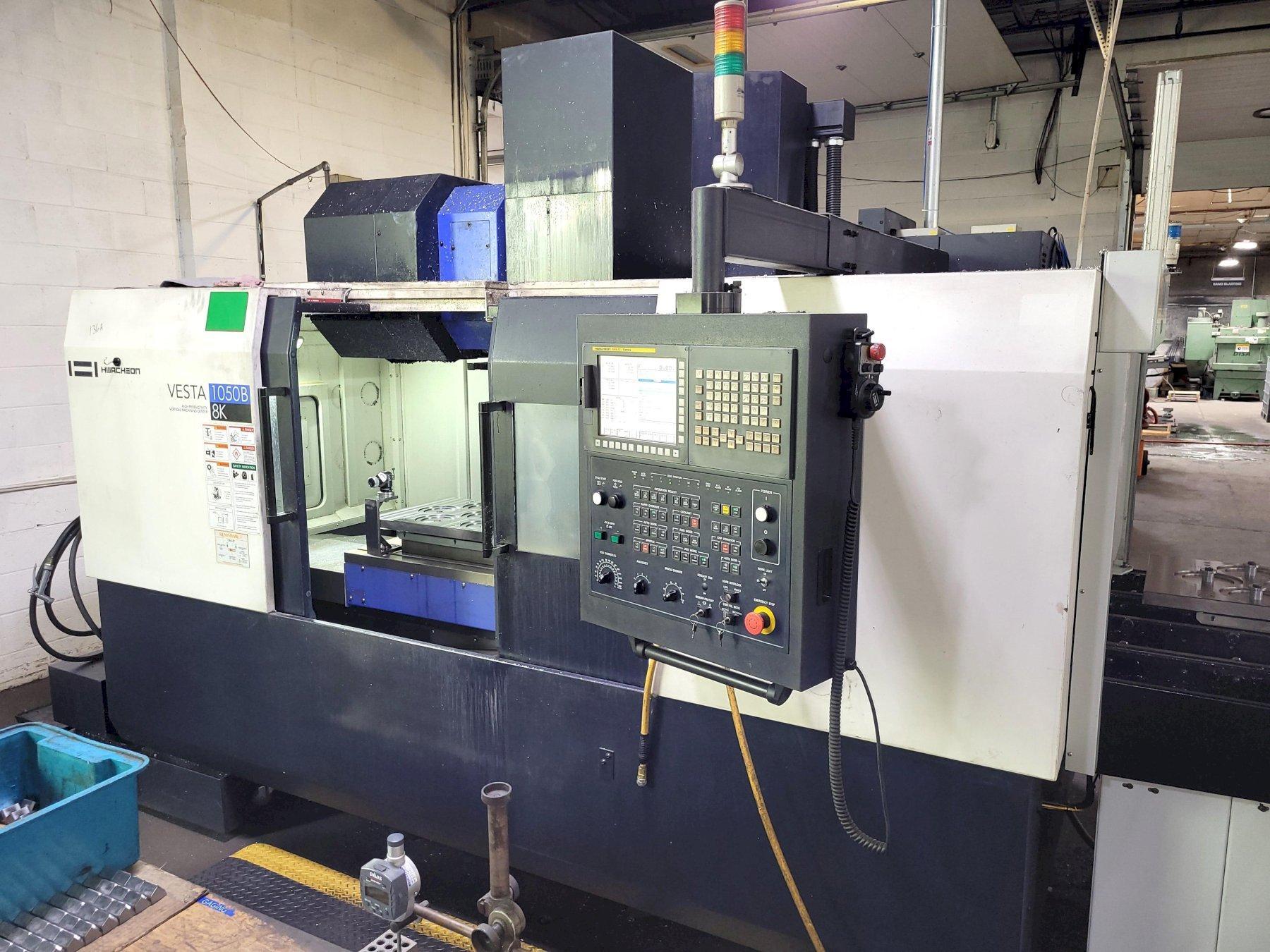

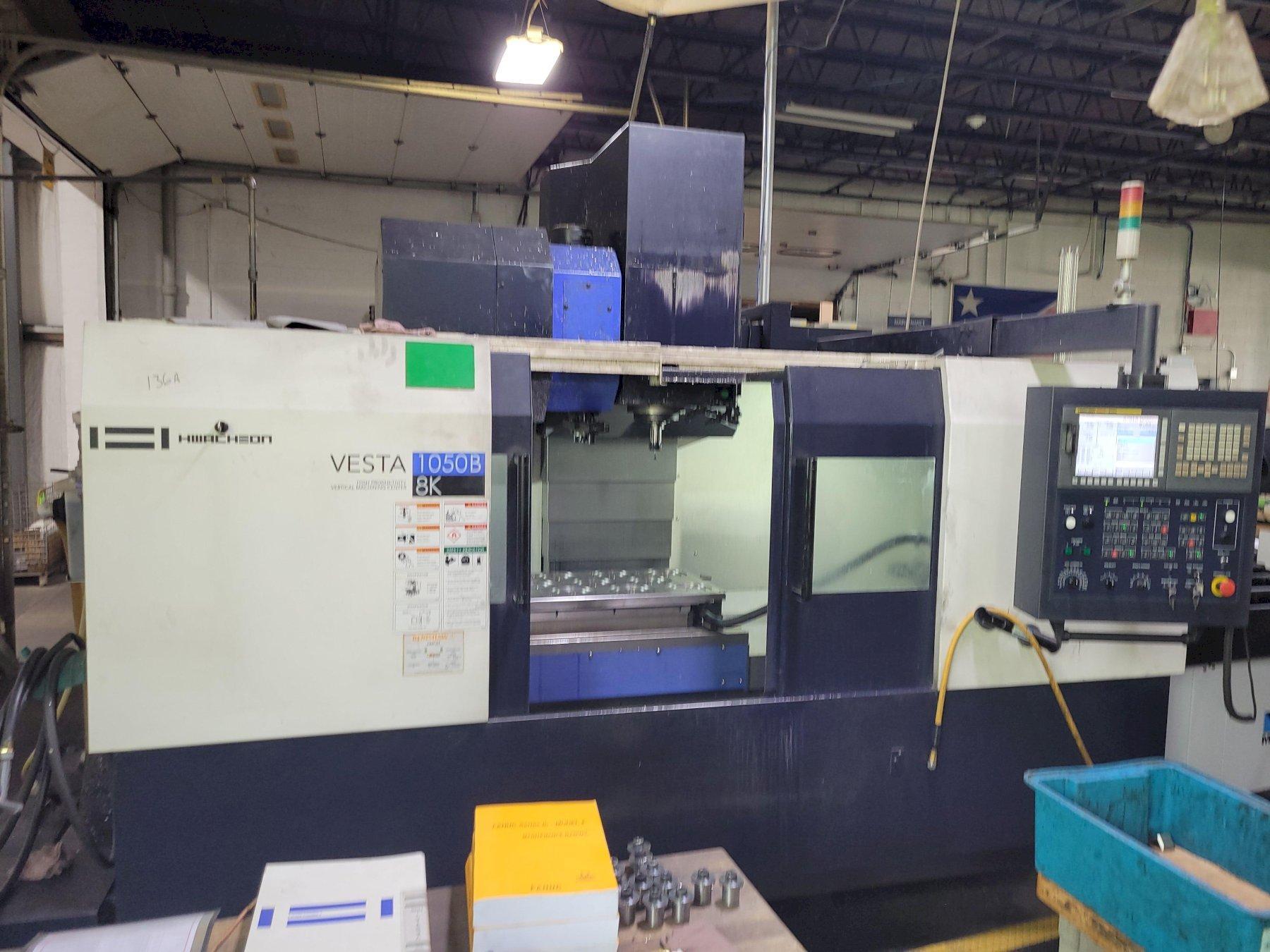

Hwacheon Model Vesta 1050B Vertical Machining Center





















Hwacheon Model Vesta 1050B Vertical Machining Center

Brand
HWACHEON

Model
Vesta 1050B

Type
Machining Centers, Vertical

Stock #
VMC105X

Condition
Used

Year
2019

Location
Lake Bluff, Illinois
United States

Request a Quote

Specifications

Table Face to Spindle End	125-725mm (4.9”-28.5”)
Column Face to Spindle Center	675mm (26.6”)

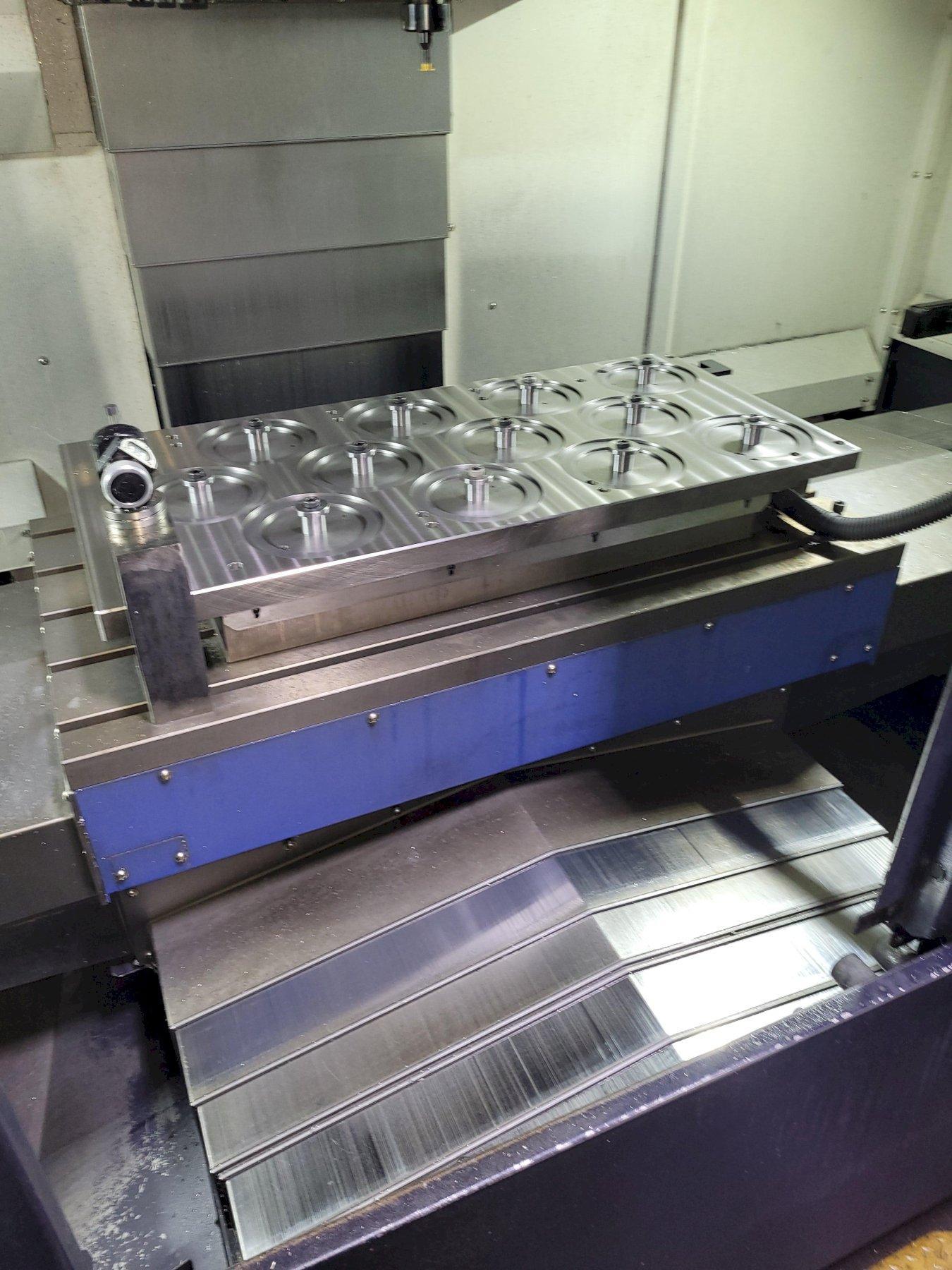

Table Surface	1150/600mm (45.3”/23.6”)
Max. Weight on Table	1,000 kgf (2,205 lbs.)

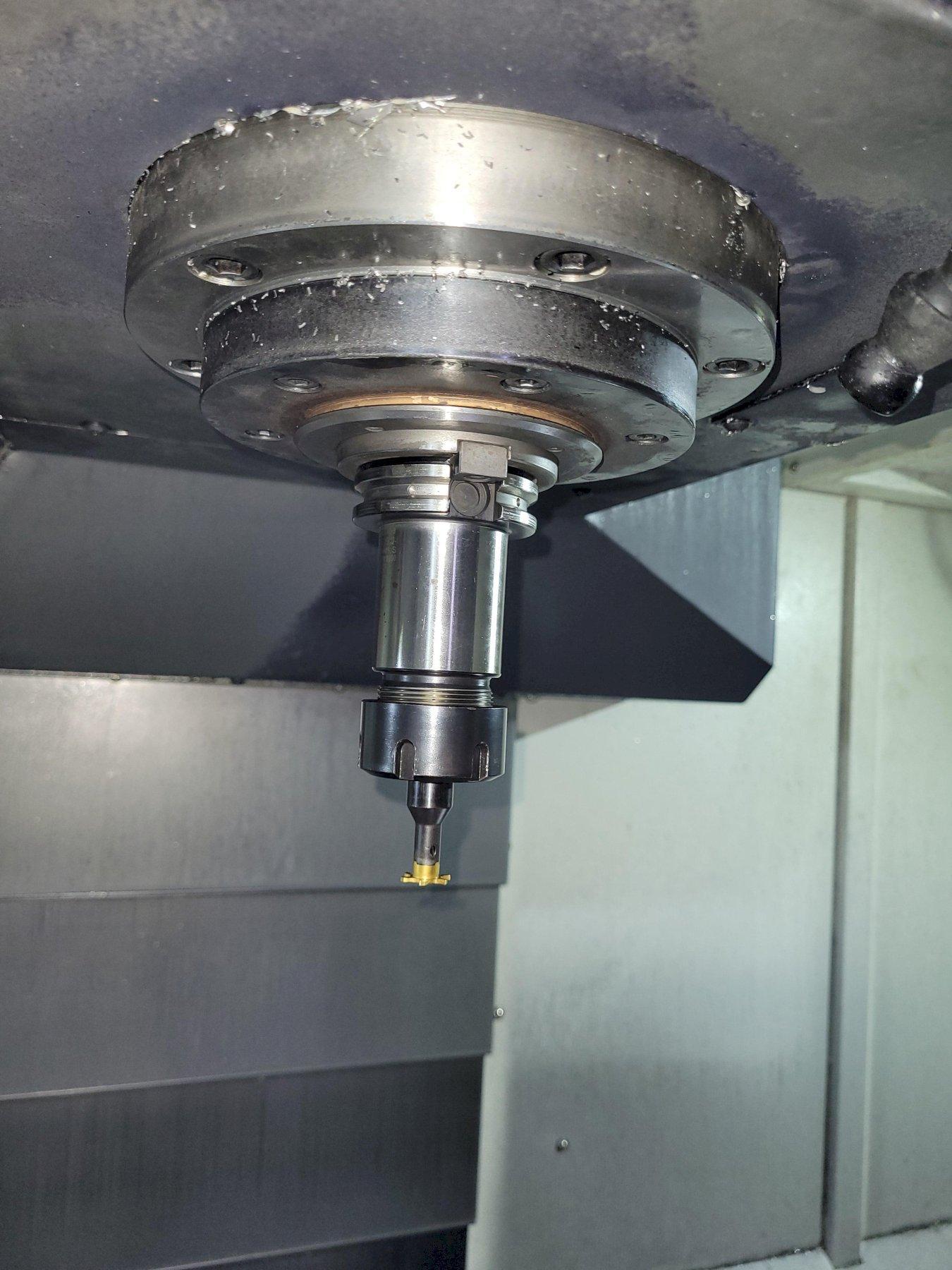

Spindle Max. Speed	8,000 RPM
Spindle Taper	CAT40
Rapid Feedrate (X/Y/Z)	24/24/18 m/min (945/945/709 ipm)
Cutting Feedrate (X/Y/Z)	10 m/min (394 ipm)
Spindle Motor	AC18.5/15 kW (25/20 hp)
Z Axis Travel	600mm (23.6”)
Machine Height	2887 mm (123.7”)
Approximate Weight	7,500 kgf (16,535 lbs.)

Equipped With

EQUIPPED WITH:

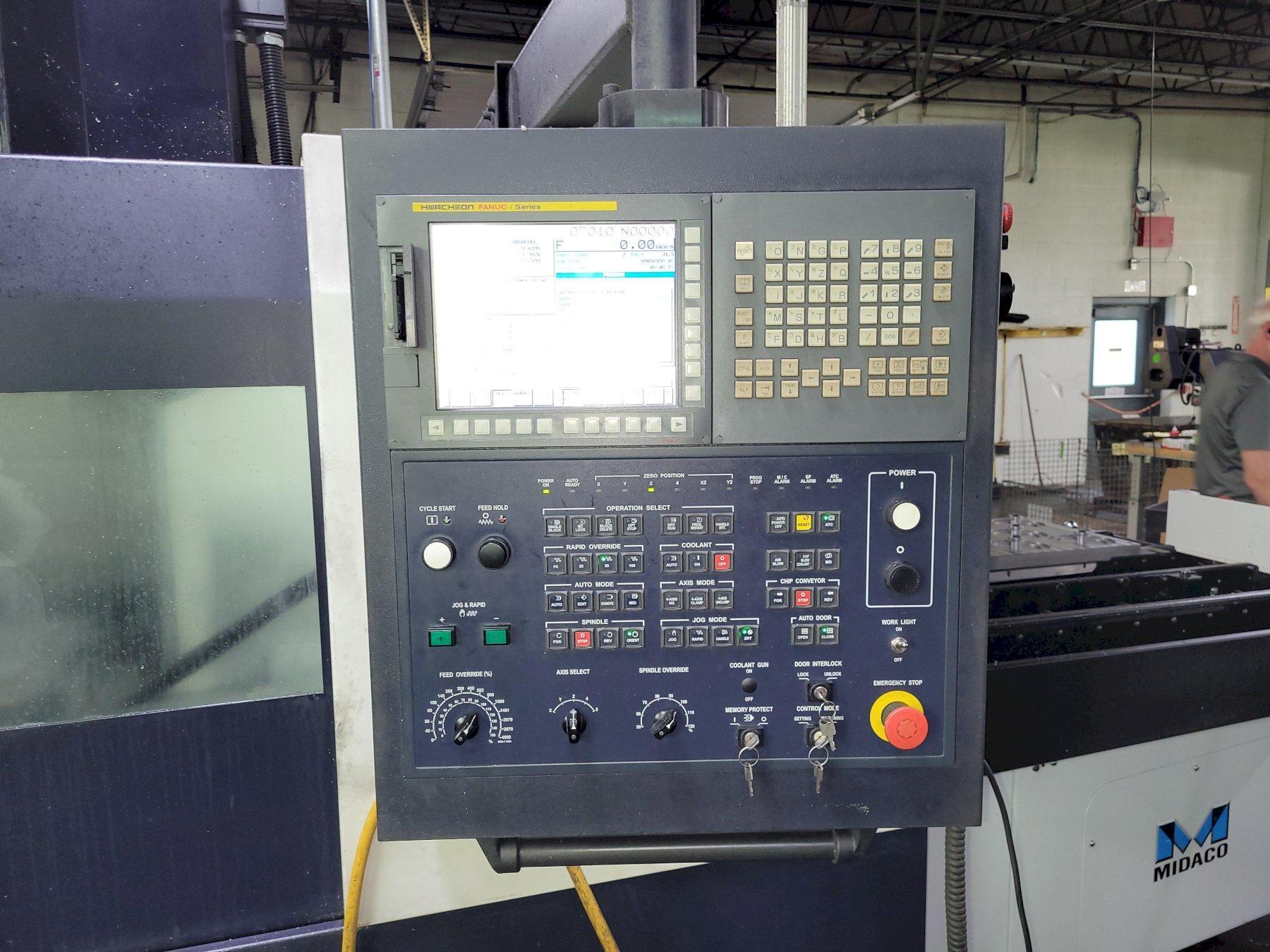

Fanuc Oi-MF CNC Controls with Full CRT and Keyboard.
Hwacheon AI Nano Contour Control (HAI).
Cutting Feed Optimization (OPTIMA).
Efficient Contour Control (HECC) Ethernet Interface.

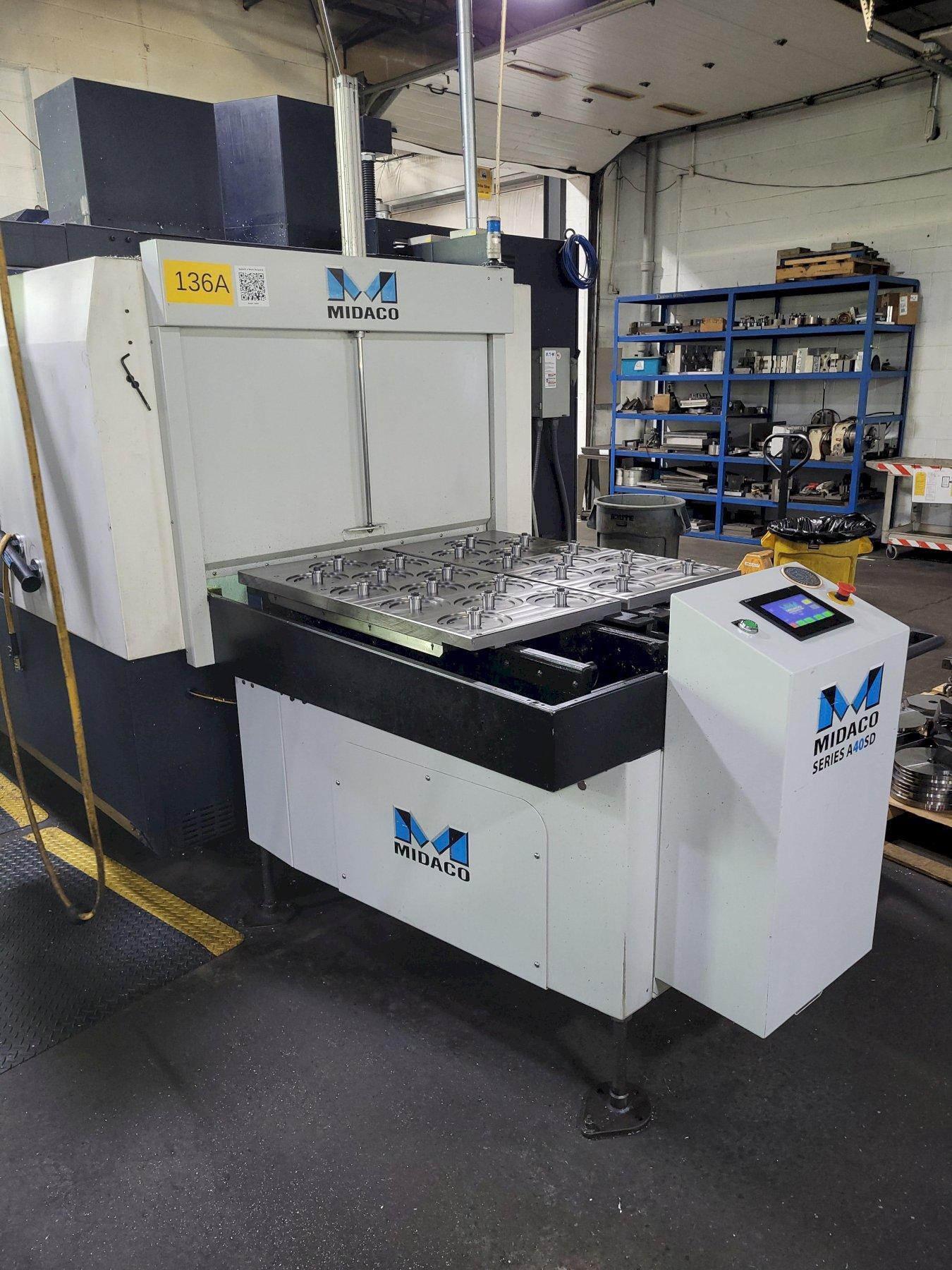

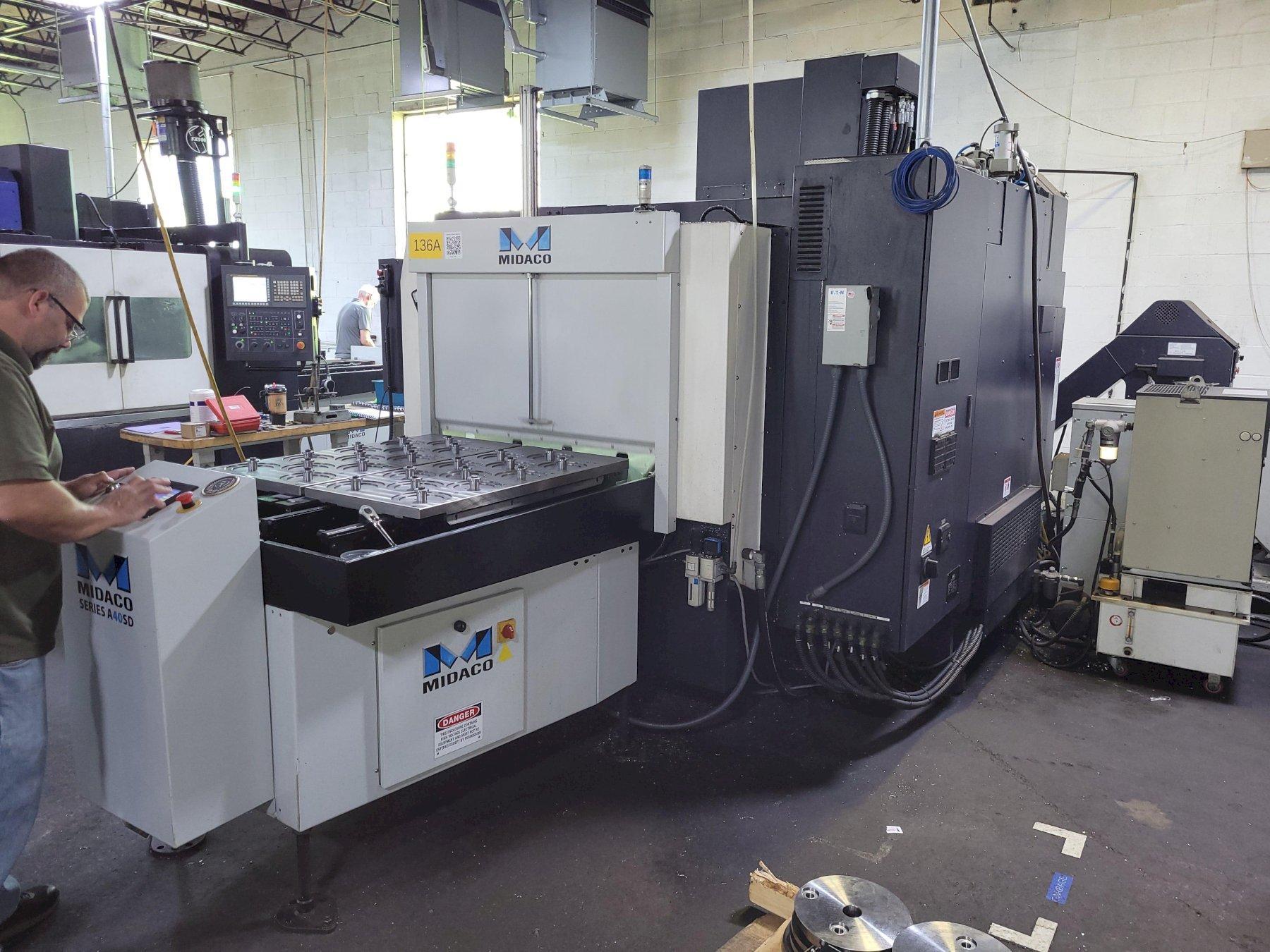

MIDACO 2 Position Pallet Changer.

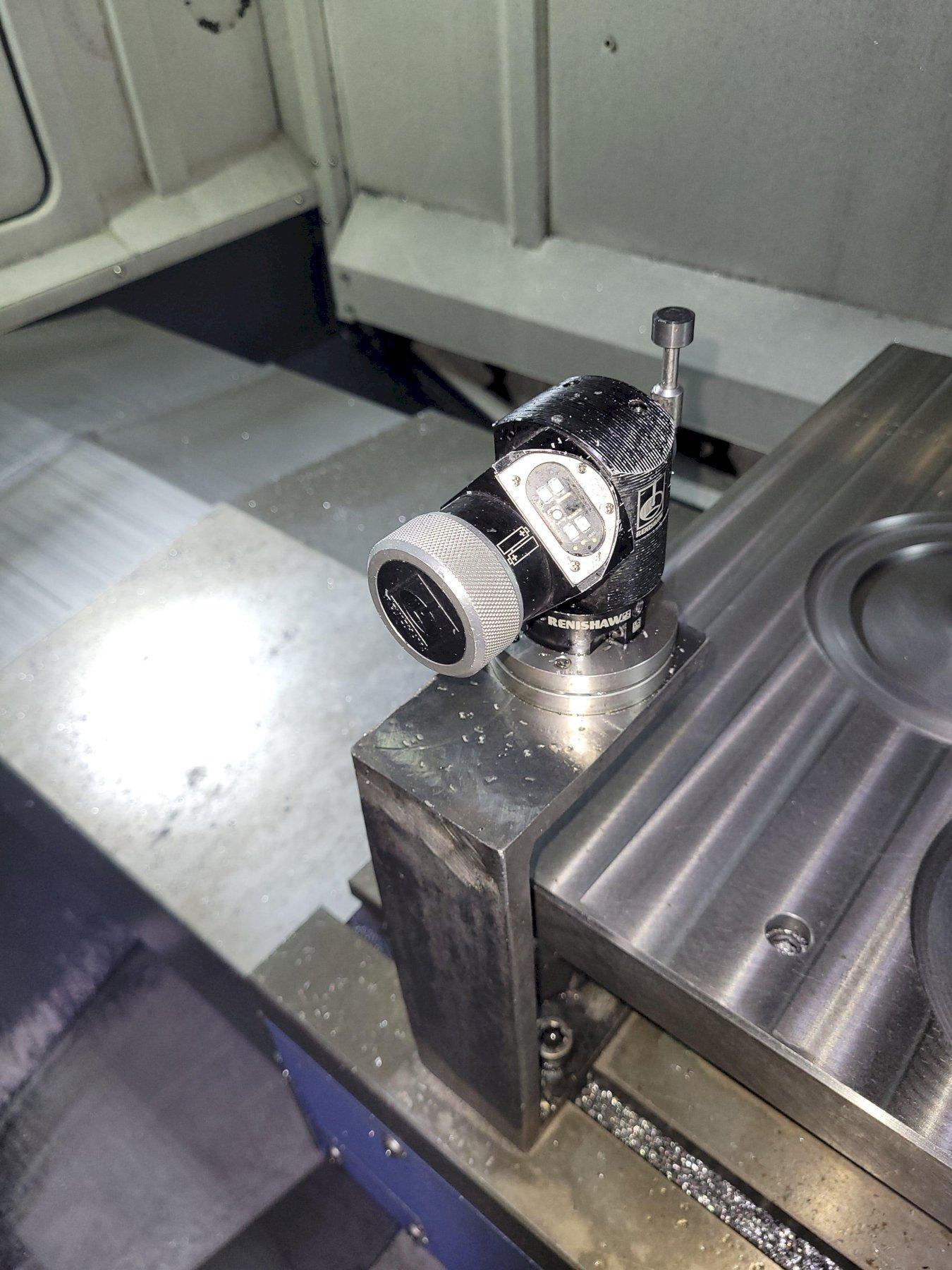

Renishaw Probing.

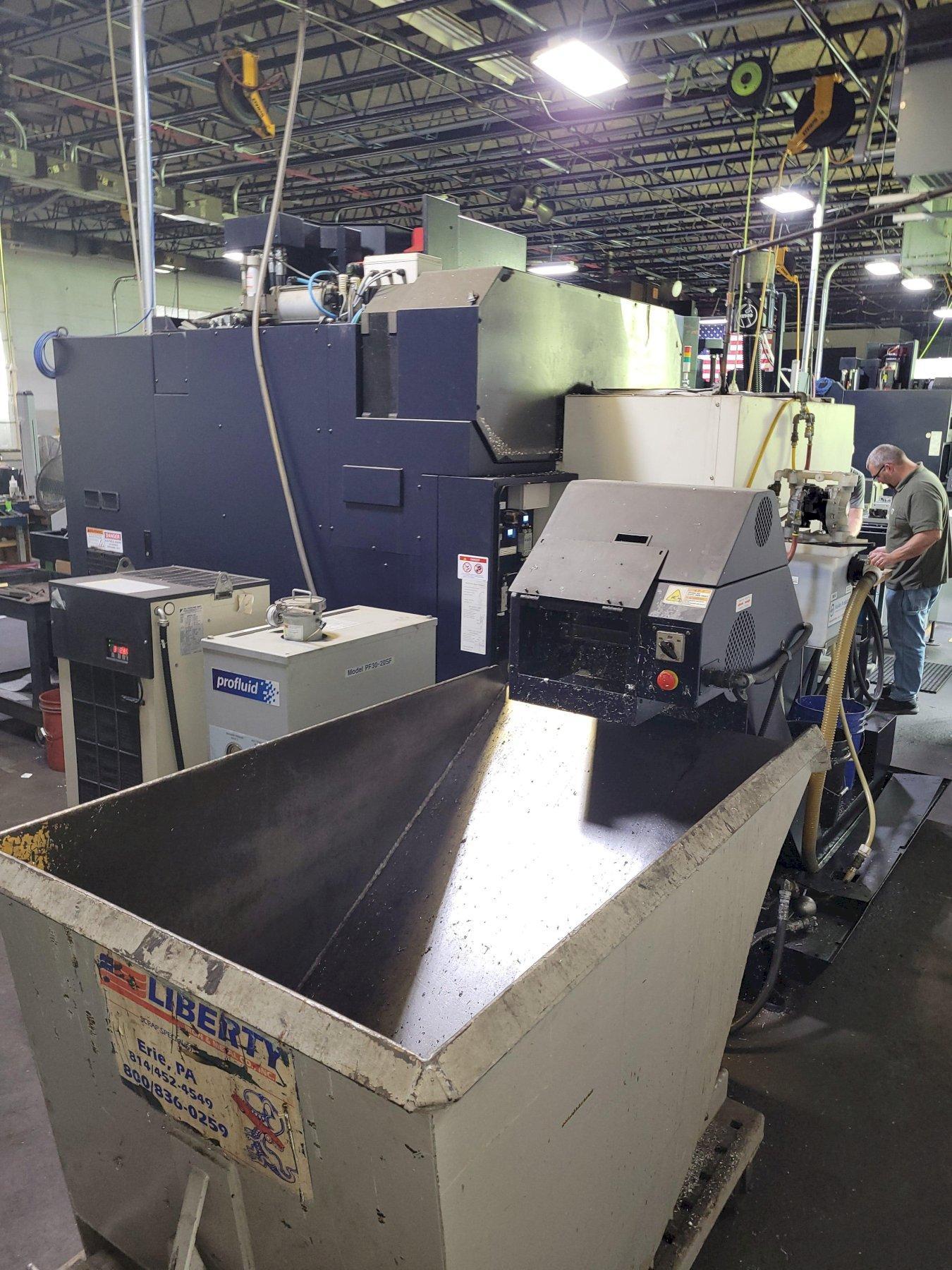

Auger Chip Conveyer.

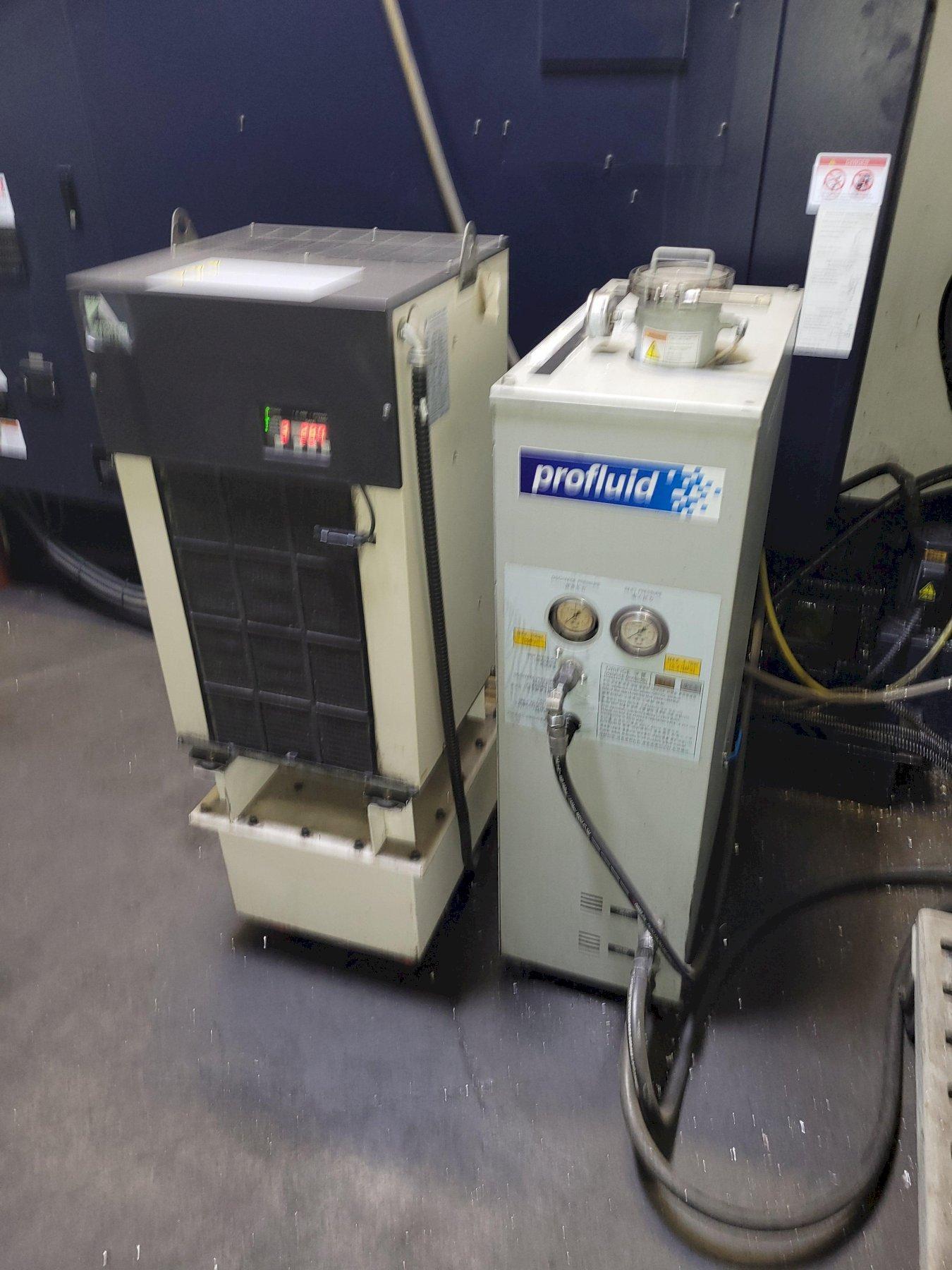

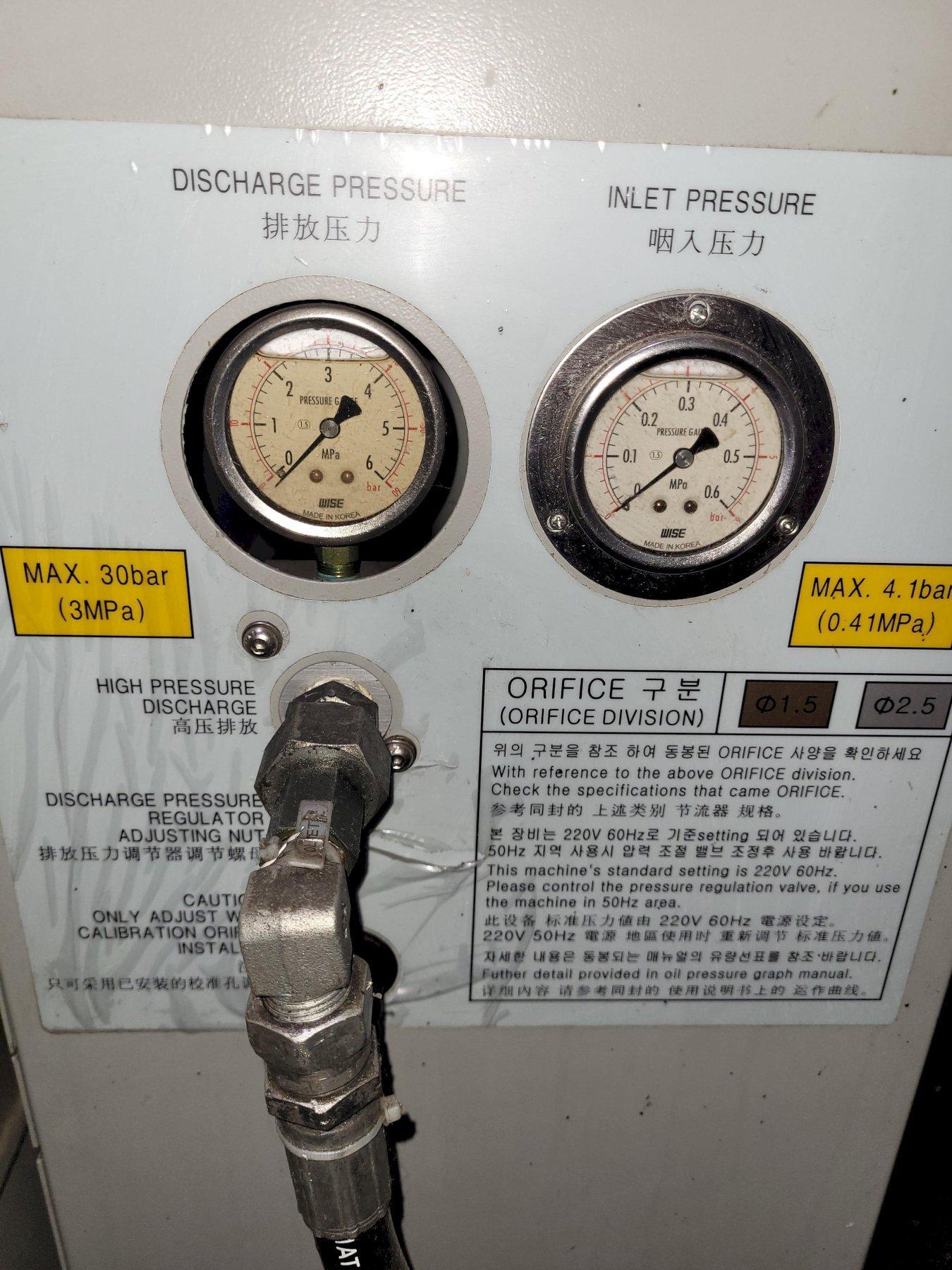

Oil Chiller.

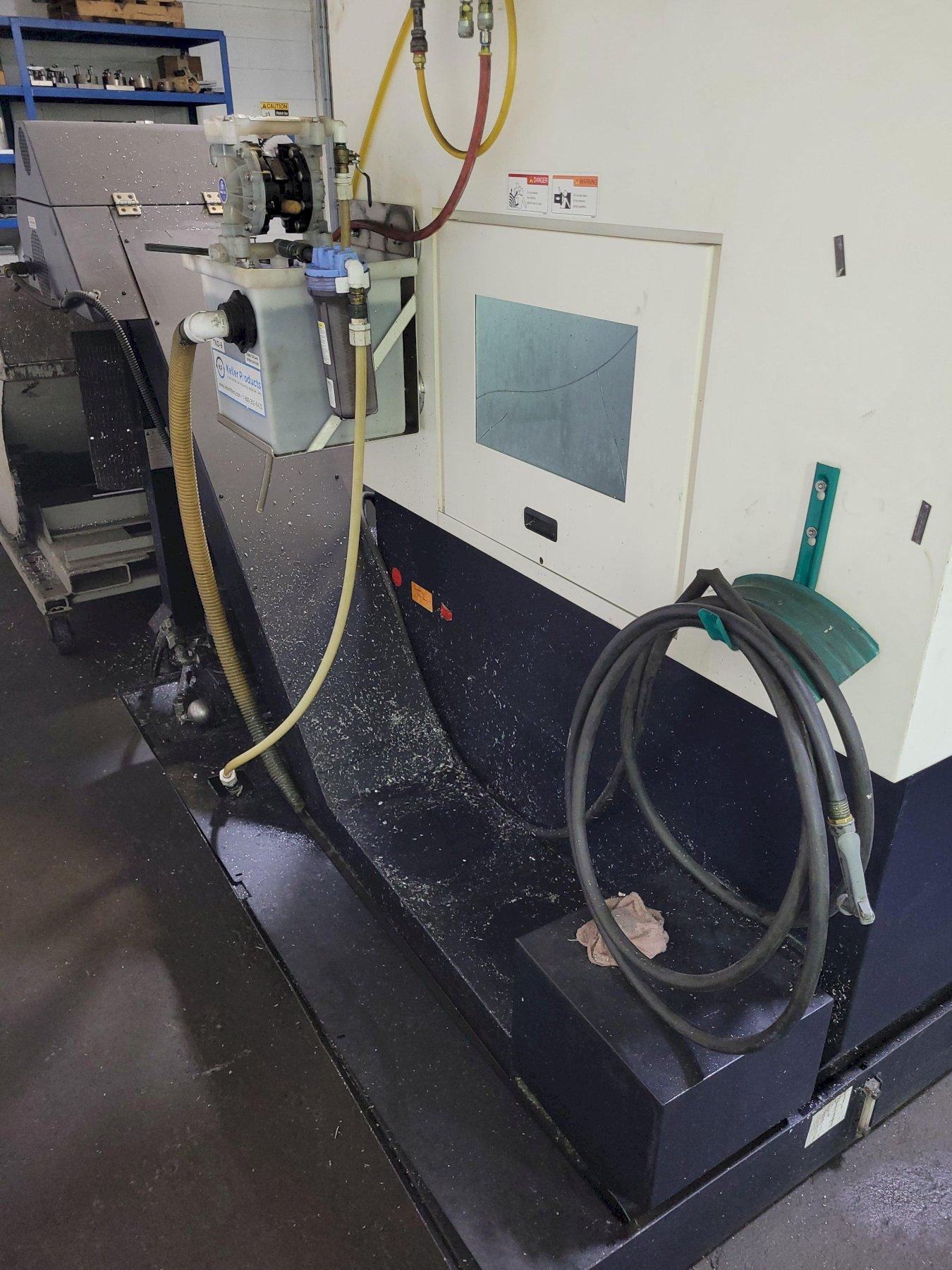

Coolant System with Chip Conveyor.
30 Position ATC.
2 Speed & Geared Headstock.
