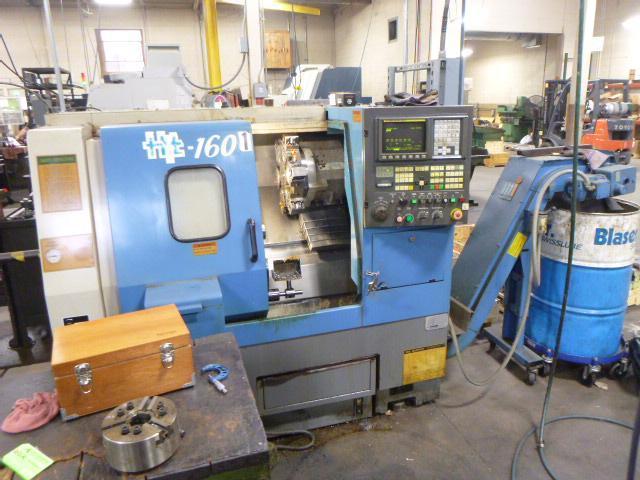

Hyundai Model HIT-160 CNC Turning Center

Brand
HYUNDAI

Model
HIT-160

Stock #
cnchyx

Condition
Used

Year
2001

Location
City Not Specified, Illinois
United States

Specifications

Maximum Swing 18.89” / 480 mm
Maximum Cutting Diameter 11.02” / 280 mm
Maximum Cutting Length 11.81” / 300 mm
Bar Capacity 1.73” / 44 mm
Spindle Nose A2-5
Spindle Speeds 60 – 5000 RPM
Turret 12-Positions
X-Axis Travel 6.29” / 160 mm
Z-Axis Travel 12.79” / 325 mm
Spindle Drive (30min/continuous) 10/7 HP / 7.5/5.5 kW
Approximate Dimensions 72” x 60” x 62” H
Approximate Weight 5100 lbs / 2300 kg

Equipped With

Fanuc 21T CNC Controls. 6.75” 3-Jaw Chuck. 12-Position Turret with (6) ID Tool Holders. Parts Catcher. Coolant. Chip Conveyor. No Tailstock. No Collet Chuck. Manuals and Drawings.

The Hyundai appears to be in good operating condition and can be inspected under power at your convenience.
