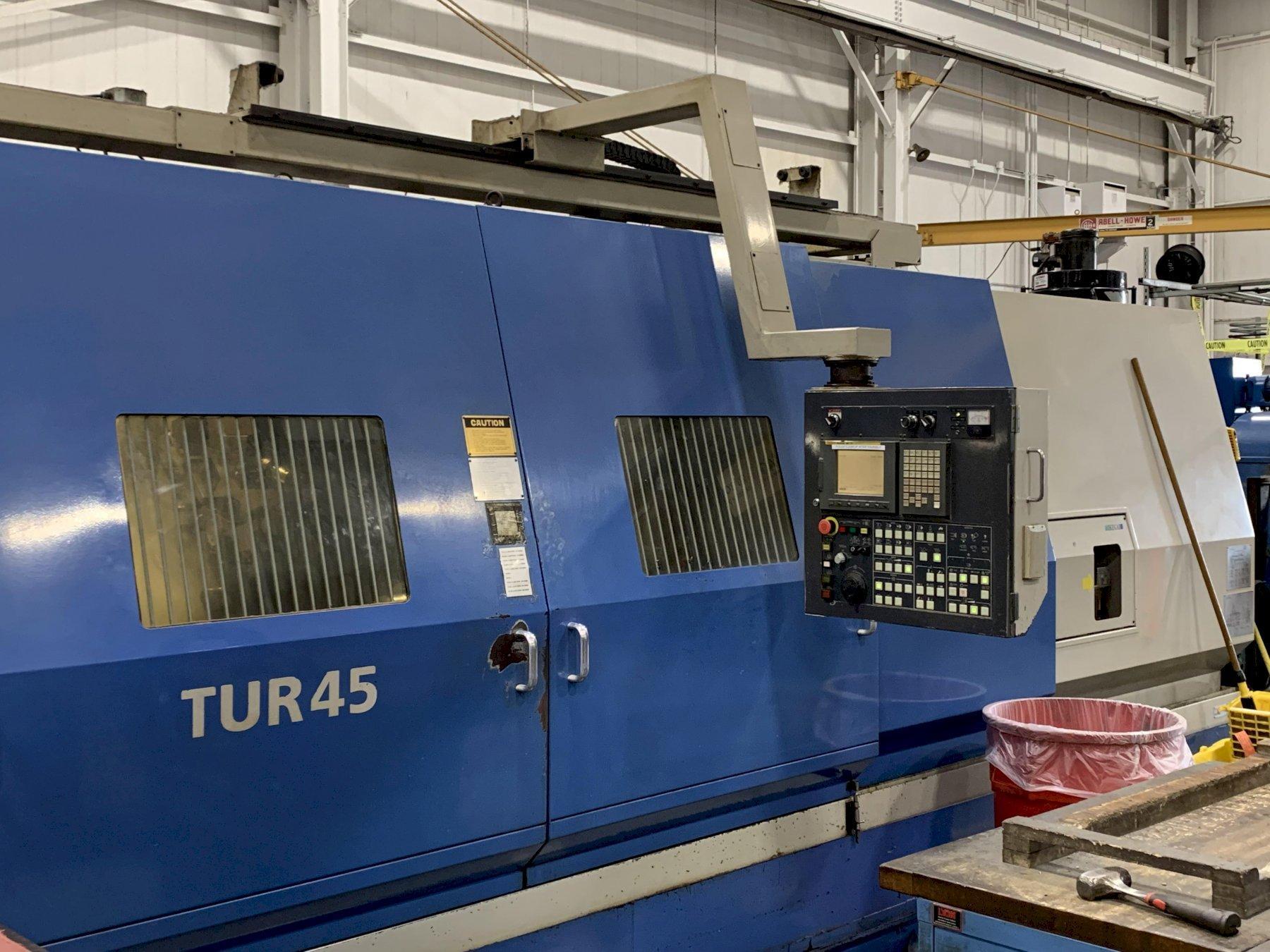

Ikegai Model TUR45/CD3000 CNC Universal Milling and Turning Center

Brand
IKEGAI

Model
TUR45/CD3000

Stock #
CNCTURX

Condition
Used

Year
1998

Location
Midwest,
United States

Specifications

Maximum Swing Over Bed 37.4 inches
Maximum Swing over Cross Slide 25.6 inches
Center Distance 118.1 inches
Maximum Turning Diameter 25.98 inches
Chuck Size (Designed to accommodate 24" Chuck) 15 inches
Spindle Nose A2-15
Hole Thru Spindle 7.1 inches
Maximum Chuck Weight Capacity 2646 pounds
Maximum Weight Capacity between Centers 6615 pounds
Spindle Speeds (2 Ranges) 6 -1200 RPM
Main Motor 60/50 HP
Z-Axis Travel 122 inches
X-Axis Travel 16.1 inches
Turret Positions 12
Tailstock Quill Travel 5.9 inches
Tailstock Quill Taper 6MT
Live Milling Spindle Speed 15 - 1500 RPM
Live Milling Motor 15/10 HP
Approximate Dimensions 107"FB x 290"LR x 107"H
Approximate Weight 36500 pounds
* Temporary Specifications Subject to Verification

Equipped With

Fanuc 18i-T CNC Controls. 15” 3-Jaw Chuck. Hydraulic Steady Rest. Live Milling. C-Axis. Tailstock. Chip Conveyor and Coolant System. Large Quantity of Static and Live Tool Holders. Manuals and Drawings. Approximately 12,498 hours.

The Ikegai Universal Milling and Turning Center appears to be very well maintained and can be inspected under power at your convenience.
