Brand
JOHNFORD
Model
DMC-2100H
Type
Mills, Bridge
Stock #
VMC278
Condition
Used
Year
2000
Location
Lake Bluff, Illinois
United States
| Distance Between Columns | 51.2” |

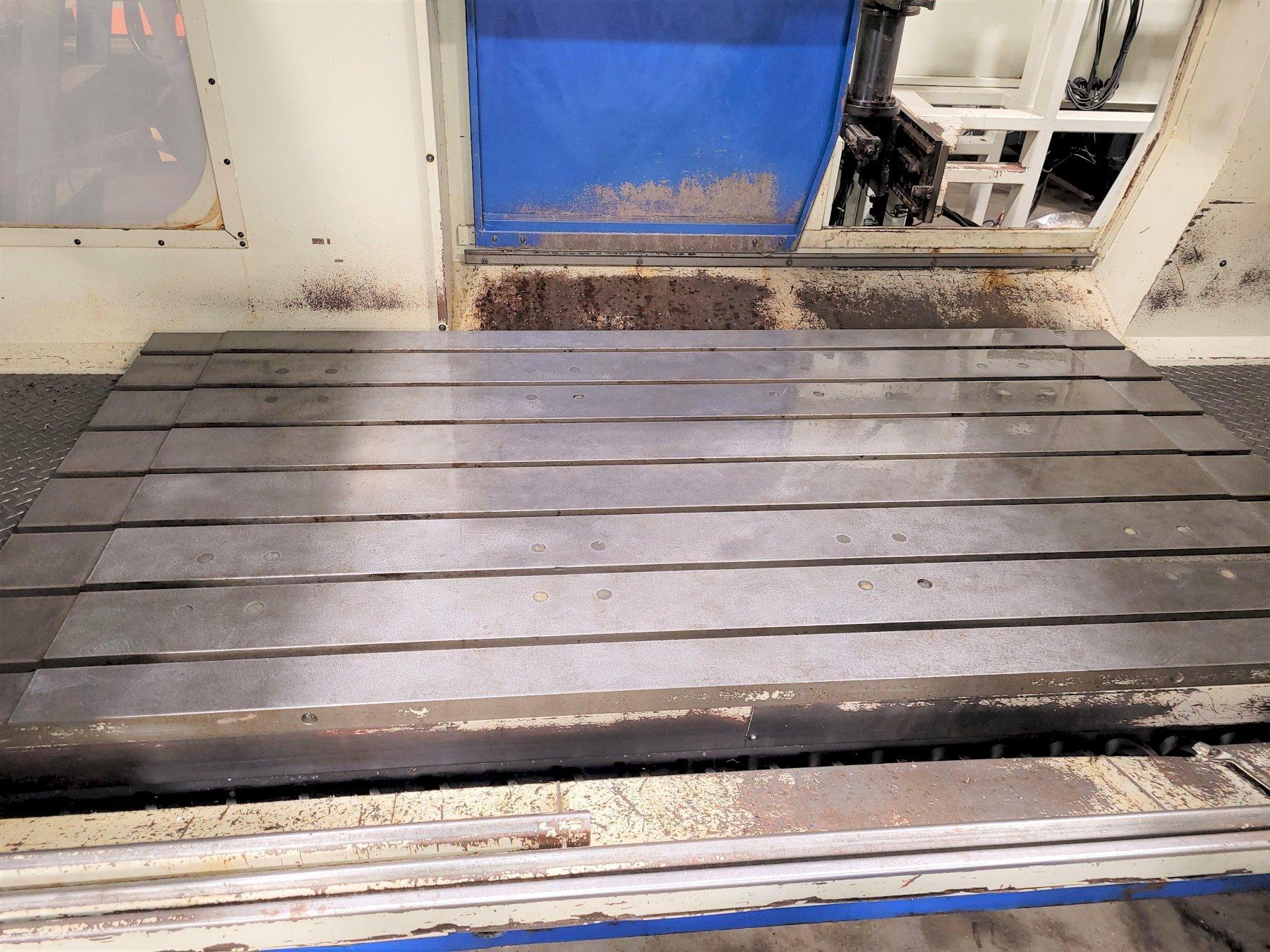

| Table Size | 86.6” x 43.3” |
| X-Axis Travel | 80.7 |
| Y-Axis Travel | 43.3” |
| Z-Axis Travel | 31.5” |
| Spindle Nose to Table | 5.9” – 37.4” |
| Spindle Taper | CAT 50 |
| Spindle Speed | 6,000 RPM |
| Spindle Drive (2-Speed Geared Head) | 25 HP |
| Rapid Transverse Rates (X/Y-Axis) | 590 IPM |
| Rapid Transverse Rates (Z-Axis) | 472 IPM |
| Cutting Feed Rate (X-Y & Z-Axis) | .039 – 393.7 IPM |

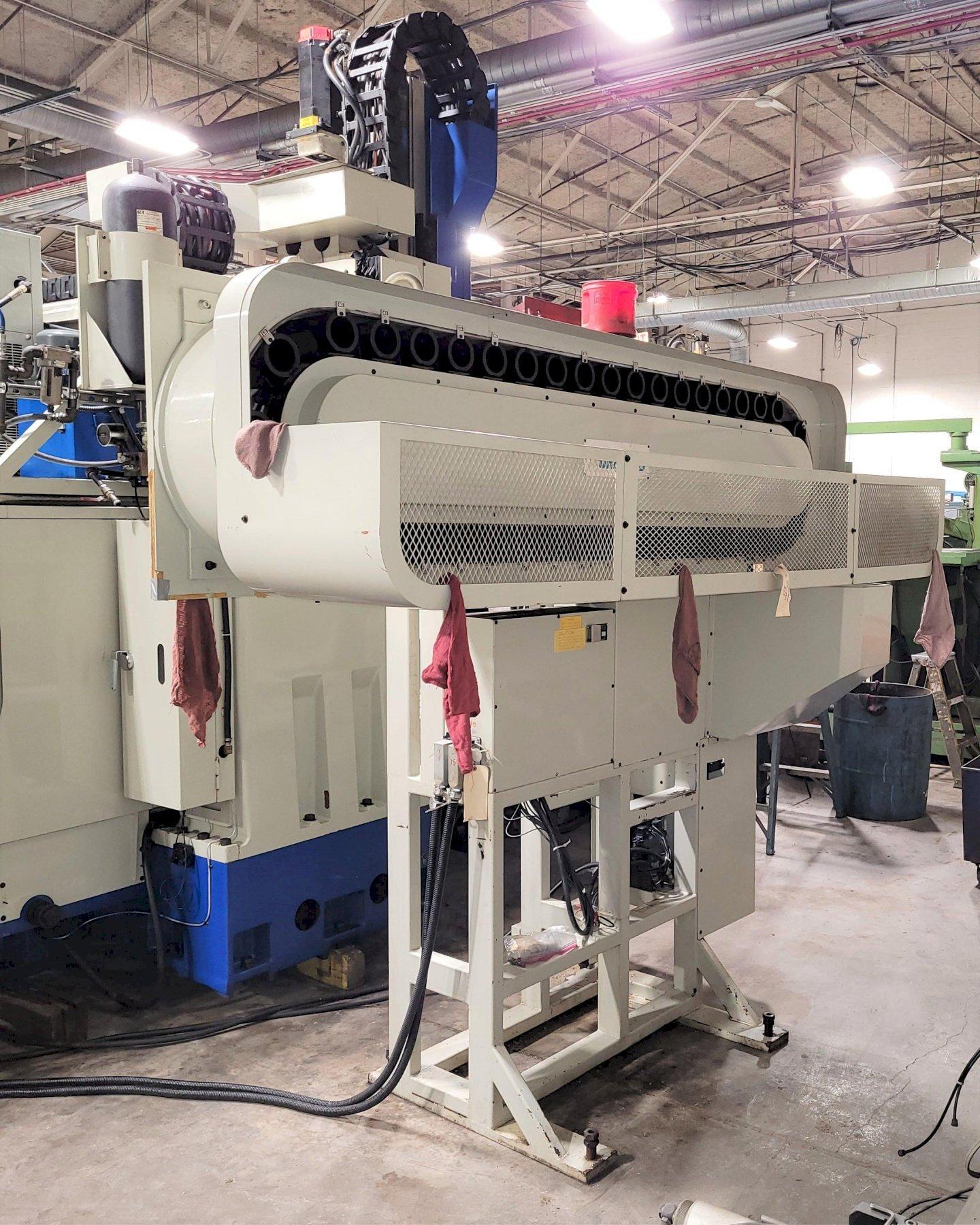

| ATC Positions | 40 |
| Maximum Tool Diameter (Adjacent Pockets) | 5.3” |
| Maximum Tool Diameter | 7.8” |
| Maximum Tool Length | 15.7” |
| Maximum Tool Weight | 33 Lbs. |
| Maximum Table Loading Capacity | 13,200 Lbs. |
| Approx. Machine Dimensions | 18’ L x 8’4” W x 12’2” H |
| Approx. Weight | 52,000 Lbs. |
EQUIPPED WITH:

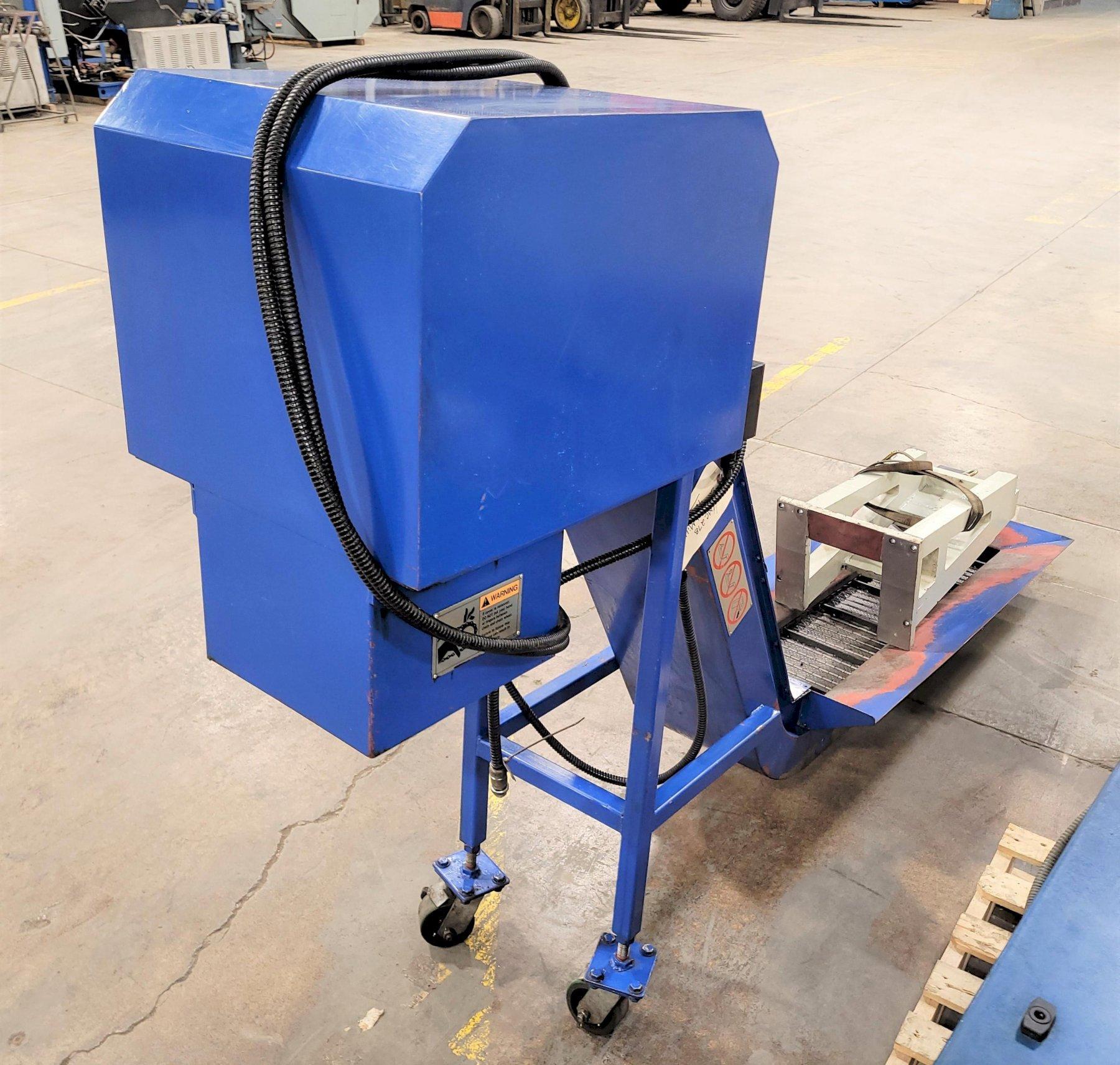

Fanuc 18M-C CNC Control with Remote Handwheel. Rigid Tapping. CAT 50 Spindle. 40-Position ATC. Oil Spindle Cooler. Automatic Lubrication. Dual Chip Augers. Chip Conveyor Oil Mist Coolant System. Standard Flood Coolant. Air Blast. Heat Exchanger. Full enclosure. Automatic Door. Manuals and Drawings.
