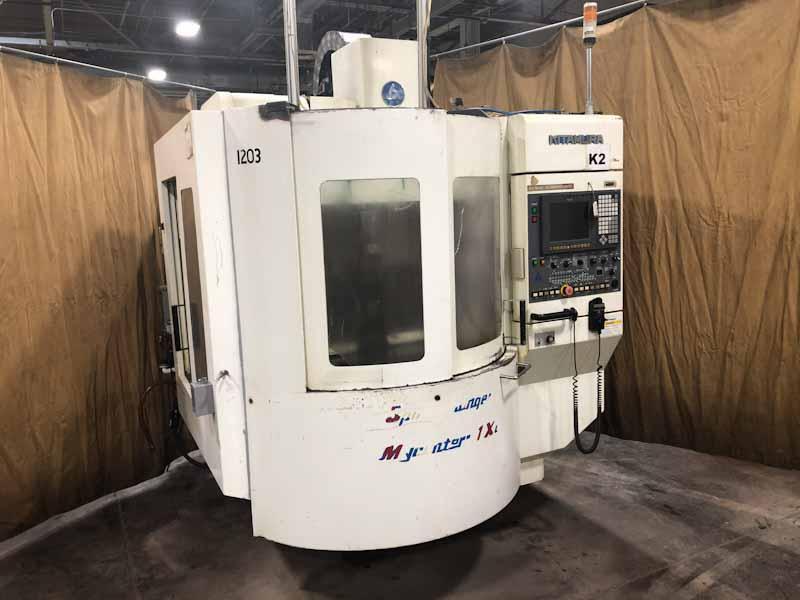

Kitamura MyCenter 1X Sparkchanger 2 Pallet Vertical Machining Center

Brand
KITAMURA

Model
Mycenter 1Xi

Stock #
VMC256

Condition
Not specified

Year
2001

Location
Lake Bluff, Illinois
United States

Specifications

Table Working Surface (Z) 14" x 22"
Workpiece Change Set-Up 0 / 180°
Workpeice Change Time 2.9 seconds (approx.)
Spindle Face to Table Surface 2.3” – 20.4”
Table Load Capacity per Side 220 pounds
Longitudinal Travel (X-Axis) 20 inches
Cross Travel 14 inches
Vertical Travel (Z-Axis) 16 inches
Rapid Traverse Rate (X & Y Axis) 1969 RPM
Rapid Traverse Rate (Z Axis) 1417 RPM
Tool Storage Capacity 20
Spindle Horsepower 10/7.5 HP
Max Spindle Speed 15,00 RPM
Spindle Taper 30 NST
Approximate Machine Dimensions 76” x 115”
Approximate Machine Height 110 inches
Approximate Machine Weight 15900 pounds

Equipped With

Yasnac CNC Control with MPG Remote. Serial Port. (2) 14 x 22” Pallet Spark Changer (Built in Pallet Changer) with Pneumatic Divider. 15,000 RPM Max Spindle Speed. 20 Station Automatic Tool Changer. Chip Conveyor. Coolant System. Oil Chiller.  Renishaw OMM Optical Module and MI-12 Interface (No Probe).
