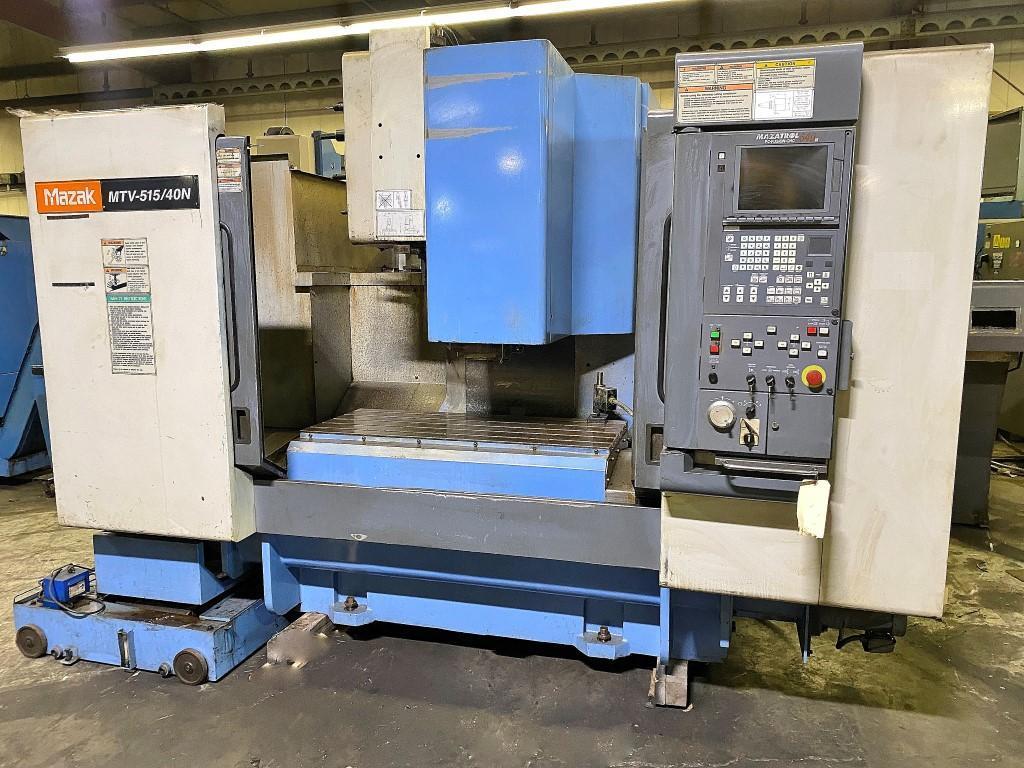

MAZAK MTV515/40N VERTICAL MACHINING CENTER

Brand
MAZAK

Model
MTV515/40N

Stock #
VMC515X

Condition
Used

Year
1999

Location
Brook Park, Ohio
United States

Specifications

Table Size 51.18" x 21.65"
Table Load Capacity 3,300 lbs.
Table Top to Spindle Nose 7.87" - 29.92"
X-Axis Travel 41.32"
Y-Axis Travel 20.07"
Z-Axis Travel 22.04"
Spindle Taper CAT #50
Spindle Speed 25-6,000 RPM
Spindle Torque Rating 559 ft./lbs.
Spindle Motor 30 Min. / Cont. 25 / 20 HP - 2 Ranges
Toll Magazine Capacity 30 Position ATC
Max. Tool Diameter/ Length/ Weight 10.23" / 15.74" / 44 lbs.
Tool Change Time (Chip to Chip) 5.5 Seconds
Rapid Transverse X & Y / Z 1023 IPM / 787 IPM
Machine Dimensions 125" x 136" x 112"
Machine Weight 19,624 lbs.

Equipped With

Equipped with:
Mazatrol 640 Fusion CNC Control. Manual Pulse Generator. EIA/ISO Input Function. Inch/ Metric Converson. Coolant System with Chip Conveyor.
