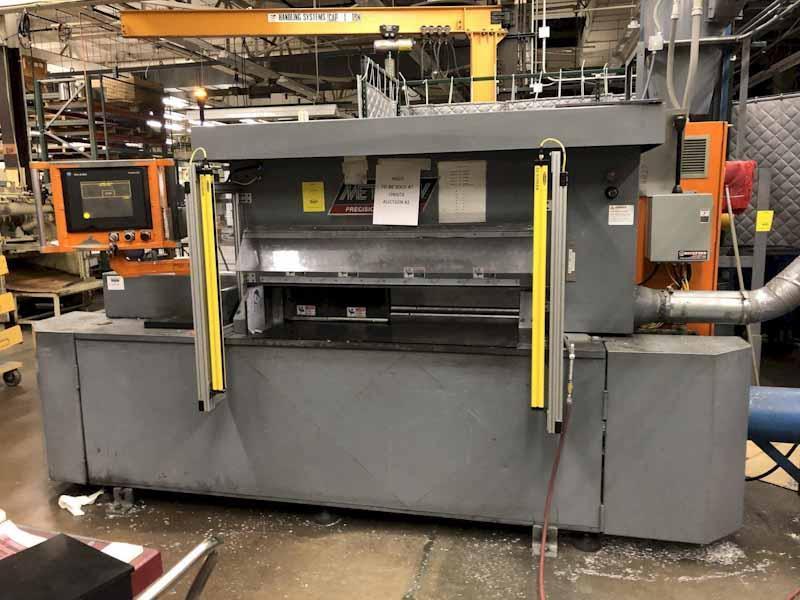

Metlsaw Model CS-4 Fully Automatic Programmable Non Ferrous Saw

Brand
METLSAW

Model
CS-4

Type
Saws

Stock #
SAC54X

Condition
Used

Year
2000

Location
Warren, Michigan
United States

Specifications

Max Dia. Blade 28 inches
CNC Control yes
Type of CNC Control Allen Bradley DH485
Maximum Material Width 48 inches
Maximum Material Thickness 8 inches
Programmable Backgauge Range 96 inches
Backgauge Speed 0 - 200 IPM
Maximum Saw Blade Diameter 28 inches
Cutiing Speed Up to 500 sq.in/min (aluminum)
Carriage Feed Rate 0 - 600 IPM
Blade Motor 30 HP
Voltage 480 volt 3 phase (80 amps)
Backgauge / Carriage Drive DC Servo Motor
Air Requirements 30 CFM
F.O.B Warren, MI

Equipped With

Allen Bradley DH485 PLC and Panelview 1000 programmable controller. Programmable precision backguage automatically feeds to 96” (maximum). Two sets of safety light curtains. Chip collector system.  Cuts solids, extrusions, tubes or rounds. Automatic fast forward blade travel. Universal clamping for single or bundle cutting. Variable cutting speed according to type & thickness of material. Servo controlled carriage drive provides smooth, finely controlled cutting speeds. Variable cutting lengths allow very small pieces to be cut as efficiently as large pieces. CRT display shows actual position of backgauge at all times. Automatic proportional speed control (automatically adjusts carriage traverse speed to thickness of material).

Cleaned, cycled, guaranteed to be in good working condition.
