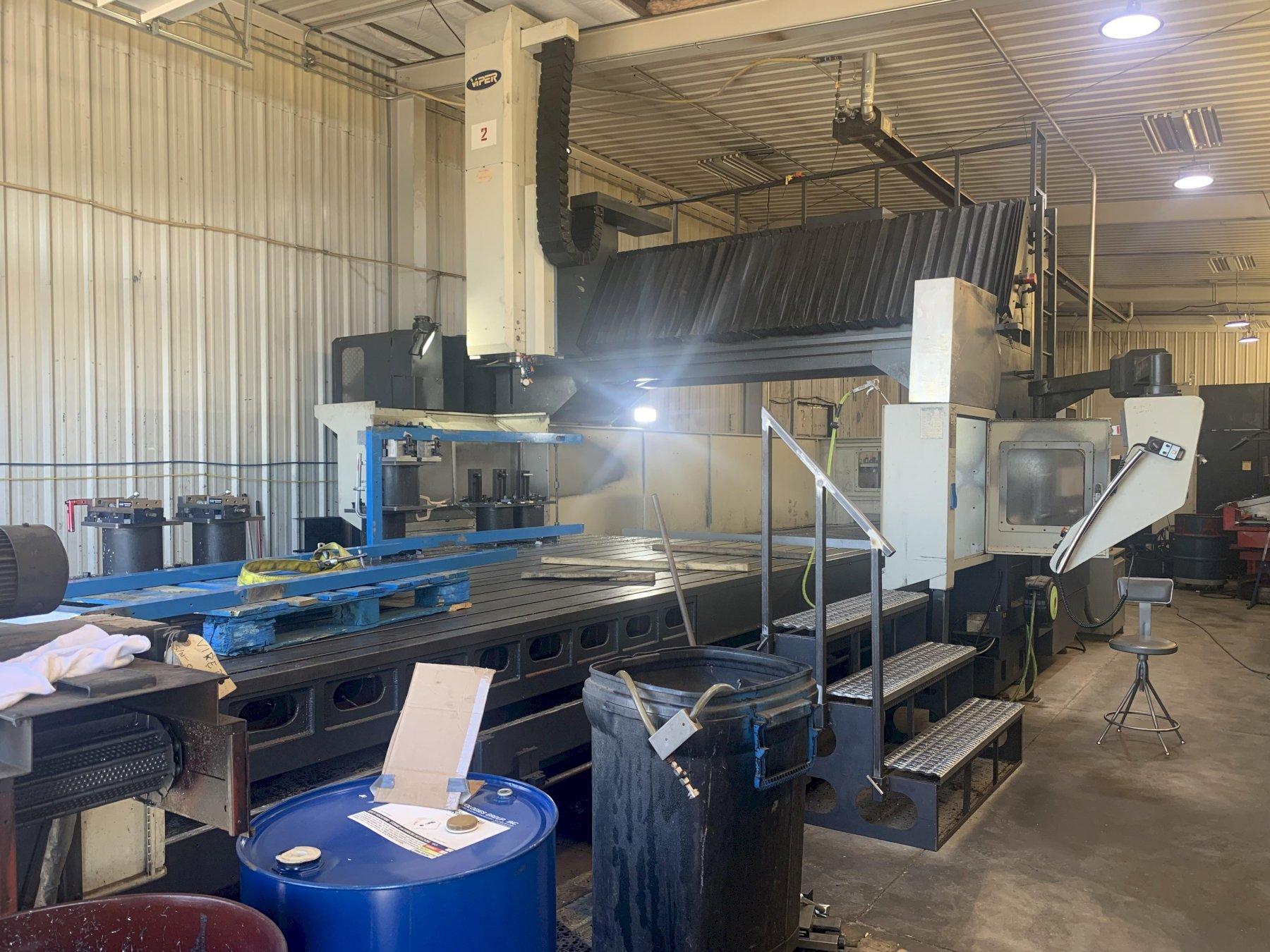

Mighty Viper Model PRW-5340 CNC Vertical Bridge Type Machinery Center

Model
PRW-5340

Stock #
VMC5340X

Condition
Used

Year
2006

Location
City Not Specified,
United States

Specifications

Table Working Surface 204.72” X 118.11”
Table Load Capacity 35,273 LBS.
Longitudinal Travel (X-Axis) 200.79”
Cross Travel (Y-Axis) 133.86”
Vertical Travel (Z-Axis) 42.13”
Distance Between Columns 140.16”
Cutting Feed Rate, All Axes 196 IPM
Rapid Transverse Rate, All Axes 393 IPM
Tool Storage Capacity 60 TOOLS
Spindle Horsepower 35 HP
Spindle Speeds Range 6,000 RPM
Spindle Taper CAT-50
Overall Dimensions 528” X 291” X 168” HT
Approx. Weight – Net 158,590 LBS.

Equipped With

EQUIPPED WITH:

Fanuc 21iMB / RS-232 Interface. PCMCiA Card Slot. Remote Manual Pulse Generator. 60 ATC. Full Splashguard / Higher Guarding Than Standard for CTS. Auto Lube System, Coolant System. Spindle Chiller, Work Light. Air Blast Through Spindle. Spindle Oil Cooler with Lift-Up Bracket. Operation Finish Lamp, Handy Coolant Gun. 2 Coolant Nozzles & One Air Nozzle on Spindle. Transformer.
