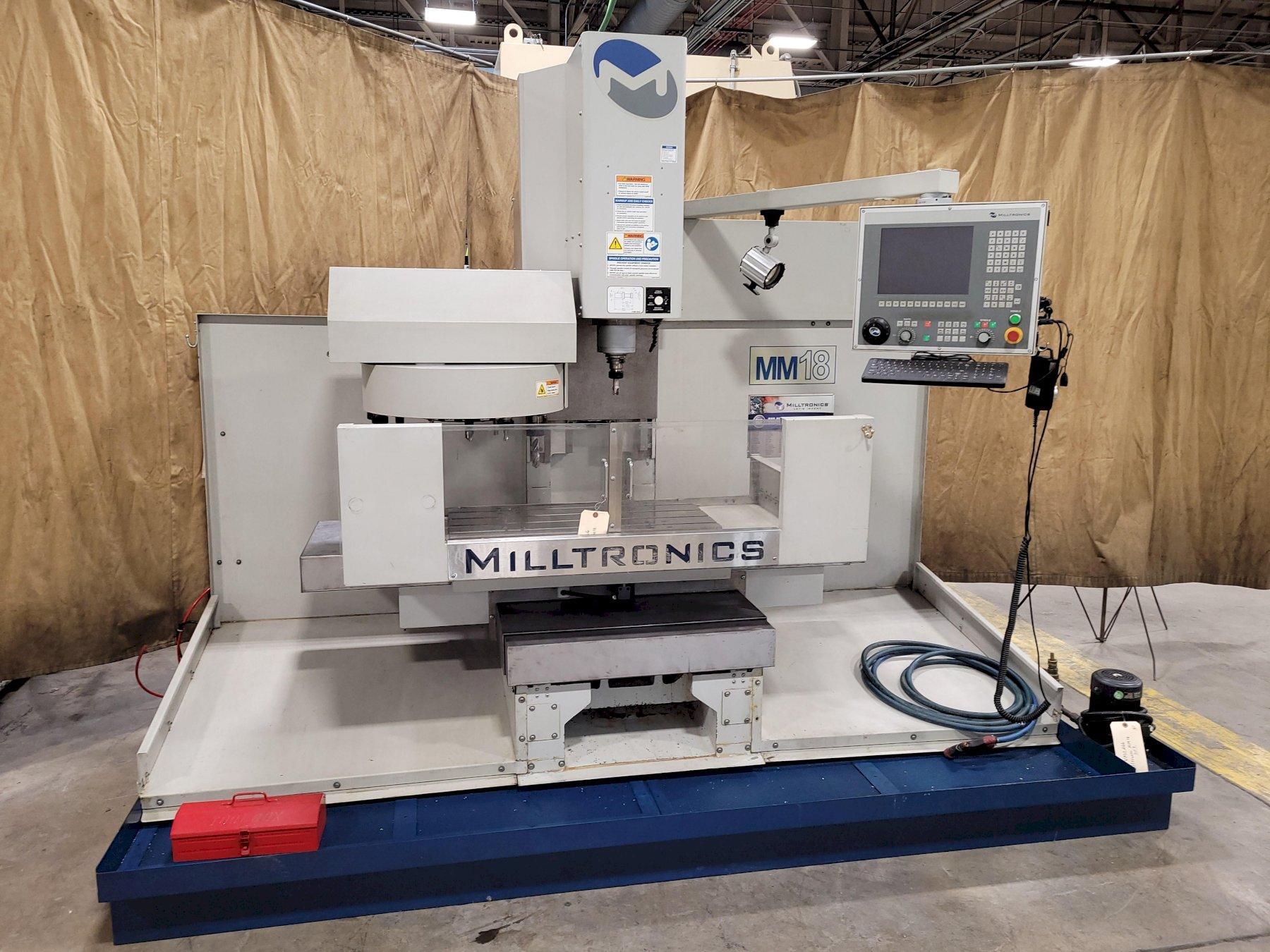

Milltronics Model MM18 CNC Toolroom Vertical Machining Center

Model
MM18

Stock #
vmc266

Condition
Used

Year
2014

Location
Lake Bluff, Illinois
United States

Specifications

Table Size 35" x 16"
X-Axis Travel 30 inches
Y-Axis Travel 17 inches
Z-Axis Travel 18 inches
Table Load Capacity 1000 pounds
Distance from Spindle to Table Top 4" - 22"
Distance from Column to Spindle Center 18 inches
Spindle Taper CAT 40
Spindle Speeds 50 - 8000 RPM
Spindle Drive (Single Speed) 12/10 HP
Number of ATC Stations 16
Max Tool Diameter 4 inches
Max Tool Length with(out) Table Guards 8" with / 11" without
Max Tool Weight 10 pounds
Rapid Traverse Rate (X,Y) 500 IPM
Rapid Traverse Rate (Z) 300 IPM
Approximate Weight 7000 pounds

Equipped With

Milltronics 8200-B CNC Control. Conversational Programming. Rigid Tapping. Manual Pulse Generator. 16-Position Automatic Tool Changer. Coolant System. Splash Guards. Automatic Lubrication System.

The Milltronics is being offered Cleaned and Cycled with a 30-Day Return Privilege Guarantee. It can be inspected under power on our floor.
