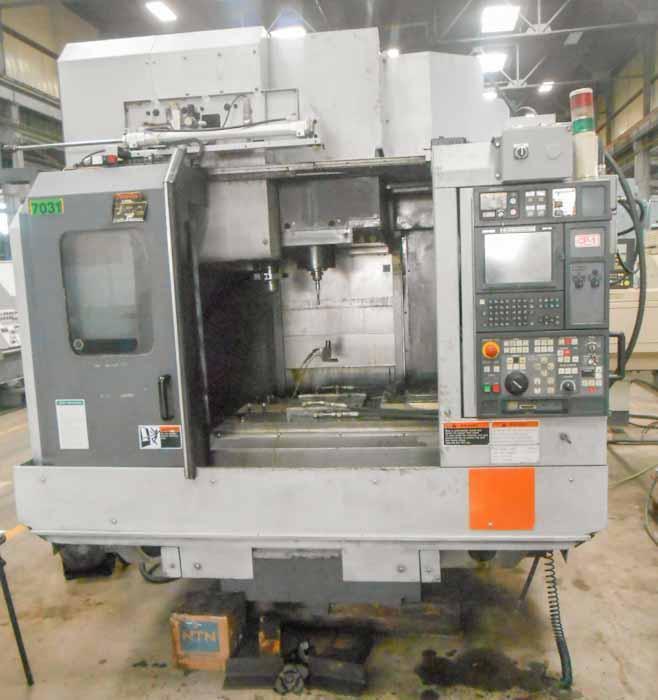

Mori-Seiki Model NV5000A/40 CNC Vertical Machining Center

Brand
MORI SEIKI

Model
NV5000A/40

Stock #
vmc247

Condition
Used

Year
2003

Location
Lake Bluff, Illinois
United States

Specifications

Table Size 43.3" x 23.6"
X-Axis Travel 31.5 inches
Y-Axis Travel 20 inches
Z-Axis Travel 20 inches
Table Load Capacity 2200 pounds
Distance Table to Spindle 5.9" - 26"
Spindle Speed 12,000 RPM
Spindle Taper CT-40
Rapid Traverse Feedrate (X, Y, Z) 1653 IPM
ATC Capacity 30 tools
Maximum Tool Diameter 4.92 inches
Maximum Tool Weight 17.6 pounds
Spindle Motor 30/25 HP
Approximate Dimensions 96.9" x 106.7" x 102.5"H
Approximate Machine Weight 14000 pounds
F.O.B. Our Plant

Equipped With

Mori-Seiki #MSG-501MB (Fanuc 18iMB) CNC Controls with MAPPS Conversational with CRT and Keyboard. Jog Control. Technitron 4th Axis Interface. 30-Position Automatic Tool Changer. Load Meter. Automatic Door. Robot Interface. Renishaw Touch Probe. Thru Spindle Coolant. Shower Coolant. Oil Chiller. Coolant System with Chip Conveyor. Auxiliary Pall Cartridge Filter.

This machine is being offered thoroughly checked out, cleaned and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
