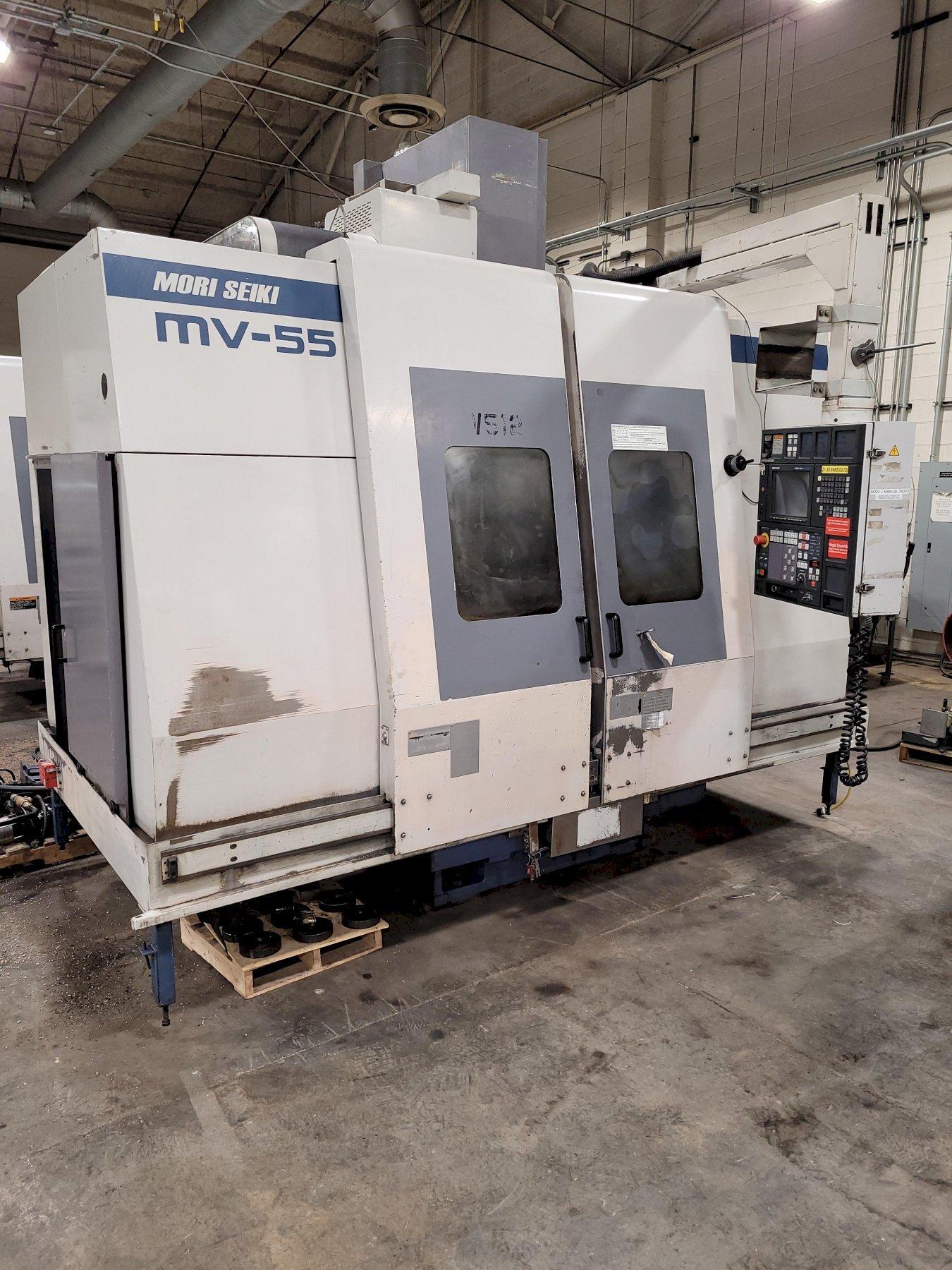

Mori Seiki MV-55/50 CNC Vertical Machining Center

Brand
MORI SEIKI

Model
MV-55/50

Stock #
vmc270

Condition
Used

Year
1998

Location
Lake Bluff, Illinois
United States

Specifications

Longitudinal Table Travel (X) 41.34”
Cross Travel of Table (Y) 21.65”
Vertical Movement of Spindle (Z) 22.05”
Distance from Top of Table to Bottom of Spindle 7.87” – 29.92”
Distance from Face of Column to Spindle Center 23.62”
Table Working Surface 55.12” x 21.65”
Table Load Capacity 3300 lbs
Max. Spindle Speed 6000 RPM
Spindle Taper No.50
Rapid Traverse Rate (X,Y) 590.55 IPM
Rapid Traverse Rate (Z) 472.44 IPM
Feed Rate (X,Y,Z) .039” – 196.85”
Automatic Tool Changer Positions 40
Max. Tool Diameter (With/Without Adjacent Tools) 4.72” with / 9.44” without
Max. Tool Length 13.78”
Max. Tool Weight 44 lbs
Spindle Drive (30min/continuous) 25/11 HP 18.5/15 kW
Approximate Dimensions 115” x 140” x 115” H
Approximate Weight 22000 lbs

Equipped With

MSC-501 CNC Control (Fanuc 18i-MA) Synchronized Tapping. Helical Interpolation. Remote Operators Pendant Control. Thru Spindle Coolant. 30-Position Automatic Tool Changer. Coolant System. Chip Conveyor. Oil Chiller.

The MV-55 is offered Cleaned, Cycled, and Guaranteed to be in good operating condition. It can be inspected under power on our floor.
