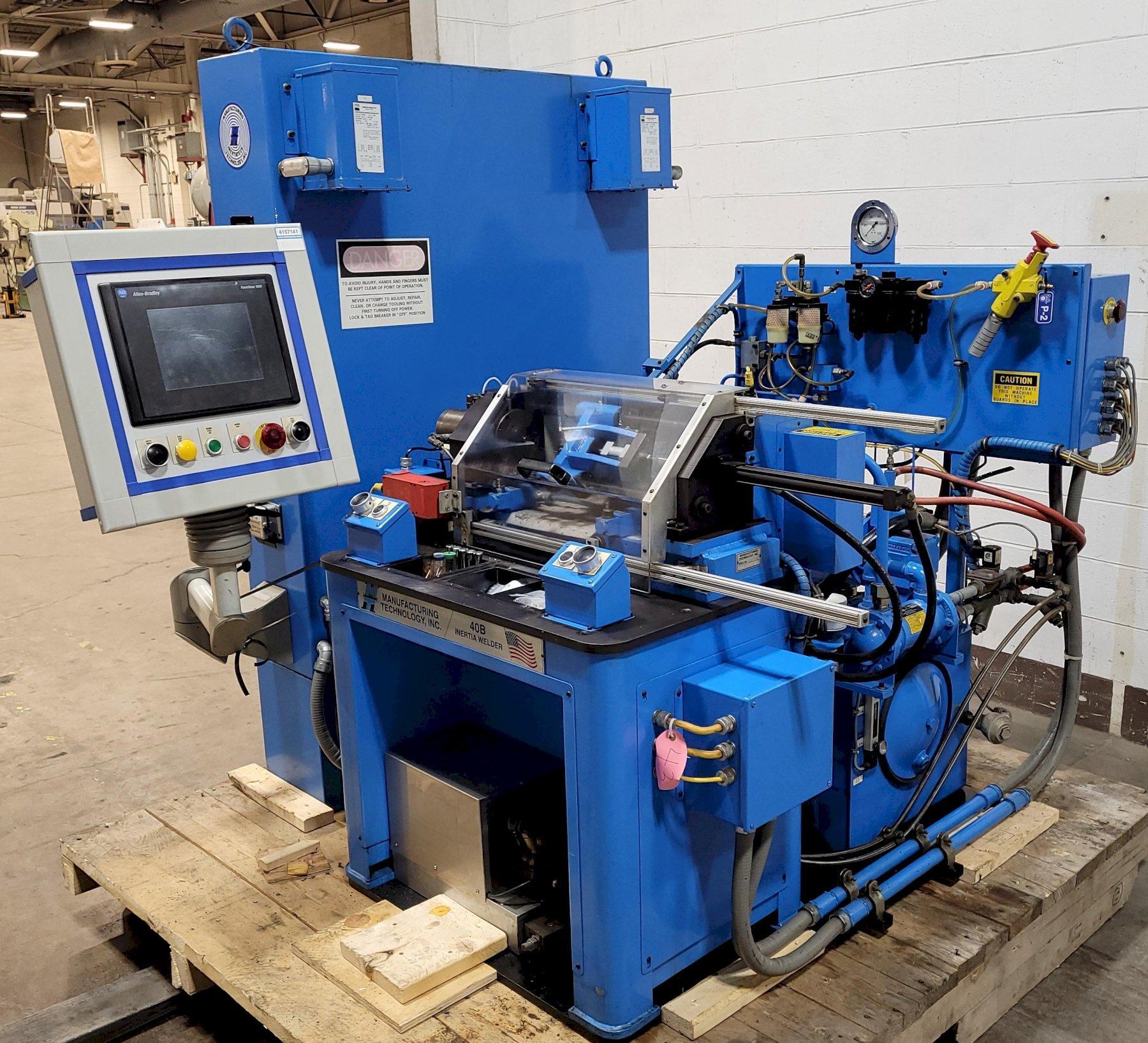

MTI Model 40B Inertia Welder

Brand
MTI

Model
40B

Stock #
WE656

Condition
Used

Year
2002

Location
Lake Bluff, Illinois
United States

Specifications

Spindle Drive Motor 1 hp (0.75 kw)
Electrical Full Load Amps 11 amp @ 480 V
Main Pump Volume 5.2 gpm (20 lpm)
Maximum System Pressure 1000 psi (69 bar)
Maximum Thrust Pressure 700 psi (48 bar)
Thrust Cylinder Area 0.785”^2 (5.1 cm^2)
Oil Cooling Water Heat Exchanger 5 gpm (19 lpm)
Oil Cooling Water Inlet Pipe Size 1” (25.4 mm)
Approx. Machine Weight 4,000 lb (1,815 kg)
Weld Capacity: Solid Interface (Bar-to-Bar) 0.25” (6 mm)
Weld Capacity: Tubular Interface (Weld Area) 0.05”^2 (32 mm^2)
Maximum Thrust 550 lb (2.4 kN)
Maximum WK^2 0.0064 lb–ft^2 (0.0003 kg-m^2)
Minimum WK^2 0.0022 lb–ft^2 (0.00009 kg-m^2)
Maximum Spindle Speed 60,000 rpm
Spindle Drawbar Travel 0.2” (5 mm)
Tailstock Travel Distance 12” (305 mm)
Tailstock Drawbar Travel .50” (13 mm)
Main Pump Motor 3 hp (2.2 kw)

Equipped With

EQUIPPED WITH:
MTI “High Performance” Window Based Control with Easily Configured Weld Reports, Weld Cycles, and Operator Interfaces.  Integrated with Allen Bradley ControlLogix 5000 PLC. Complete Work Enclosure. Assorted Collets and Repair Parts. Full Enclosure.
