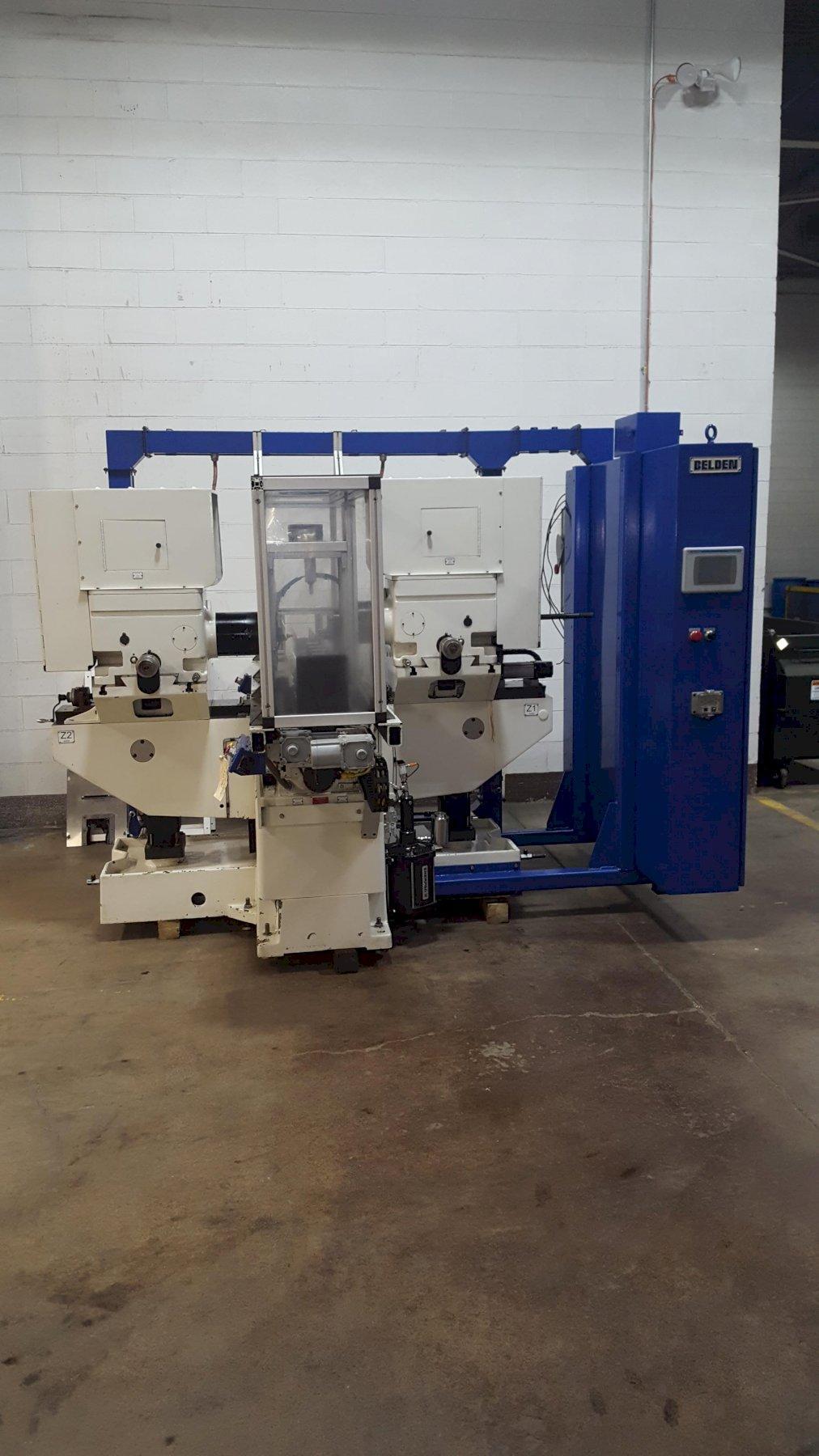

Nichols “Big Twin” Belden CNC Duplex Milling Machine


Big Twin Belden

Stock #



Lake Bluff, Illinois
United States


Working Surface of Table 10" x 42"
Overall Size of Table 16" x 48"
Spindle Nose Separation (Min / Max) 4" / 24"
Height of Spindle Center Above Table (Min / Max) 4.5" / 16.5"
Maximum Longitudinal Offset of Heads 12 inches
Maximum Cutting Stroke 37 inches
Taper in Spindle No.50 NST
Spindle Hole Diameter 1 inches
Spindle Speed Range 100 - 1740 RPM
Table Feed, Infinitely Variable 0 - 480 RPM
Saddle Traverse (Maximum) 3 inches
Saddle Traverse Rate 0 - 60 IPM
Vertical Travel of Knee (Programmable) 4.625 inches
Knee Traverse Rate 0 - 60 IPM
Knee Travel Rate 12"
Approximate Weight 11000 pounds
. ** Subject to Verification **

Equipped With

Allen Bradley MicroLogix PLC Controls with Panelview 700 Color HMI Programmable Servo Control of Table Feed. (2) Knee Feed Cross Slide (Y) Axis feed of RH Knee. LH and RH Spindle Speeds. Lubrication System.  Currently configured with Position Loader/Unloader with Pneumatic Work Fixtures. Twin Auger Chip Conveyors. Spindle Extension. Full work Enclosure. Motor Driven with (2) 10 HP, 1200 RPM, 3 phase, 60 cycle AC Servo VFD Spindle Drive motors and controls. 1.3 HP DC Table Feed. AC Servo Elevating Motors. AC Servo Saddle Feed Servo Drive Motor.
machine is offered cleaned, cycled and guaranteed with a 30 day return privilege.   It can be inspected under power at your convenience.
