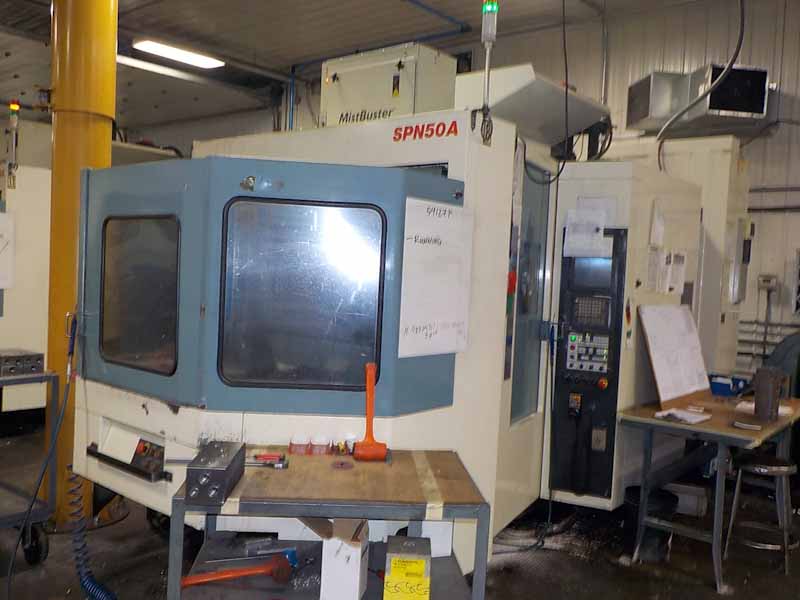

Niigata SPN50A 4-Axis Horizontal Machining Center

Brand
NIIGATA

Model
SPN50A

Stock #
hmcspnx

Condition
Used

Year
2005

Location
F.O.B. Iowa Shipping Point,
United States

Specifications

Pallet Size 19.7" x 19.7"
Number of Pallets 2
Maximum Workpiece Dimensions 31.5"D x 39.37"H
Table Indexing 0.001 degree full 4th
X-Axis Travel 29.5 inches
Y-Axis Travel 29.5 inches
Z-Axis Travel 29.5 inches
Spindle Nose CAT 40
Spindle Speed 50 - 12,000 RPM
Spindle Motor 40 HP
Tool Magazine Capacity 60-Position ATC
Tool Change Timetool to Tool/Chip 1.4 sec / 3.9 sec
Rapid Traverse Rate 1576 IPM
Feedrates 1182 IPM
Approximate Machine Weight 25000 ounces
F.O.B. On Location: Iowa Shipping Point

Equipped With

Fanuc 16iMB CNC Controls. Spindle Oil Chiller Unit. Coolant Thru the Spindle. Renishaw MP4 Probing. Chip Conveyor and Coolant System. All Available Manuals.
