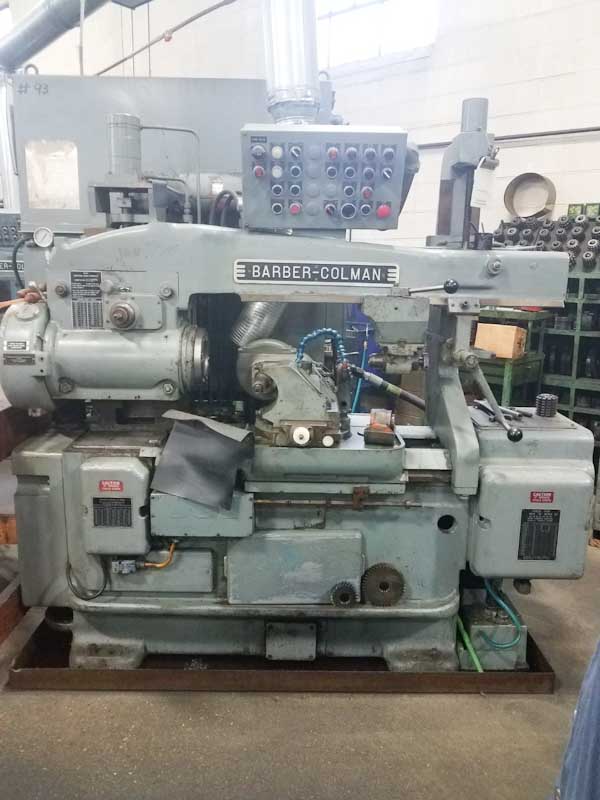

No. 16-16 Barber-Colman Multicycle Gear Hobbing Machine














No. 16-16 Barber-Colman Multicycle Gear Hobbing Machine

Brand
BARBER COLMAN

Model
16-16

Type
Gear Hobbers

Stock #
GH1067

Condition
Used

Year
1976

Location
City Not Specified, Michigan
United States

Request a Quote

Specifications

Maximum Rated Work Diameter	16 inches
Maximum DP and Diameter in Steel: 1 Cut	6 DP
Maximum Rate Hob Diameter	5 inches
Maximum Travel of Hob Carriage	16 inches
Max. Distance Work Spindle Face to Tail Center	44 inches
Diameter of Work Spindle Bore	4.125 inches
Maximum Hob Swivel Angle Setting (Left to Right)	45°
Hob Arbor Diameter	1.25 inches
Maximum Hob Speed	425 RPM
Maximum Vertical Feed Distance	0.5 inches
Maximum Toral Vertical Distance	0.875 inches
Electrics	3/60/460v
Approximate Weight	8400 pounds

Equipped With

Motor Driven with 7.5 HP, 3 Phase 60 Cycle Main Drive Motor. 2 HP, 3 Phase 60 Cycle AC Main Drive Motor. 1/2 HP, 3 Phase 60 Cycle AC Coolant Pump Motor. DC Variable Speed Gear Motor for Vertical Cam Feed. With Electrical Control Cabinet, Dwell Timer, Hob Rotation Selector and Operators Master Control Station.

Standard Operation or Hydraulic Multicycle with Plunge or Square Cycles. Workslide Power Clamping. Goose-Neck Hob Head. Double Thread Index. Change Gears. Lever Operated Tailstock. Automatic Lubrication System. MD Coolant System.

This machine appears to be in very good condition and can be inspected under power at your convenience.
