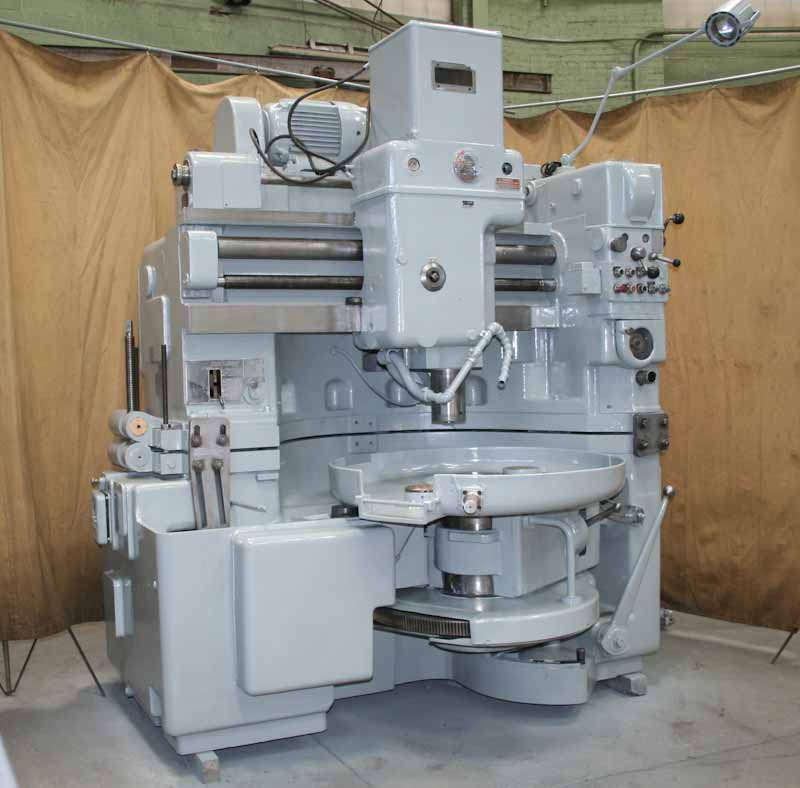

No. 36-8" Fellows Gear Shaper with Adjustable Tilting Mechanism

Brand
FELLOWS

Model
36

Type
Gear Shapers

Stock #
gh1039

Condition
Used

Year
1966

Location
Lake Bluff, Illinois
United States

Request a Quote

Specifications

Maximum Pitch Diameter (External & Internal) 36 inches
Maximum Diametral Pitch (Spur) 3
Maximum Diametral Pitch (Helical) 4/5
Maximum Face Width (External & Internal) 8" (6" as configured)
Stroke Length 8" (6" as configured)
Maximum Helix Angle w/Standard Guides 45°
Maximum Outside Diameter of Fixture 40 inches
Main Motor 5HP
Range of Feeds (12) 18 - 300 SPM
Work Spindle Diameter 5 inches
Approximate Weight 17500 pounds

Equipped With

Adjustable Tilting Mechanism for Cutting Tapers (6" Risers when Parallel). 32" T-Slotted Face Plate. Change Gears. Indexing and Relieving Mechanism. Rotating Feed Mechanism. Spur Guide. Coolant. Automatic Lubrication. Chip Drawer. 5" Diameter Cutter Spindle Drilled and Tapped for Bolt On Tools. As Equipped 6" Stroke.

This machine is being offered cleaned, painted and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected here in our plant
