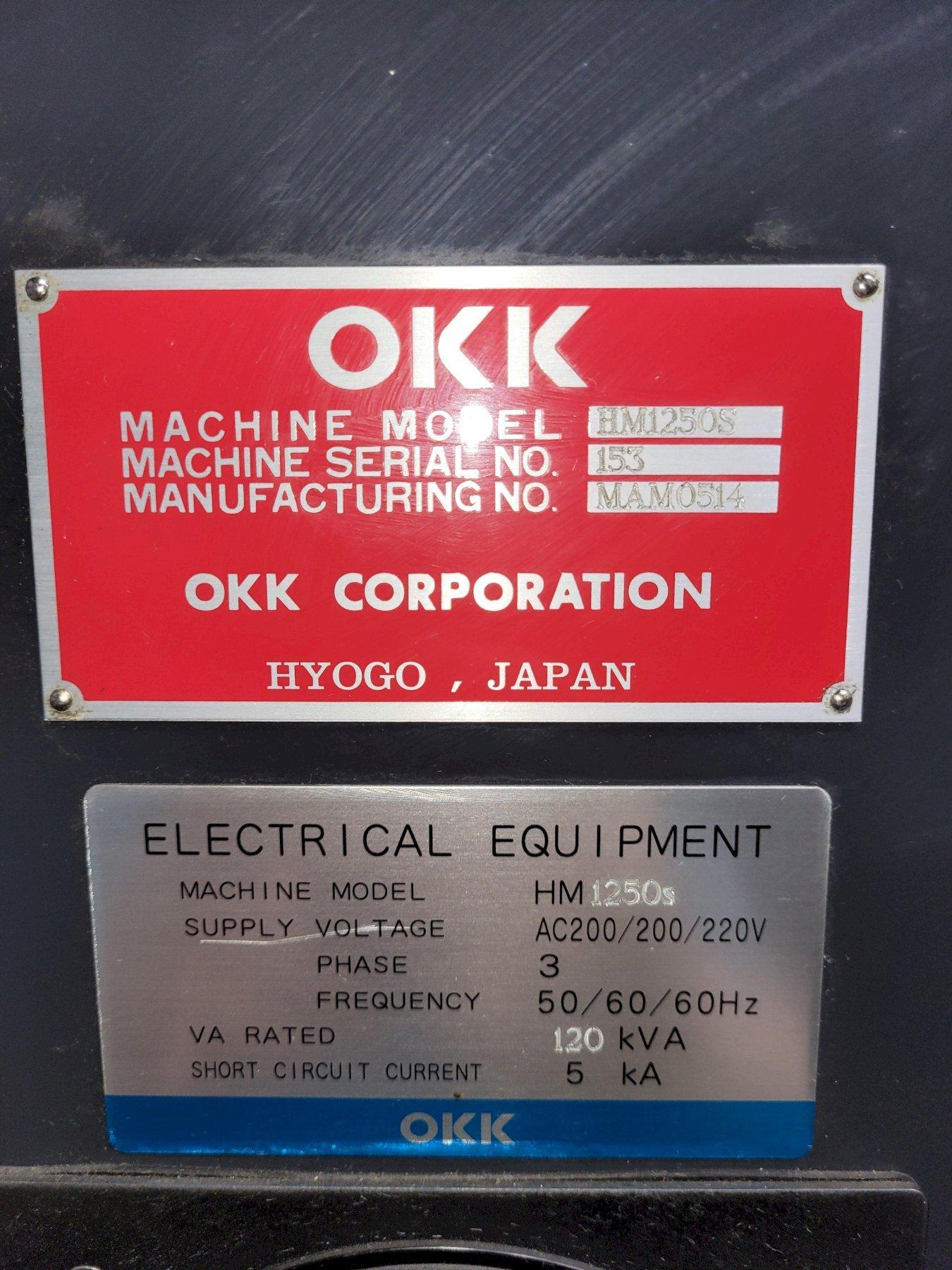

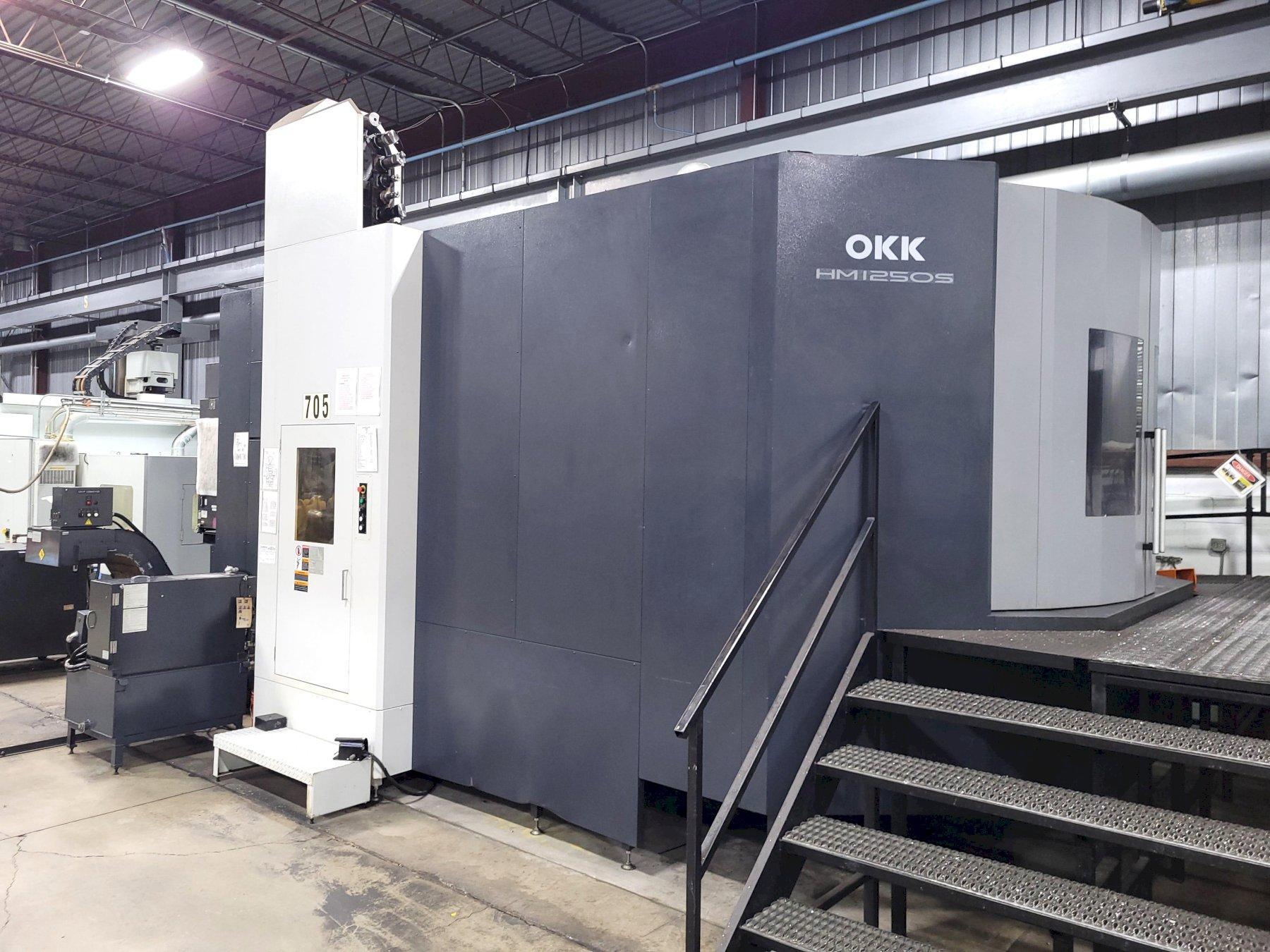

OKK Model HM1250S Horizontal Machining Center



















OKK Model HM1250S Horizontal Machining Center

Brand
OKK

Model
HM1250S

Type
Machining Centers, Horizontal

Stock #
HMCOKK705X

Condition
Used

Year
2012

Location
Elk Grove Village, Illinois
United States

Request a Quote

Specifications

Drilled & Tapped Pallet Size	49.21” x 49.21”
Travels XYZ	66.93” X 55.12” X 48.82”
4th Axis Rotary (infinite)	360,000 position

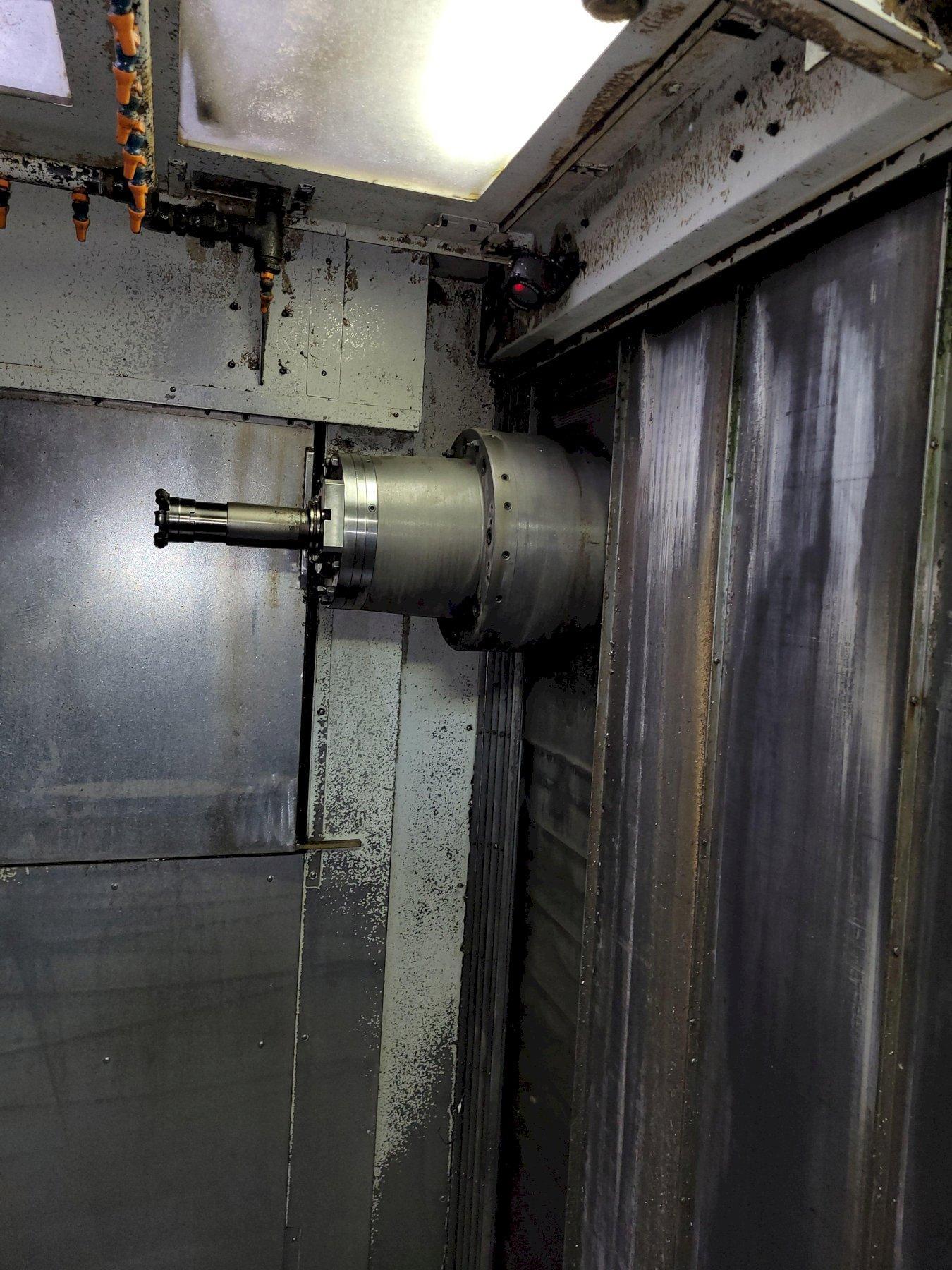

Spindle Speed Range	35-12,000 R.P.M.
Spindle Taper	Cat 50
Spindle Power Continuous/30 min. Rating	40/34
Positions on Tool Changer	60
Max Weight on Pallet	11,023 Lbs.
Tool Change Time	2.5 seconds
Distance Table Top to C/L Spindle	2.67” – 57.9”
Max “swing” of Part	77.56”
Machine Weight	72,000 Lbs.

Equipped With

EQUIPPED WITH:

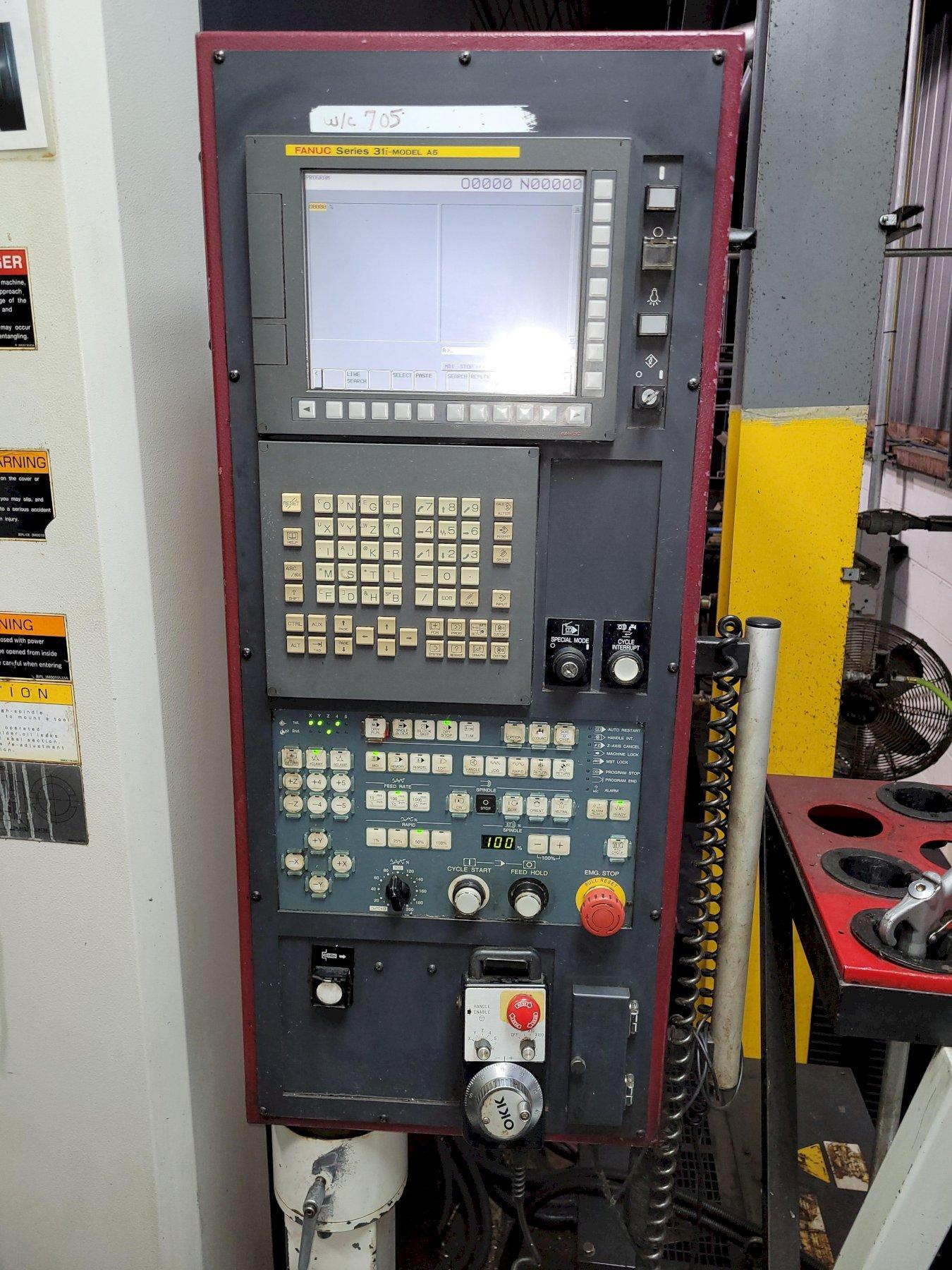

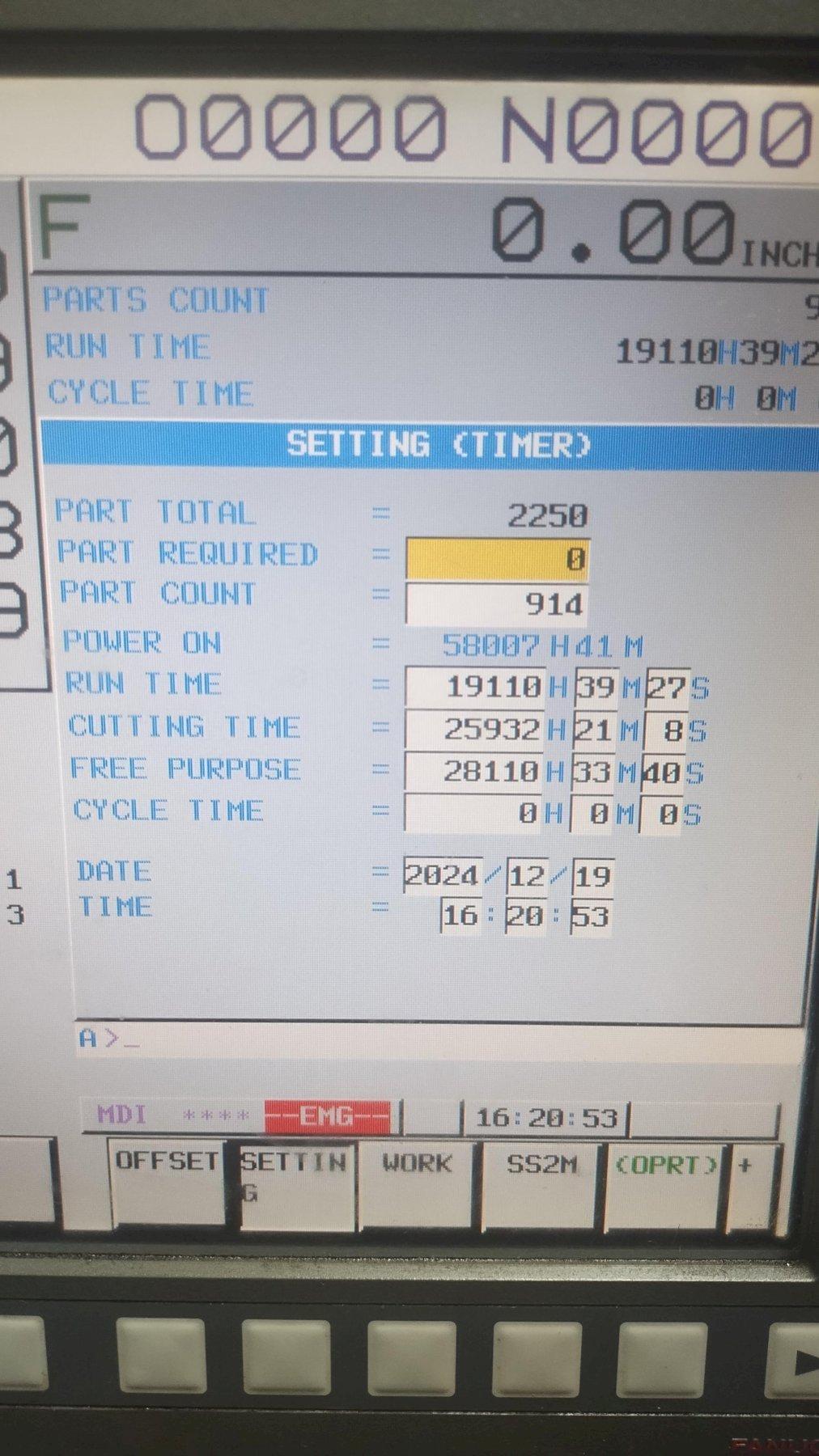

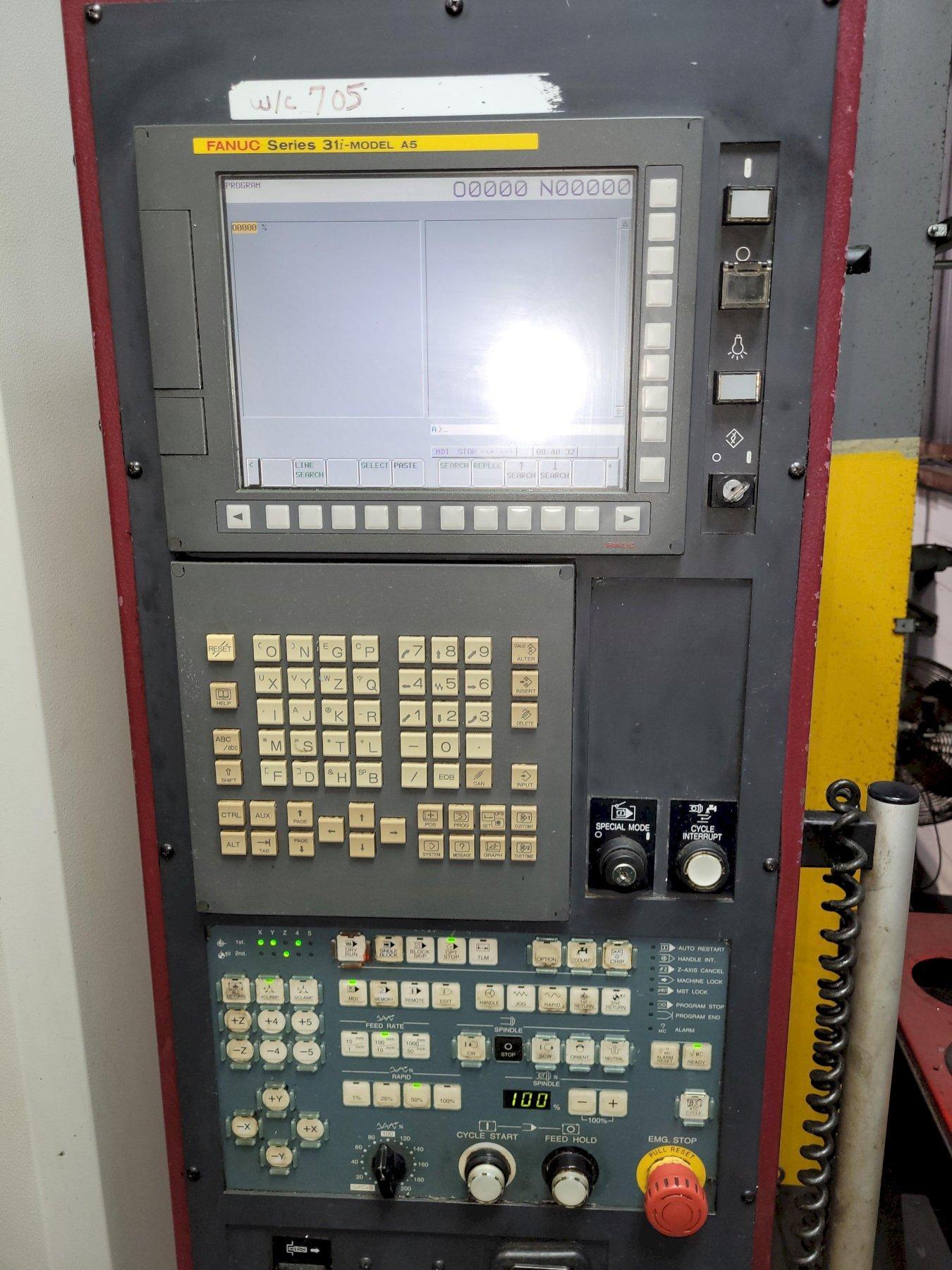

Fanuc 31i—Model A5 CNC Control.
High Pressure (1,000 psi) Coolant through the spindle.

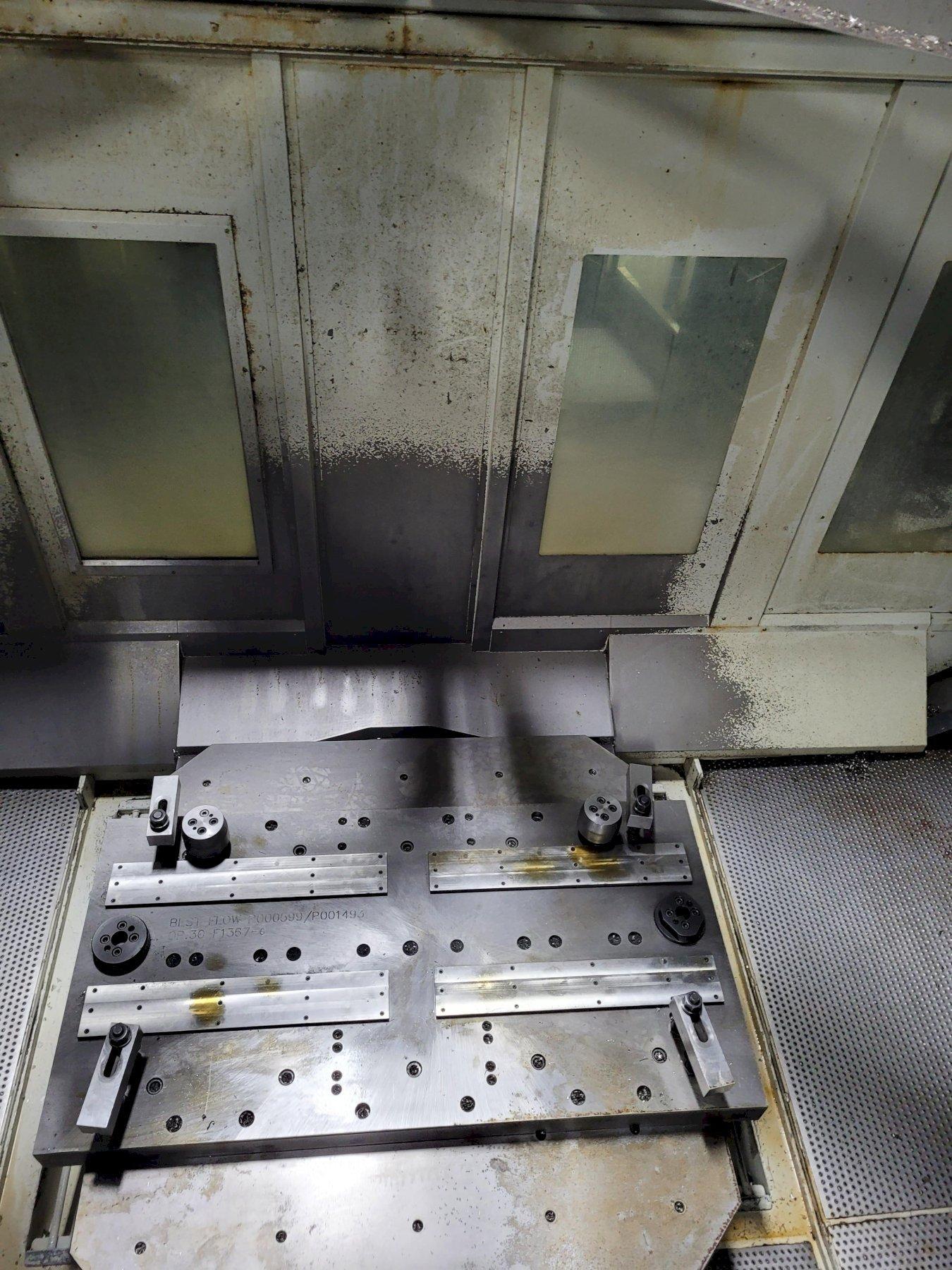

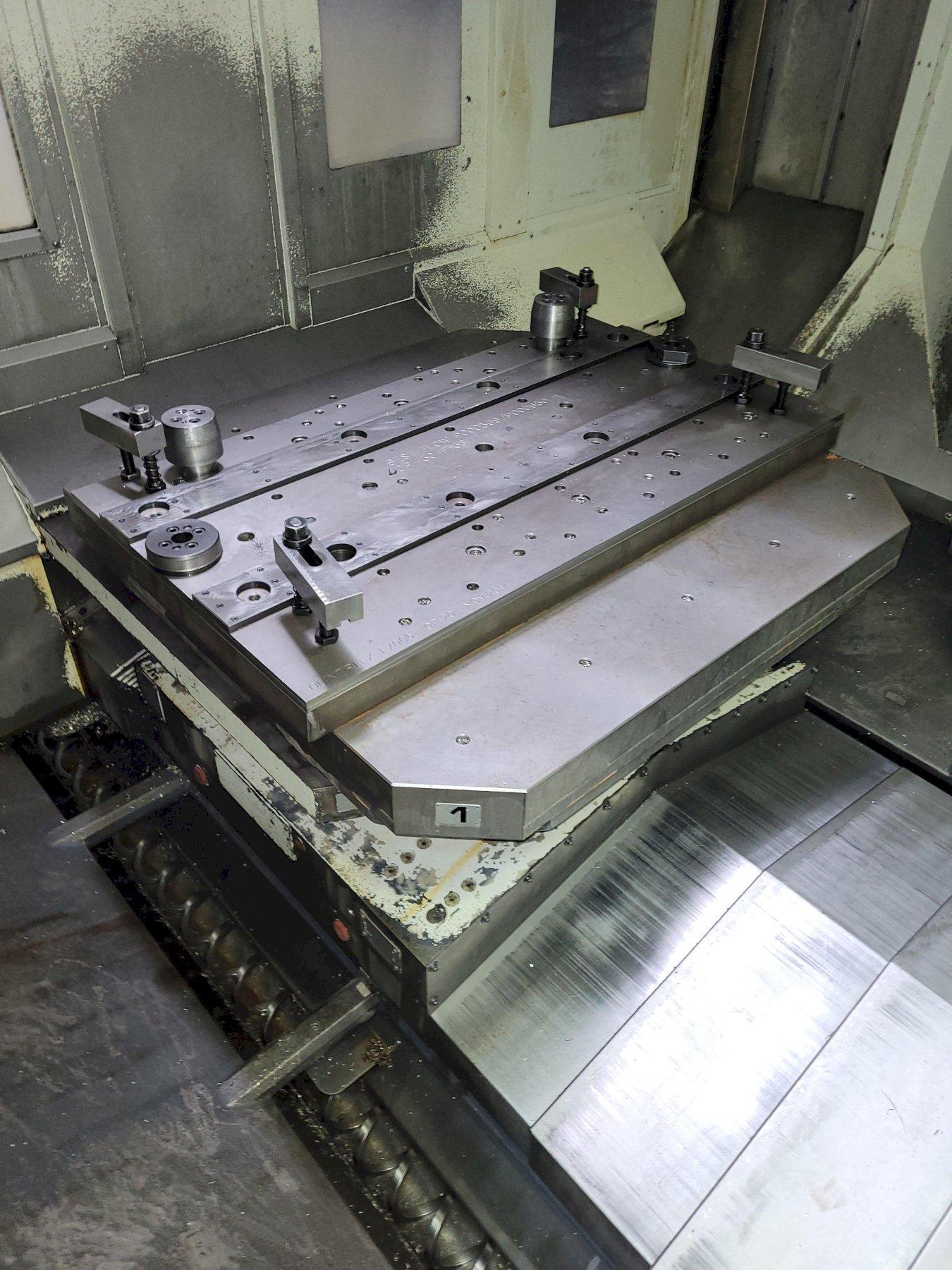

(2) 49.21” X 49.21” Drilled and tapped pallets.

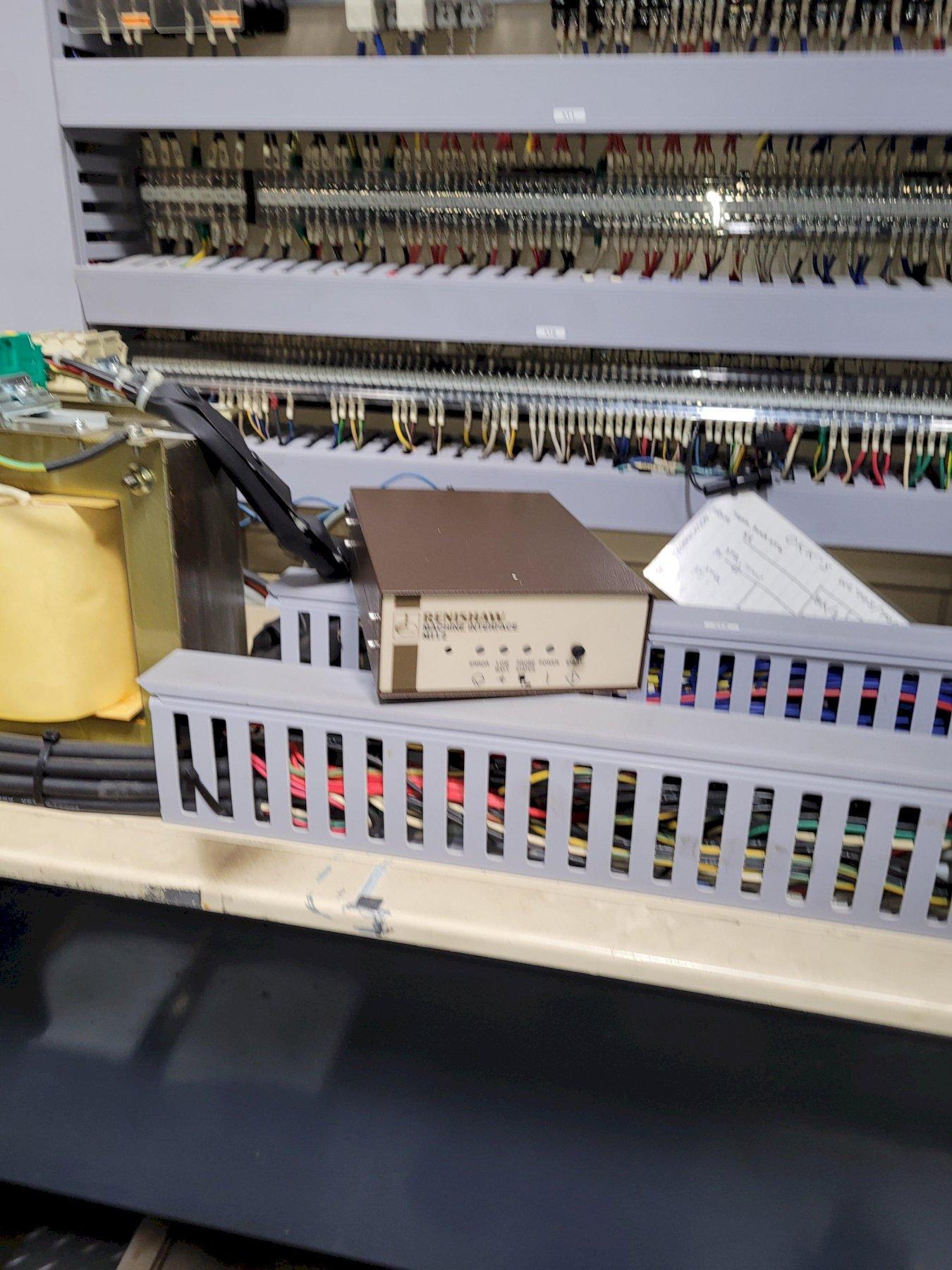

Renishaw Probe.

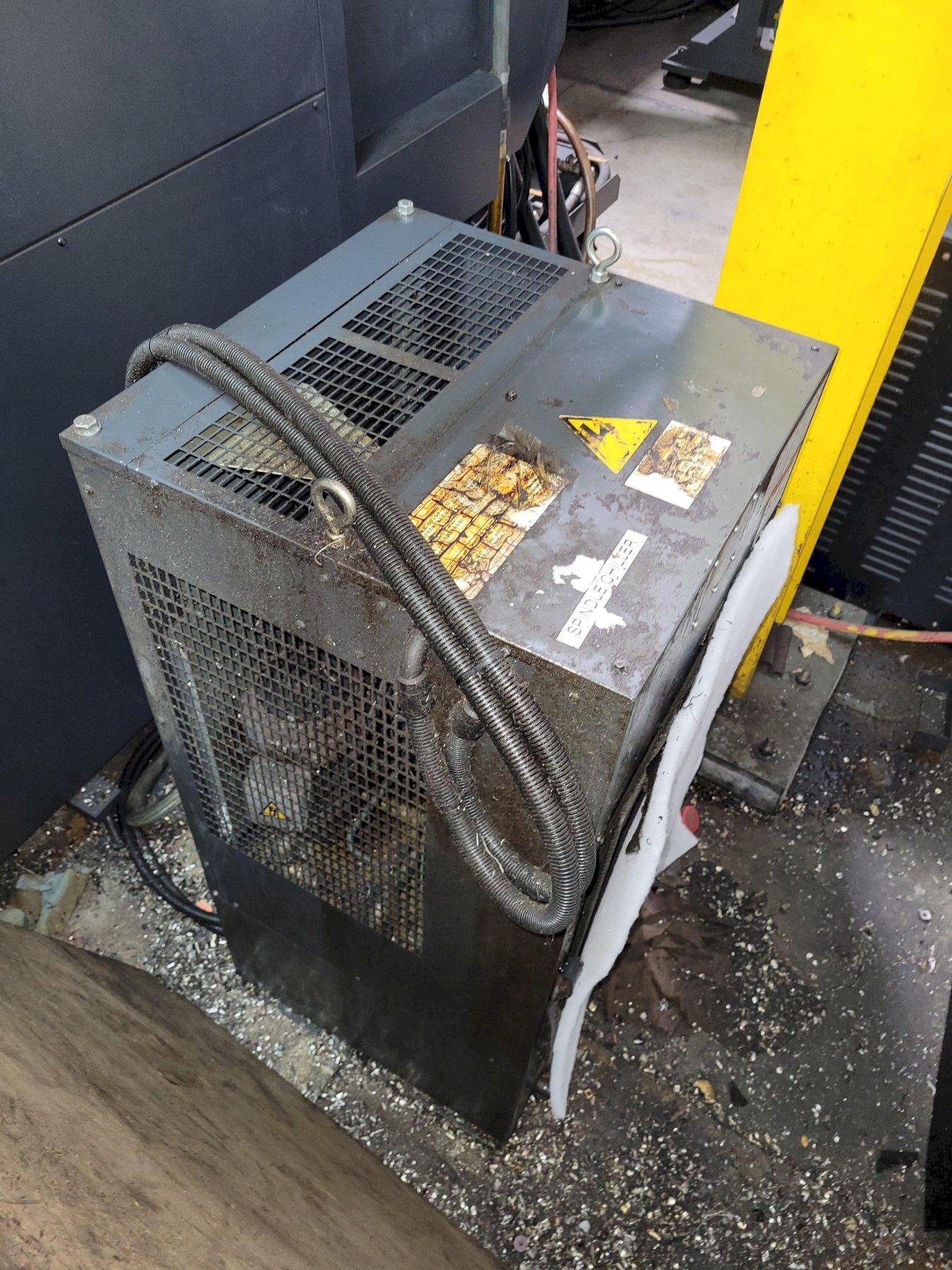

Transformer.

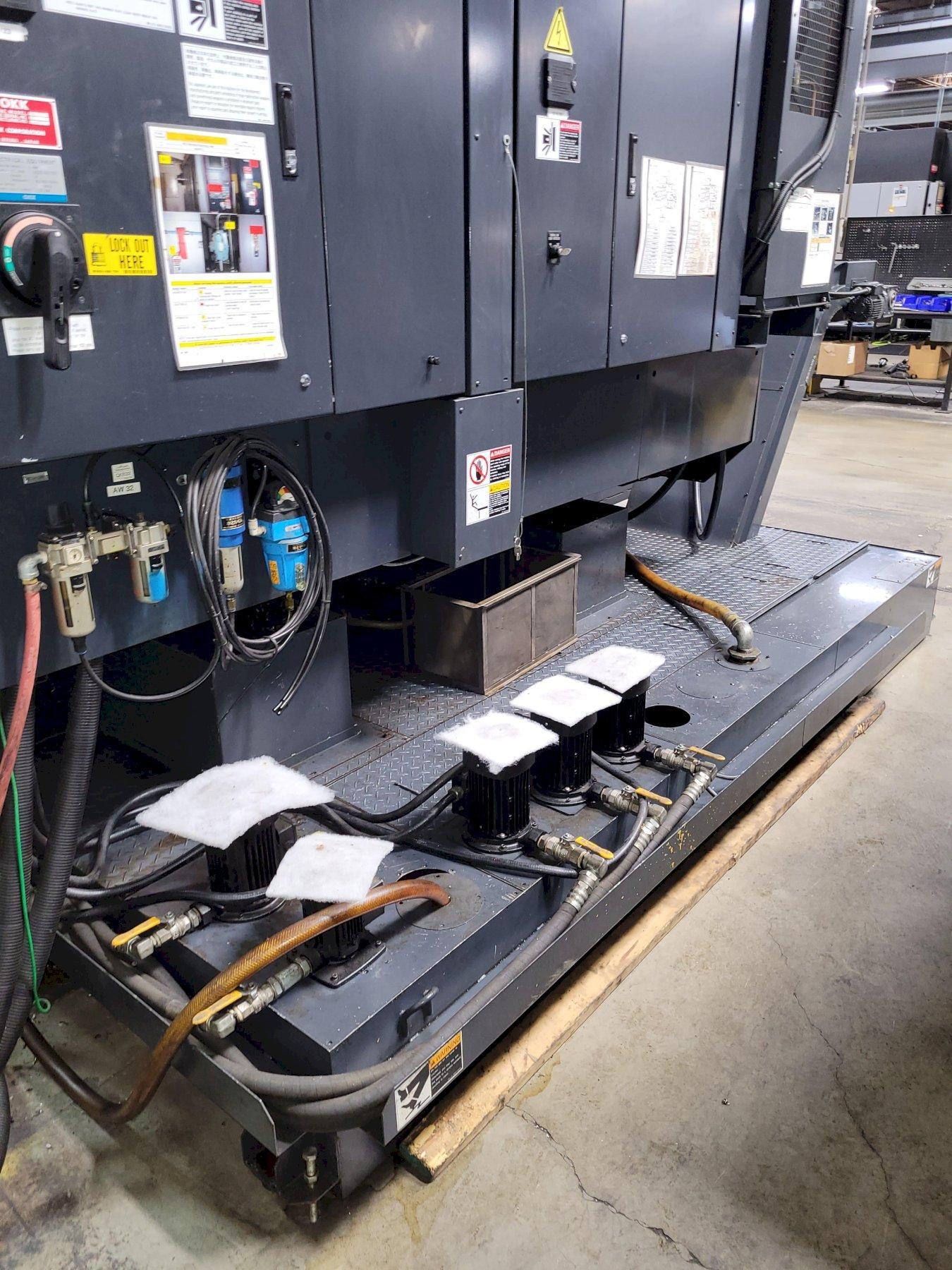

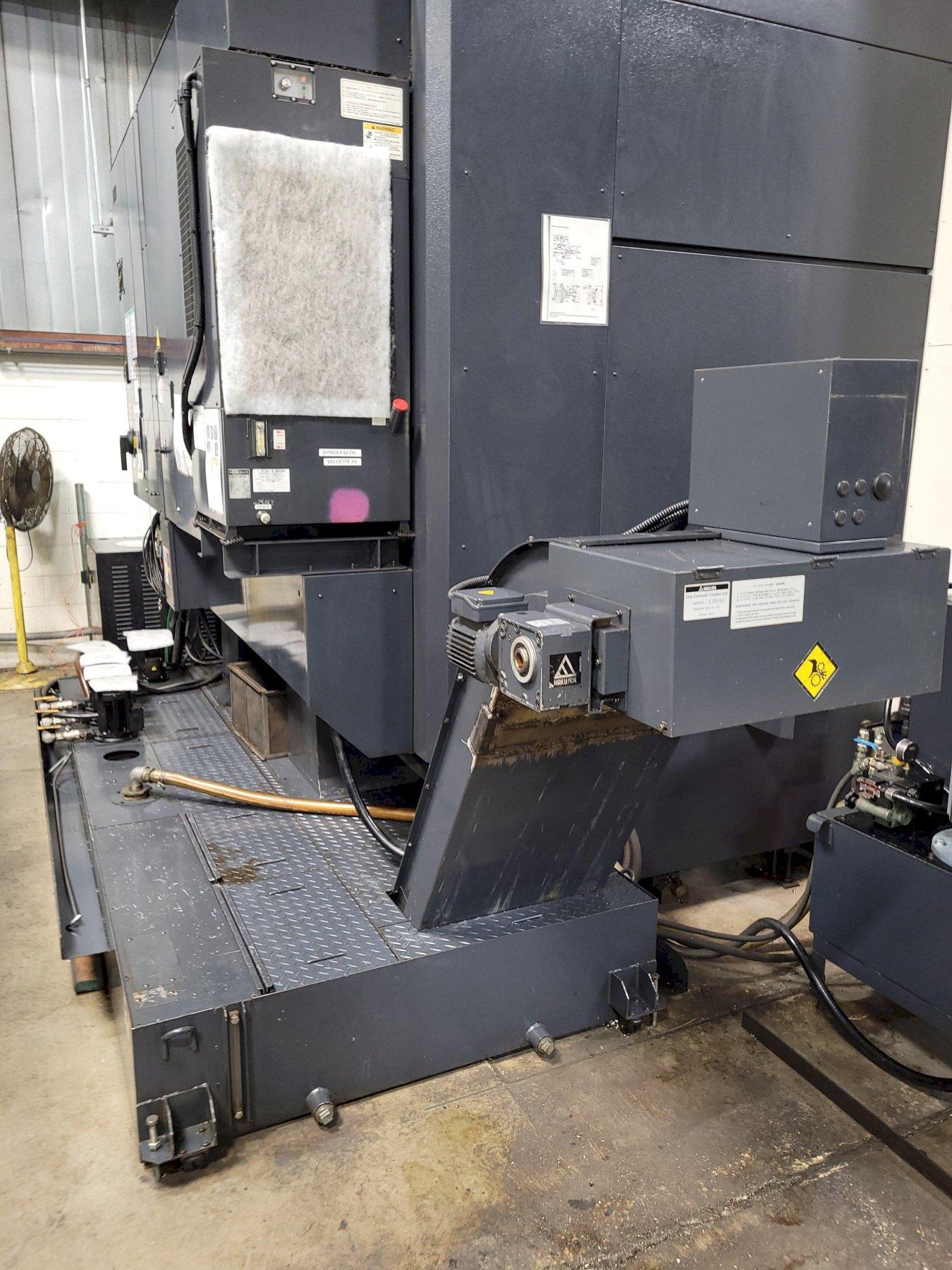

Coolant system with Chip Conveyor.
