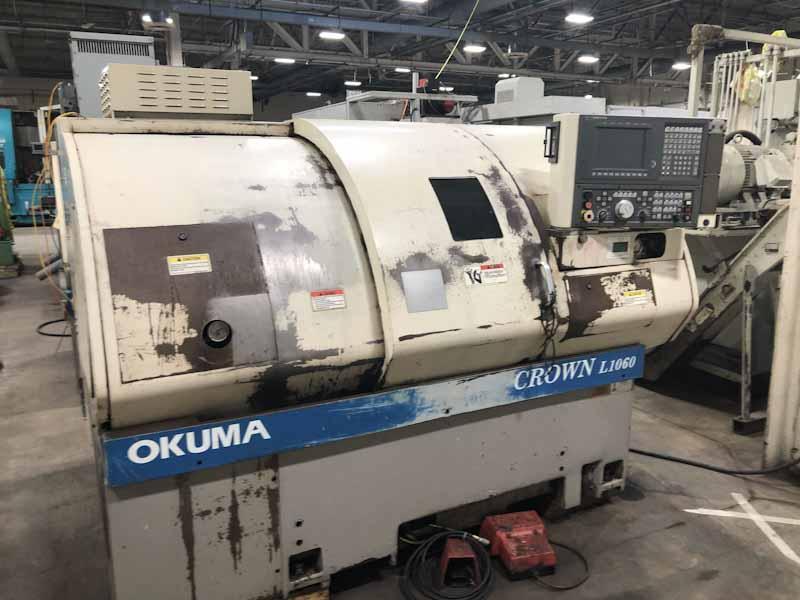

Okuma Crown L1060 Model 762E 2-Axis CNC Turning Machine

Brand
OKUMA

Model
762SE

Stock #
cnc465

Condition
Used

Year
1999

Location
Lake Bluff, Illinois
United States

Specifications

Maximum Swing Over Bed 21.65 inches
Maximum Swing over Cross Slide 15.75 inches
Maximum Turning Diameter 10.63 inches
Maximum Turning Length 19.68 inches
Z-Axis Travel (Longitudinal) 20.47 inches
X-Axis Travel 7.28 inches
Spindle Nose A2-6
Spindle Diameter 3.94 inches
Spindle bore 2.44 inches
Spindle Drive 10/12HP
Variable Spindle Speeds 75 - 4200 RPM
Rapid Traverse Feedrate (X, Z) 0.0001 - 39.37 IPR
X-Axis Rapid Feedrate 590.55 IPM
Z-Axis Rapid Feedrate 787.4 IPM
Turret Positions 12
Approximate Weight 9670
F.O.B. Our Plant

Equipped With

OSPU10L CNC Controls. Animation. Mac Man. Lap 4. Tape Interface. Programming Help. HELP. ServoLink Spindle. HI-G Control. Turret Position Compensation. 160 Meter Storage. Nose Radius 2B. Inch/Metric Switchable. Exp. Auto Chamfering. Cycle Time Calculator. NC Torque Limit. STN LCD Mono. 8" 3-Jaw Chuck with Hydraulic Cylinder. Hydraulic Tailstock. Coolant. Miscellaneous Toolholders. Foot Pedal Controls for the Chuck and Tailstock. Transformer. Chip Conveyor.

This machine is being offered thoroughly checked out in our shop, cleaned and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
