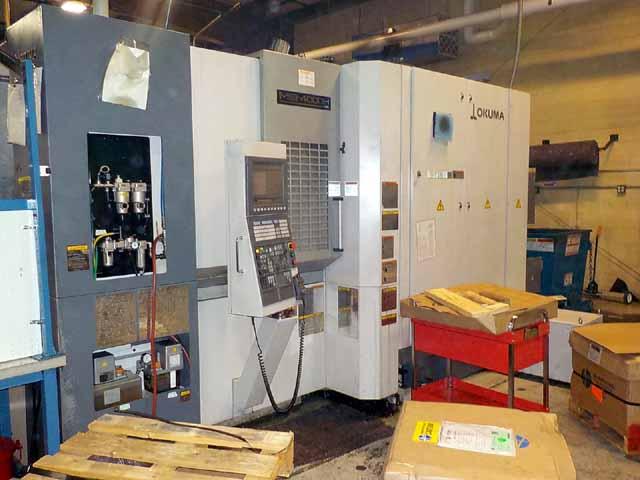

Okuma MB-4000H Model MB-4000H CNC Horizontal Machining Center

Brand
OKUMA

Model
MB-4000H

Stock #
hmc400hx

Condition
Used

Year
2011

Location
F.O.B. On Location - WI Shipping Point,
United States

Specifications

Longitudinal Travel (X-Axis) 22.05"
Vertical Travel (Y-Axis) 22.05"
Spindle Travel (Z-Axis) 24.61"
Pallet Dimensions 15.75" x 15.75"
Maximum Pallet Load 880 lbs
Number of Pallets 2
Number of Index Positions 360,000
Feed Rate, All Axes 2362 IPM
Rapid Traverse, All Axes 2362 IPM
Spindle Motor 22 HP
Spindle Speed Range 50-15,000 RPM
Spindle Taper CAT40
Number of Tool Stations 146
Approximate Machine Dimensions 185" x 96" x 107"H
Approximate Machine Weight 20,900 lbs
F.O.B. On Location - WI Shipping Point

Equipped With

Okuma OSP- P200MA CNC Control w/Color CRT Helical Cut One Directional Positioning Skip Function Exact Stop Hi-Cut Pro Inch/Metric Switchable Area Machining 3D Simulation Graphic - IMAP High Speed Interpolation NURBS Command Axis Active Stop Cycle Time Reduction Thru the Spindle Coolant (2) 15.7 x 15.7 Pallets Full Contouring 4th Axis Pallets (3600gh99300 Positions) 146 Station Automatic Tool Changer Chip Conveyor Coolant System. MP Filtration System.
