Brand
PFAUTER
Model

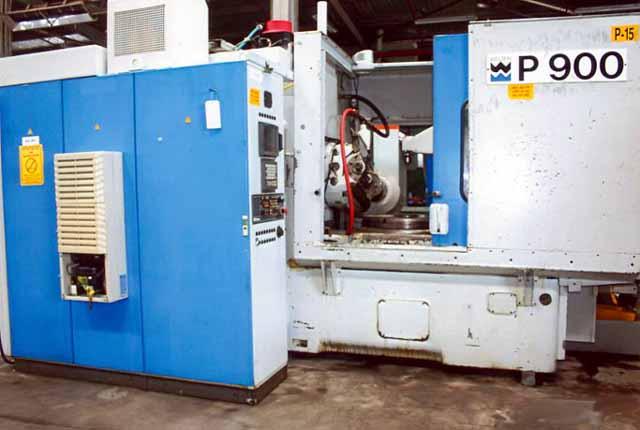

P900
Type
Gear Hobbers
Stock #
gh1023
Condition
Used
Year
Location
Lake Bluff, Illinois
United States
Maximum Workpiece Diameter | 36" (900mm) |
Maximum DP (Module) in steel | 2.5 DP8 |
Minimum number of teeth cut | 8 |
Maximum axial travel | 20" (500mm) |
Center distance btwn workpiece and hob, Max. | 21.65" (550mm) |
Center distance btwn workpiece and hob, Min. | 1.97" (50mm) |
Diameter of work table | 27.56" (700mm) |
Diameter of work table bore | 6.3" (160mm) |
Diameter of work arbor | 1.77" (45mm) |
Adaptor taper of hob arbors | 5 Morse |
Maximum hob dimensions: Diameter | 7" (192mm) |
Maximum hob dimensions: Length | 8.5" (215mm) |
Maximum hob shift (tangential travel) | 4" (100mm) |
Hob speed (infinitely variable) | 60 - 300 RPM |
Axial | .016 to .268 IPR |
Radial | .004 to .070 IPR |
Tangential | .006 to .090 IPR |
Capacity of coolant pump | 22 gallons per/min. |
Main Motor | 15 HP (15kW) |
Total power requirements | 22.5 kVA |
Machine net weight (approximate) | 18,700 lbs (8,500 kGs) |
Base machine dimensions | 157"x79"x91"(4000x2000x2300mm) |
Rebuilt/Retrofitted in 2000
Suitable for the cutting of spur and helical gears, pinions, splines, sprockets, worm gears and other workpieces of similar profile up to 36" (900mm) diameter, 18" (457mm) face-width, up to 10-Module (2.5 DP).
Scope of work performed by Messrs. WELTER MASCHINEN GmbH, Lahr, Germany 2000.
1. MECHANICAL: Rebuild includes but not limited to: machine cast iron bed, column, work-table, cutting slide, steady-column and slide re-ground and/or re-scraped. New ball-screws and nuts for radial and axial drives. New preloaded trapezoidal screw drive nut for shifting (tangential)
2. Coolant System with magnetic chip conveyor. Force Lubrication. Full enclosure
3. ELECTRICAL / CNC CONTROL: GE-Fanuc 18i-M CNC controller, motor and drive package, w/gear cutting software (updated 2008 by MTB) and user friendly conversational dialogue prompts for set-ups and/or amendments, aiding the operator with graphical depictions via 10.4" CRT color screen, mounted on electrical switch-gear cabinet. CNC controlled motions as follows: X-Axis (radial feed), Z-Axis (axial feed), B-Axis (hob RPM C-Axis (work table RPM), Y-Axis (tangential feed/hob-shift). Continuous path digital control provides programs for axial, radial, tangential, diagonal, climb, and conventional hobbing cycles as well as "crowning" and "single index" milling/hobbing, with additional "M" function features, and various hobbing & milling cycles in different combinations, inclusive of "skip-feed" and "automatic-two-cut" cycle w/speed and feed change between both roughing and finishing cuts. Control with "electronic hand-wheel" for easy positioning of all CNC-controlled axes
Three passes (same or alternating directions). Hobbing of four sequential gears in one cycle. Inch / metric switchable. Incremental shifting by part count. Crowning with high point offset capability. Taper compensation. Axial or radial/axial cycles. Radial only cycle. Programmable dwell. Automatic or manual over-travel and approach calculations. Simple single indexing cycle. Tool offsets for quick size changes. Workpiece counter. Multiple program storage and retrieval. Shifting with table compensation. Auxiliary function selection (tailstock/clamping seq.). Automatic or manual hob swivel angle calculation.
ADDITIONAL FEATURES / EQUIPMENT
Universal swivel hob-head (w/tangential feed). Outboard support column w/hydraulically lowered/clamping swing away type tailstock. Single start index worm. Diagonal hobbing, conventional and climb capability. Automatic infeed. Infinitely variable hob drive & infinitely variable feeds & speeds (via CNC). Motorized rapid traverse for all machine slides. (1) hob arbor (1.25" diameter). Full guards, covers. Operator's manual, wiring diagrams for machine and controller.
This machine is being offered cleaned and cycled. It is being offered with a 30-Day Return Privilege and may be inspected here in our plant.
