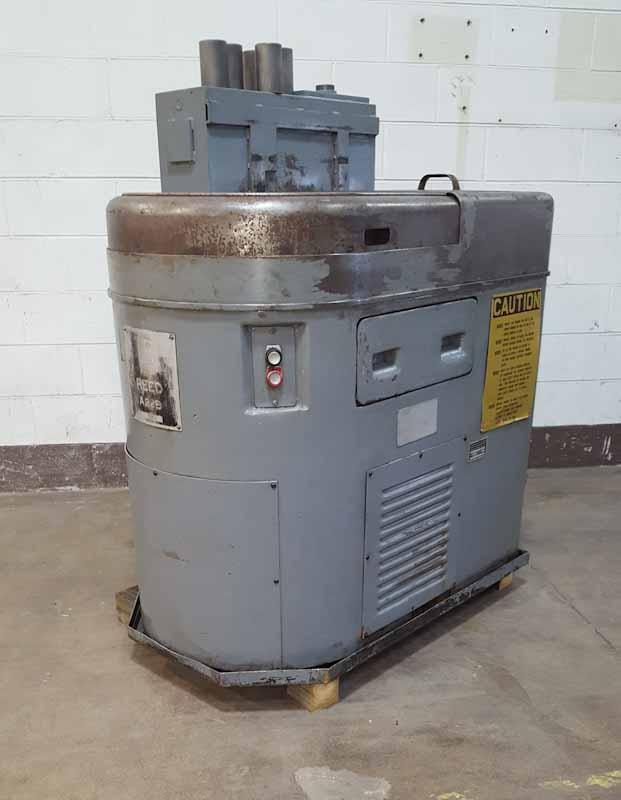

Reed Model A22B Vertical Cylindrical Die Thread Rolling Machine

Brand
REED

Model
A22B

Stock #
th480

Condition
Used

Year
1980

Location
Lake Bluff, Illinois
United States

Specifications

Thread Diameter Infeed 1/4" - 3/-3/4"
Thread Diameter Thru Feed 1/4" - 1"
Thread Length Infeed up to 2-3/8"
Thread Length Thru Feed up to 11"
Spindle Diameter up to 1-9/16"
Max. Die Diameter 4"
Max. Die Width 2-3/8"
Die Speeds 110 - 720 RPM
Cam Speeds 6 - 26 PPM
Maximum Automated 100 PPM
Main Drive Motor 10 HP
Radial Die Load, Max. 15 Ton
Loading Height 42"
Floor Space 46"W x 36"L
Net Weight 3100 pounds
F.O.B. Our Plant

Equipped With

Motor Driven With 10 HP, 3 Phase, 60 Cycle AC Main Drive Motor. ¾ HP, 3 Phase, 60 Cycle, 230 Volt Cam Drive Motor. Three Die Cylindrical Head For Continuous Highly Accurate And Uniform Threads. Graduated Adjusting Sleeves For Accurate Matching Of Dies. Positive Adjustments For Diameter, Work Length And Taper. Micrometer Adjusting Screw For Final Sizing Of Threads. Underhung Die Holders.

This machine is being offered thoroughly checked out in our shop, cleaned, painted and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
