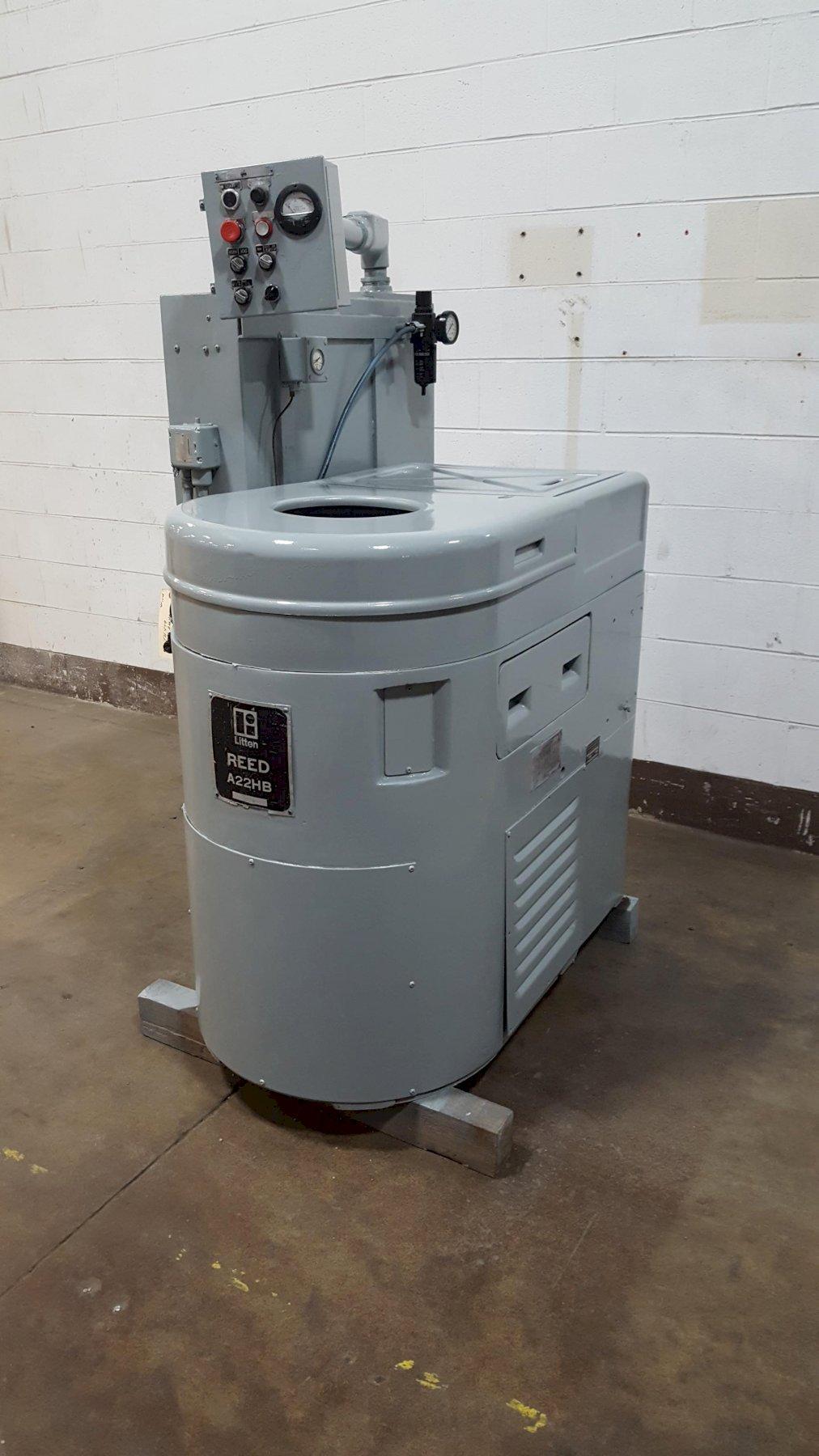

Reed Model A22HB Vertical Cylindrical Die Thread Rolling Machine

Brand
REED

Model
A22HBq

Stock #
th479

Condition
Used

Year
1974

Location
Lake Bluff, Illinois
United States

Specifications

Thread Diameter Infeed 1/4" - 3/-3/4"
Thread Diameter Thru Feed 1/4" - 1"
Thread Length Infeed up to 3"
Thread Length Thru Feed up to 14"
Spindle Diameter up to 2-1/8"
Max. Die Diameter 4-3/4"
Max. Die Width 3"
Die Speeds 155 - 735 RPM
Cam Speeds 8 - 38 PPM
Maximum Automated 60 PPM
Main Drive Motor 20 HP
Radial Die Load, Max. 20 Ton
Loading Height 47"
Floor Space 46"W x 36"L
Net Weight 3700 pounds

Equipped With

Partial Rebuild by Reed 2015

Motor Driven With 20 HP, 3 Phase, 60 Cycle AC Main Drive Motor. ¾ HP, 3 Phase, 60 Cycle, 230 Volt Cam Drive Motor. Three Die Cylindrical Head For Continuous Highly Accurate And Uniform Threads. Graduated Adjusting Sleeves For Accurate Matching Of Dies. Positive Adjustments For Diameter, Work Length And Taper. Micrometer Adjusting Screw For Final Sizing Of Threads. Underhung Die Holders.

This machine is being offered thoroughly checked out in our shop, cleaned, painted and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
