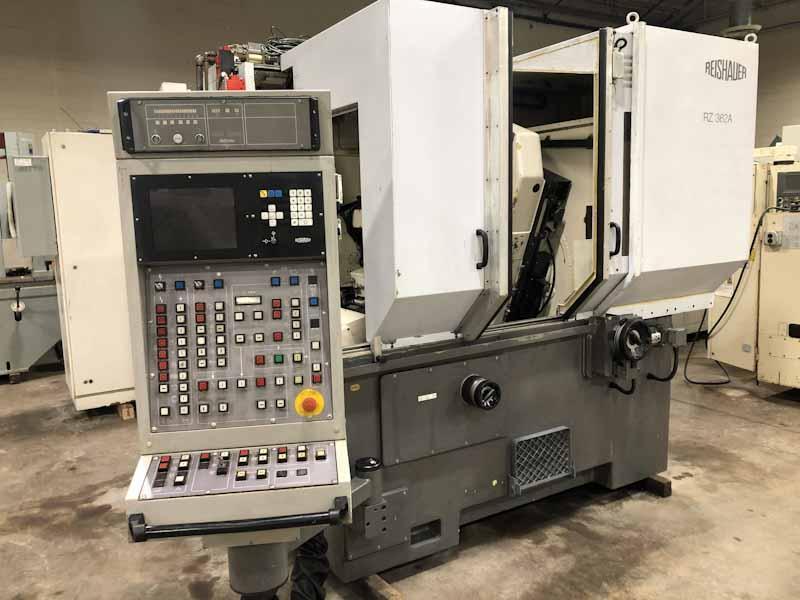

Reishauer Model RZ362A CNC Gear Grinder

Brand
REISHAUER

Model
RZ362A

Stock #
GH1051

Condition
Used

Year
1995

Location
Lake Bluff, Illinois
United States

Specifications

Maximum Wheel Diameter 14.17 inches
Maximum Module 0.275 inches
Minimum Module 0.0039 inches
Slide Stroke 6.88 inches
Maximum Helix Angle ± 45°
Maximum Number of Teeth 600
Minimum Number of Teeth 6
Maximum Workpiece Weight 132 pounds
Grinding Wheel Width 4.09 inches
Grinding Wheel Diameter 11.02" - 13.77"
Speed of Grinding Worm when Grinding 1100 - 2330 U/min
Speed of Grinding Worm when Profiling 50 - 95 U/min
Feed per Revolution of Workpiece 0 - 0.133"
Grinding Worm Infeed Speed up to 99.9mm/min / 3.93 IPM
Approximate Weight 14553 pounds
F.O.B. Our Plant

Equipped With

Reishauer CNC Controls. Dittel MBA2000 Balancing Controller. Elbaron R12D Mist Collector. Kato Motor Generator. Freestanding Hydraulic Unit. Hydraulic Oil Pump-Sump Pump System. Free Standing Electrical Control Cabinet. (1) Wheel Hub Books, Manuals, and Drawings. NOTE: No chiller-filtration unit or coolant system.

The RZ362A is offered As-Taken from Service in good working condition.  It has been thoroughly cleaned and can be inspected at your convenience.
