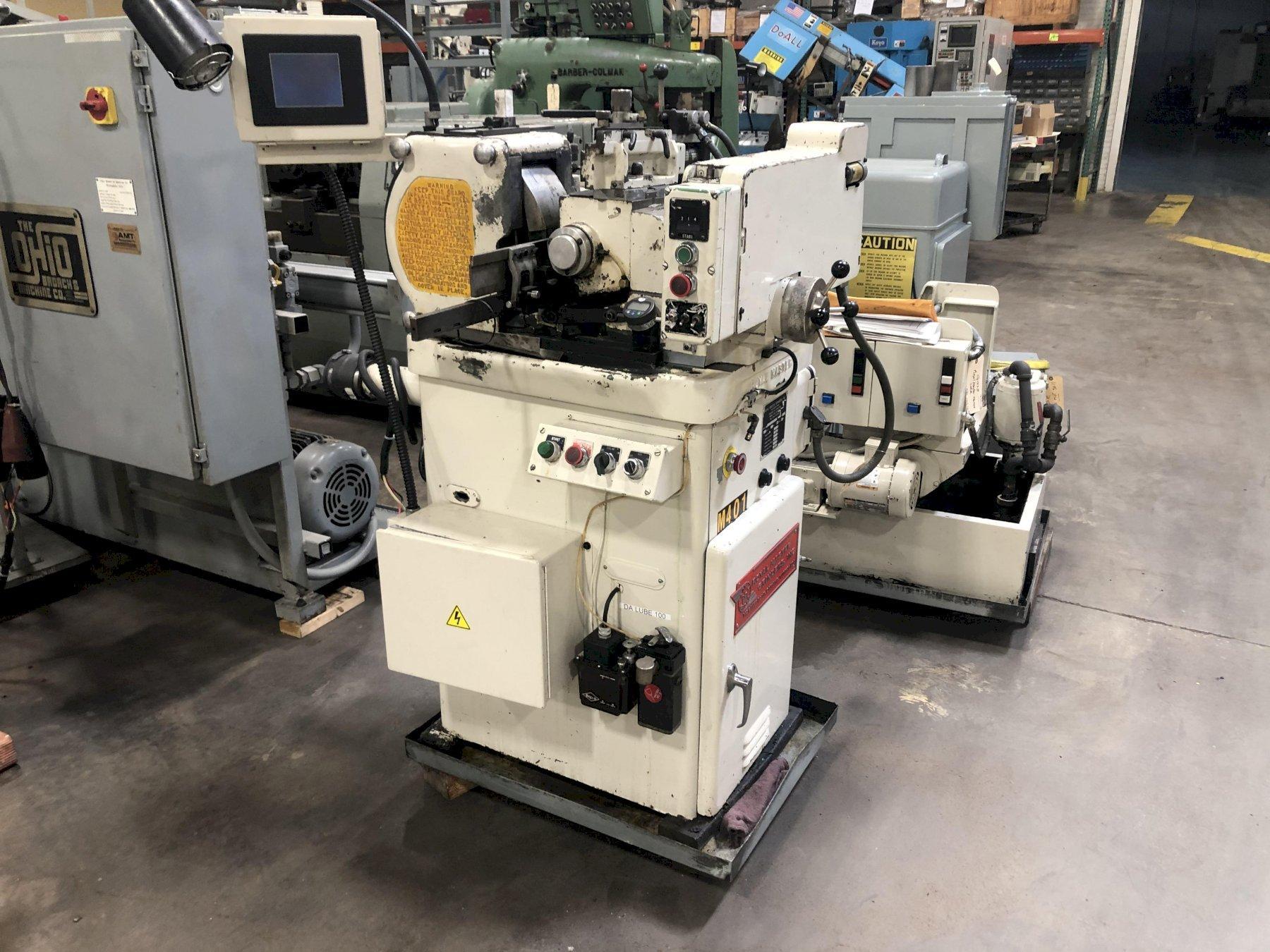

Royal Master Model TG-12X4 Precis-O-Matic Centerless Grinder

Model
TG-12x4

Stock #
G1434

Condition
Used

Year
2000

Location
Lake Bluff, Illinois
United States

Specifications

Grinding Capacity Thrufeed 0.004" - 1.5" Dia
Grinding Wheel Maximum 12” Dia x 4” Wide
Grinding Wheel Minimum 10” Dia x 0.25” Wide
Regulating Wheel Maximum 6” Dia x 4” Wide
Regulating Wheel Minimum 4” Dia x 0.125” Wide
Regulating Head Max. Angle of Tilt for Thrufeed Grinding 6° Left – 6° Right
Wheel Head Max. Swivel for Taper Grinding 5° Left – 5° Right
Spindle Speeds for Grinding Wheel (constant) 2040 RPM
Spindle Speeds for Regulating Wheel (variable) 20 - 500 RPM
Approximate Weight 2500 pounds
F.O.B. Our Plant

Equipped With

7.5 HP, 3 Phase, 60 Cycle, 230 Volt Drive Motor. ¼ HP, 3 Phase, 60 Cycle, 230 Volt Hydraulic Pump in Base. With Controls.

Servo Driven Variable Speed Regulating Wheel with Automation. Direct PLC with Touchscreen Controls for Preselecting Wheel Speed for Grinding and Dressing Cycles. Hydraulic Profile Dressers for the Grinding and Regulating Wheels. Air Sensing Dresser for The Grinding Wheel Which Allows for More Accurate Template Reproductions. 6-Phase Air Operated Automatic Cycling Infeed Unit with the Optional Microsize Adjustment for Greater Tolerance Control. Precision Regulating Wheel Housing. Taper Adjustment with Dial Indicator. Lubrication System. Industrial Filters Model DB-15 Coolant Filtration System. Work Blades. Work Support.

Cleaned, Cycled, Guaranteed.
