Schneeberger Norma 75 5-axis CNC Tool & Cutter Grinder










Schneeberger Norma 75 5-axis CNC Tool & Cutter Grinder

Brand
SCHNEEBERGER

Model
Norma 75

Type
Grinders, Tool & Cutter

Stock #
GNORMX

Condition
Used

Year
2002

Location
Largo, Florida
United States

Request a Quote

Specifications

X-Axis Travel	14.17”/370mm
Y-Axis Travel	9.84”/250mm
Z-Axis Travel	9.84”/270mm
Maximum Dimension of Workpiece	14.17”/360mm x 9.84”/250mm x 9.84”/250mm
Spindle Speeds	2000-9000 RPM
2000-9000 RPM	5.5 HP/4kw
A-Axis	0.001°
C-Axis	180° +/-
Approximate Machine Dimensions	57.8”/1470mm Length x 96.45”/2450mm Width x 85.43”/2170mm Height
Approximate Weight	8,820 Lbs./4,000kg
Temporary Specifications Subject to Verification	Temporary Specifications Subject to Verification

Equipped With

EQUIPPED WITH:

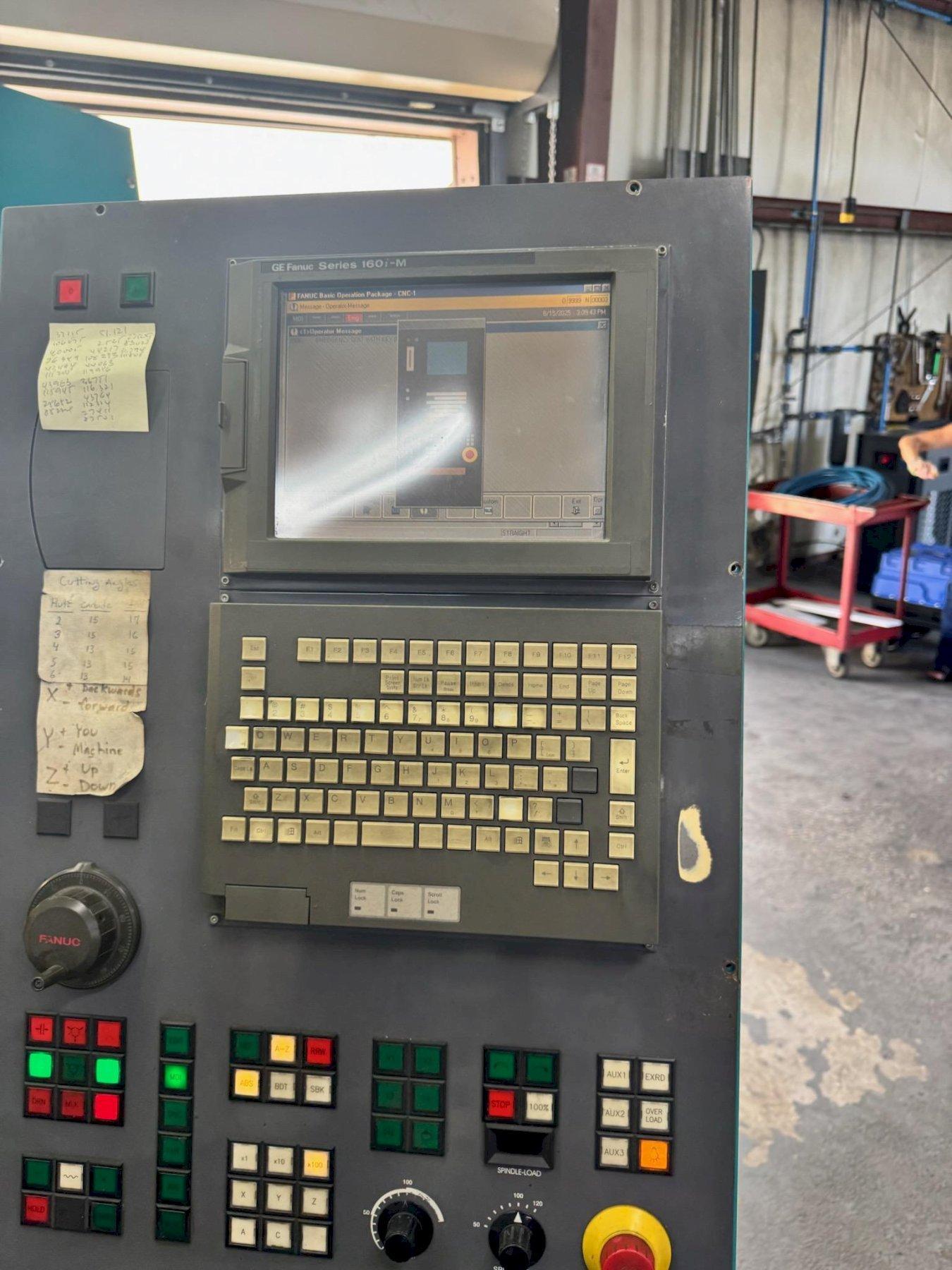

Fanuc 160i-MB CNC Control.

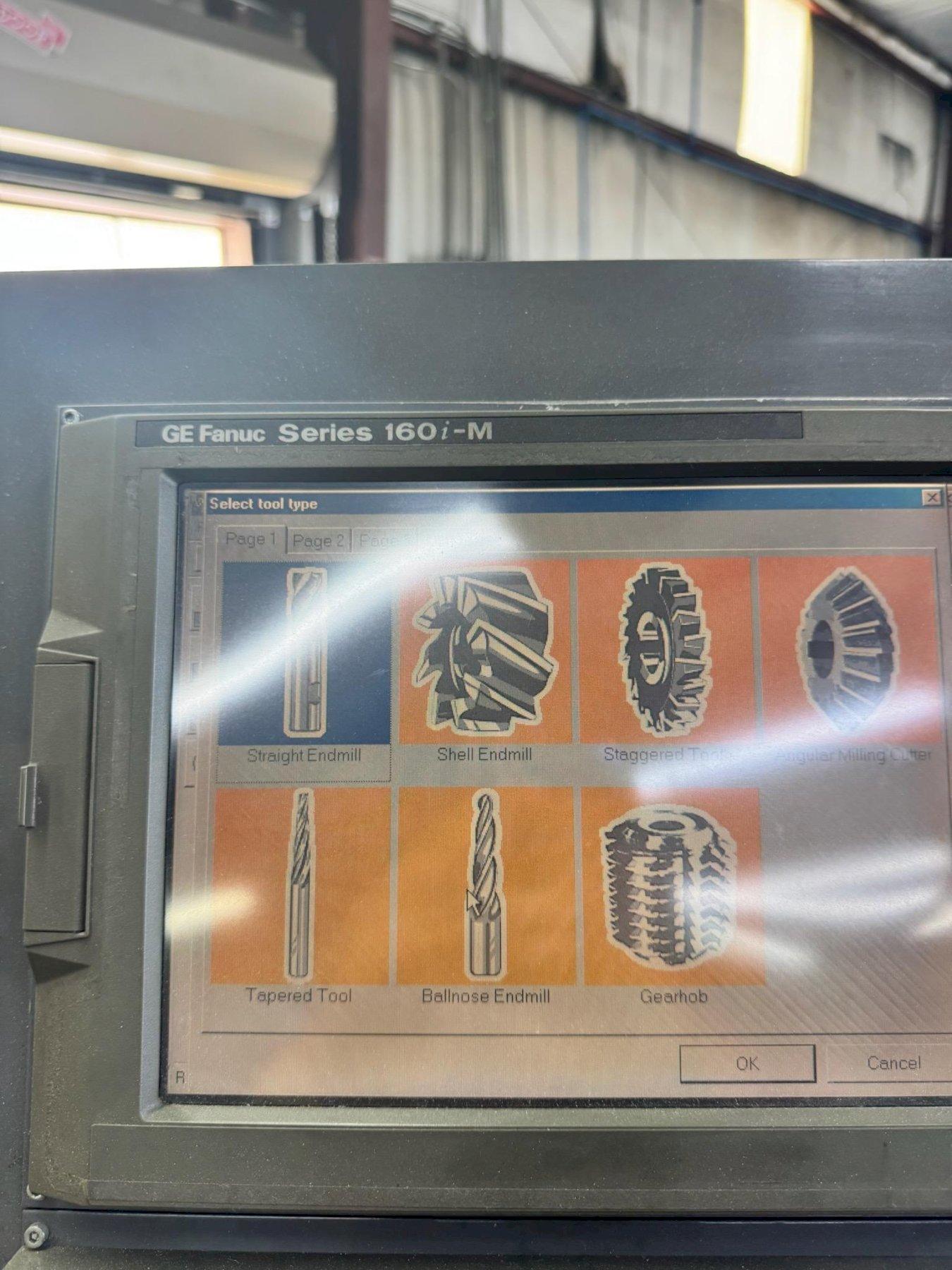

Schneeberger Grinding Software.
3D Probing.
Coolant Filtration System.
Torit Mist Collector.
Manuals and Drawings.

*Temporary Specifications Subject to Verification*
