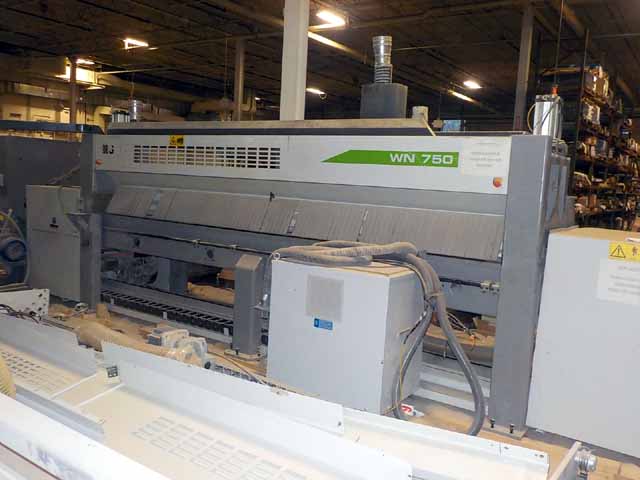

Selco Model WN750 (WN750/3800 x 3200) Front Load Horizontal Beam CNC Panel Saw

Brand
SELCO

Model
WN750

Stock #
sawn750x

Condition
Used

Year
2008

Location
City Not Specified,

Specifications

Equipped With

Max. Cutting Length 3800mm (149")
Max. Pusher Stroke 3200mm (126")
Max. Saw Blade Projection (5.9")
Max. Gripper Opening (5.3)
Height of Work Table (38.7)
Main Saw Motor 22 kW (25 HP)
Scoring Saw Motor 2.2 kW (3 HP)
Saw Carriage Tool 1-185 MPM (7283 IPM)
Pusher (by brushless meter) Max. 130 MPM (5118 IPM)

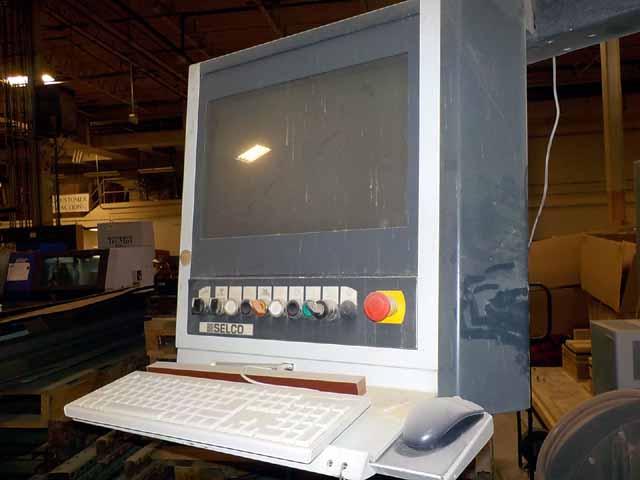

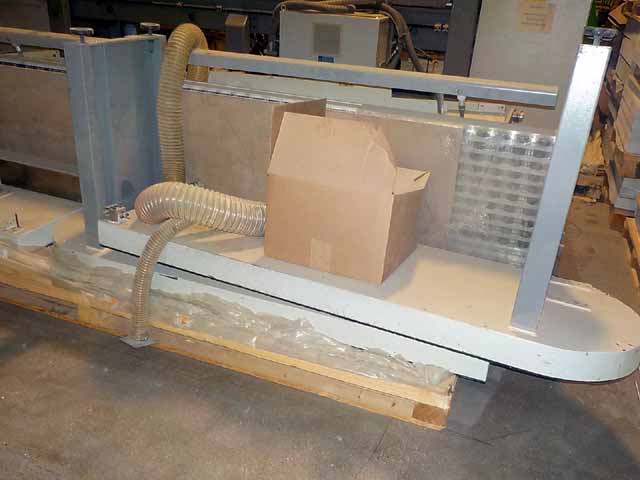

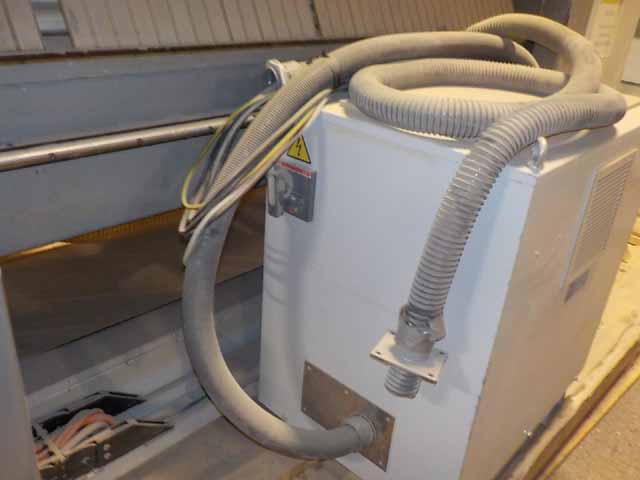

Selco Windows PC Based CNC Control With Digiset Scoring Adjustment. Quick Change Blade System. Panel Measuring. Optimized Opening Of Pressure Beam. Brushless Pusher Drive. (3) 2-Meter (78) Air Support Front Load Tables. (6) Pneumatic Grippers. Side Squaring Device By CNC Control. Rear Trim Ejection. Laminate & Rear Support Table. Dust Suction Parts. Rear Module Roller Support Tables. Transformer.
