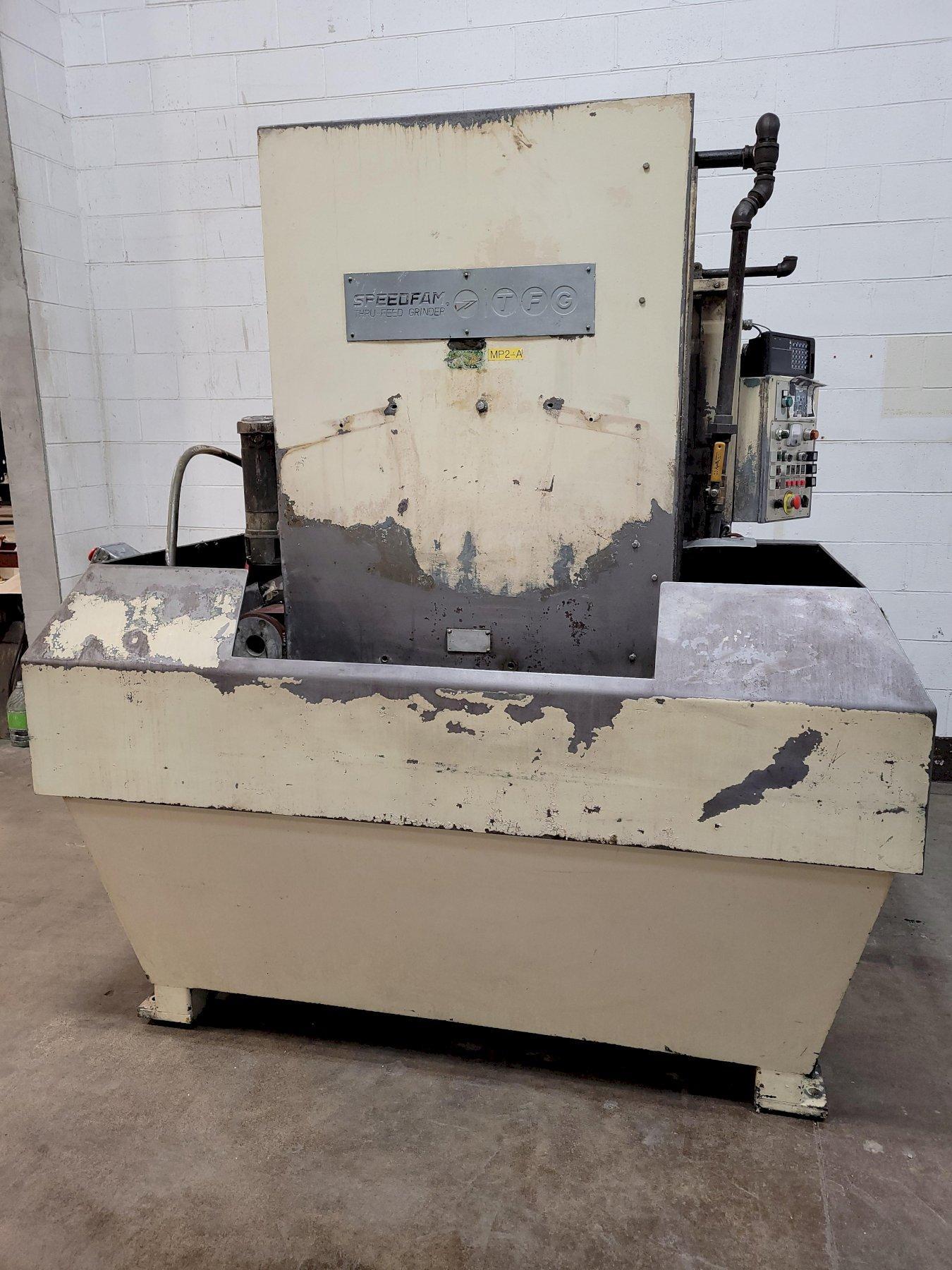

Speedfam Model 625TFG Thru-Feed Grinder

Brand
SPEEDFAM

Model
625TFG

Stock #
G1462

Condition
Used

Year
1983

Location
Lake Bluff, Illinois
United States

Specifications

Feed Belt (Continuous) 6" x 120"
Wheel Size 18" x 3" x 10"
Bolt Circle 16 inches
Belt Speeds 0 - 36 FPM
Maximum Stock Removal, Single Pass .100
Part Size Control ± .005"
Part Size Maximum 6"W x 6" x Inf. Length
Part Size Minimum ½”W x 0.40
Micro Feed 5 IPM
Approximate Dimensions 52" x 76"
Approximate Weight 7500 pounds

Equipped With

Motor Driven with 25 HP Whitnon, 3 Phase, 60 Cycle, AC 230 Volt Spindle Drive. MD Hydraulics. MD Belt Drive. MD Coolant.

Etamic Programmable Air Gauge for Auto Sizing and Continuous Automatic Wheel Wear Compensation. Sony Head Position DRO 6” x 36” Variable Electro-Magnetic Chuck with Guide Rail. Air Gauge On/Off. Belt Speed Variator. Load Meter. Cyclotron Coolant Filtration System with Cyclotron Swarf Conveyor with Magnetic Separator. Magnaflex Demag Ring. Free Standing 9” Belt x 90’,  9” Belt x 48’ Motorized Inclined Conveyor.

The Speedfam is being offered Cleaned, Cycled, and Guaranteed to be in good operating condition. It can be inspected under power at your convenience.
