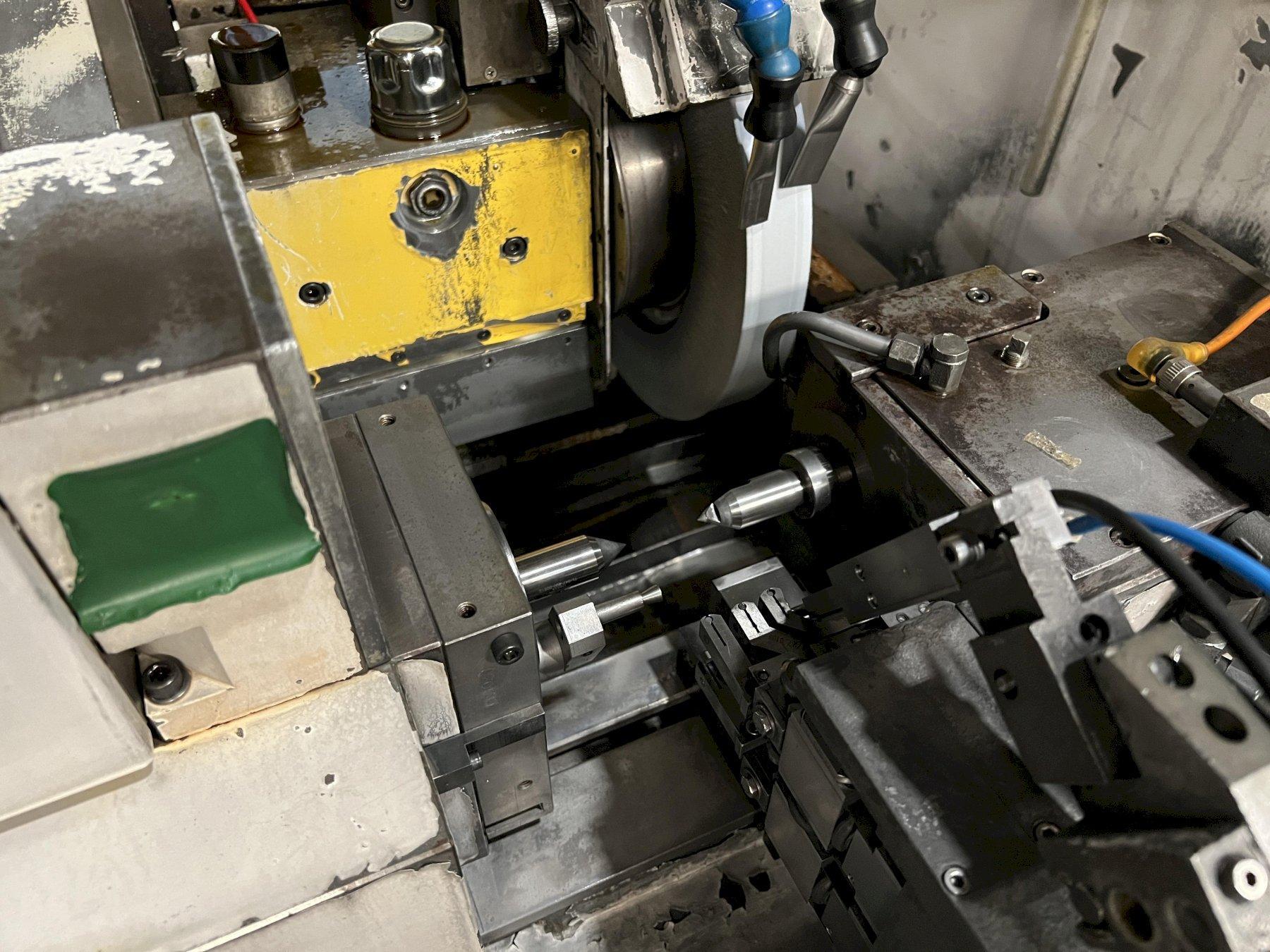

Studer S20 CNC Plain Cylindrical Grinder with Combination Plain/Angle Wheel Head and Swiveling Work Head.












Studer S20 CNC Plain Cylindrical Grinder with Combination Plain/Angle Wheel Head and Swiveling Work Head.

Brand
STUDER

Model
S20 CNC Plain / Angle Head

Type
Grinders, Cylindrical, CNC

Stock #
GS204MT

Condition
Used

Year
1996

Location
Elk Grove Village, Illinois
United States

Request a Quote

Specifications

Swing Over Bed	7.87 inches
Distance Between Centers	15.75 inches
Max Table Travel Longitudinal Slide	16.54 inches
Max Grinding Length	15.75 inches
Longitudinal Table Slide Speed	0.001 - 10,000 mm/min
Max Swivel of Table	15 Grad (13.5 deg.)
Wheel Head Slide Max. Travel	6.06 inches
Wheel Head Slide Speed	.001 - 10,000 mm/min
Wheel Size Diameter X Width X Bore	13.75" X 2" X 5"
Work Head Taper	Morse #4
Tailstock Taper	Morse #2
Maximum Weight between Centers	44 pounds

Equipped With

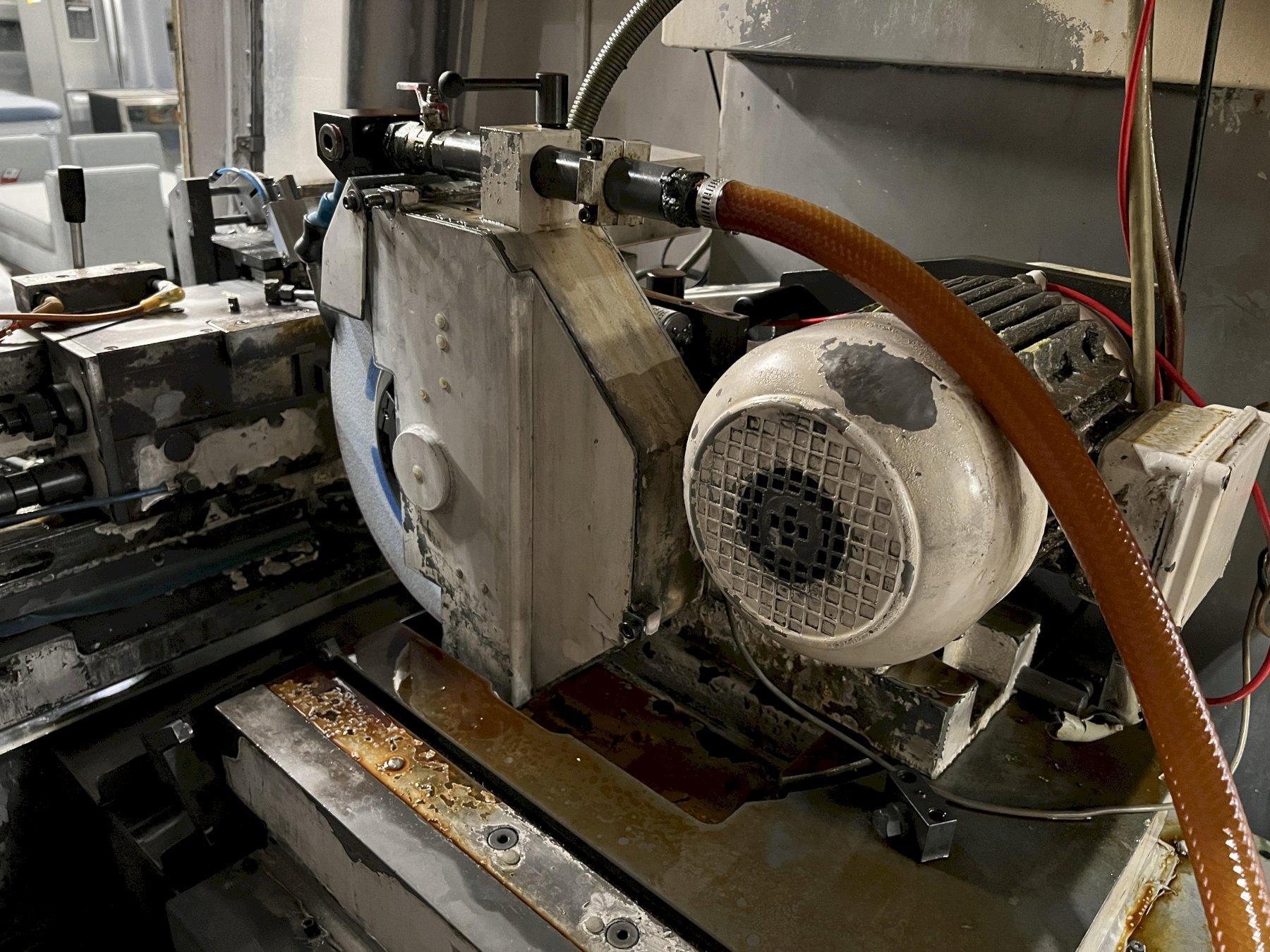

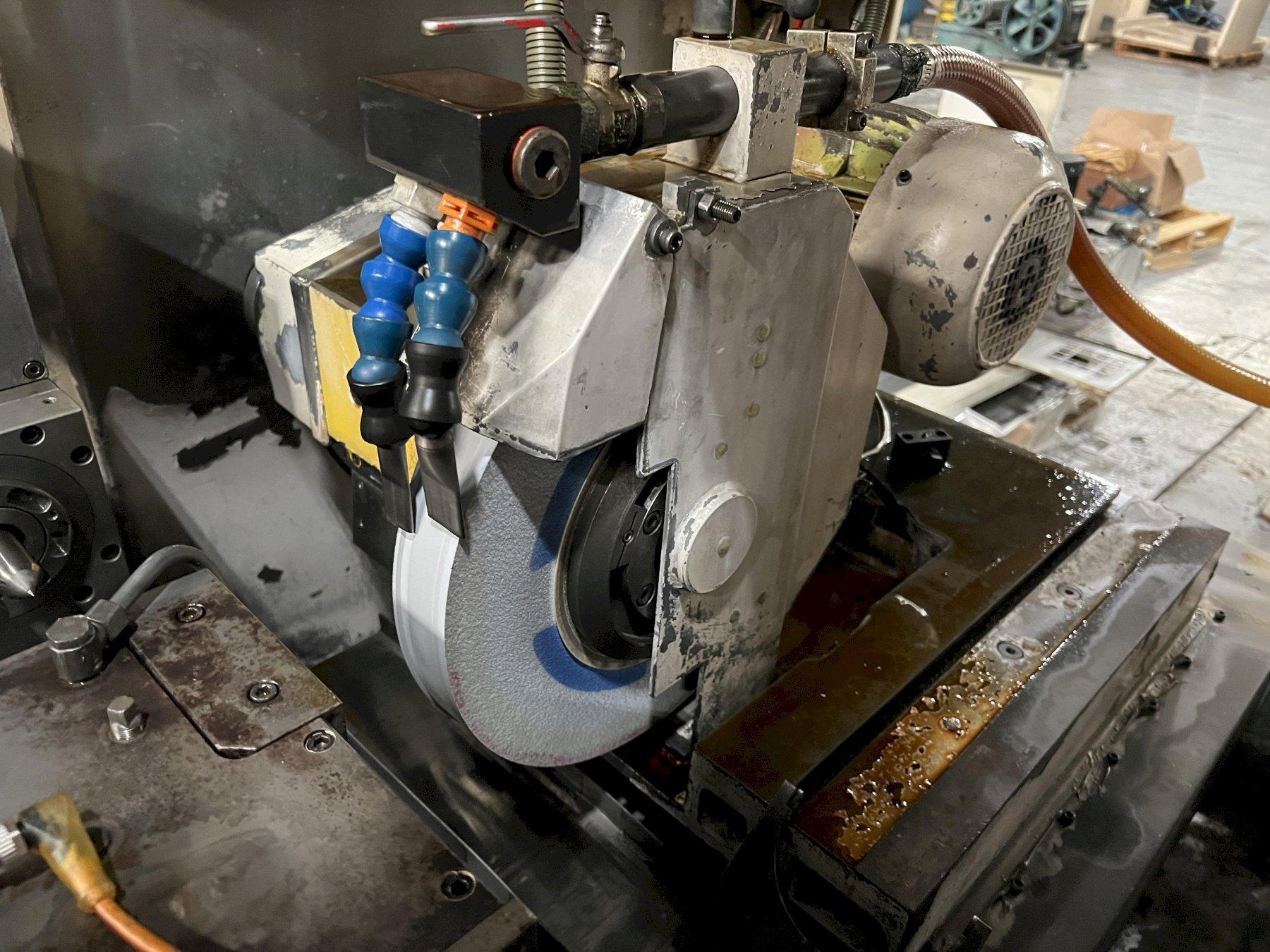

Straight or 30 deg. Wheel Head. (Manually adjusted).

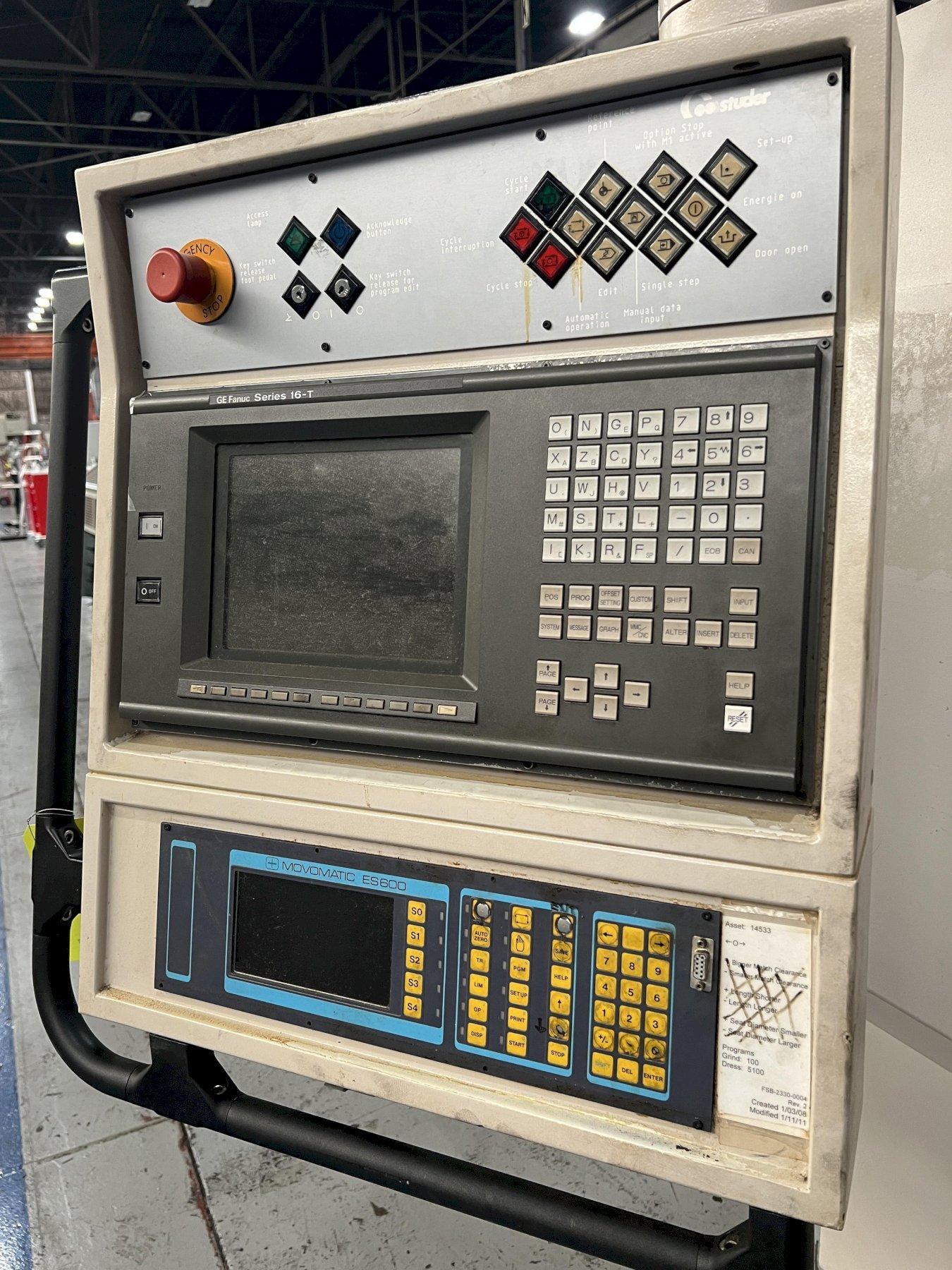

Fanuc 16-T CNC Controls.

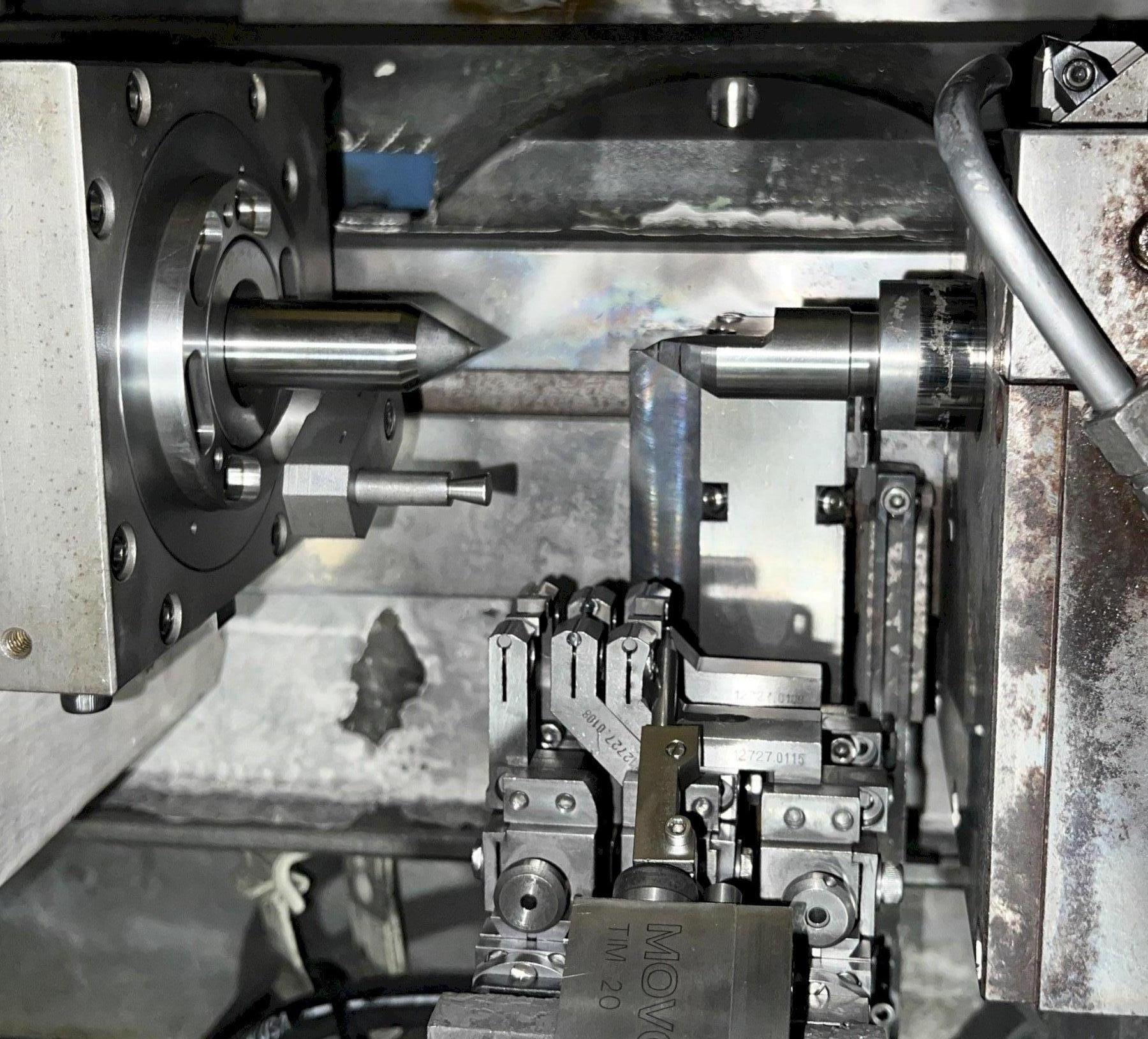

Movomatic ES600 In Process Gauging.

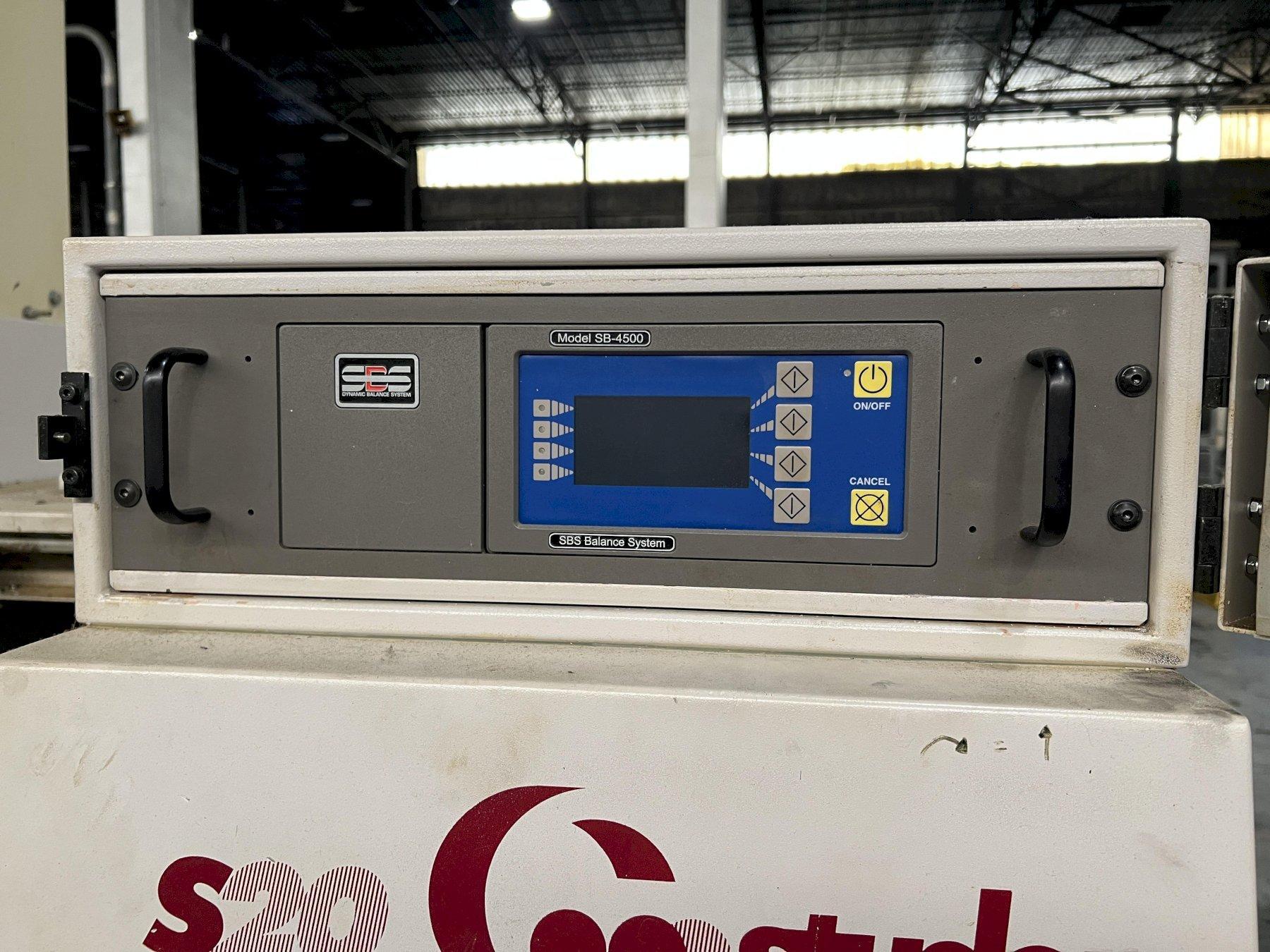

SBS SB-4500 Wheel Balancer.

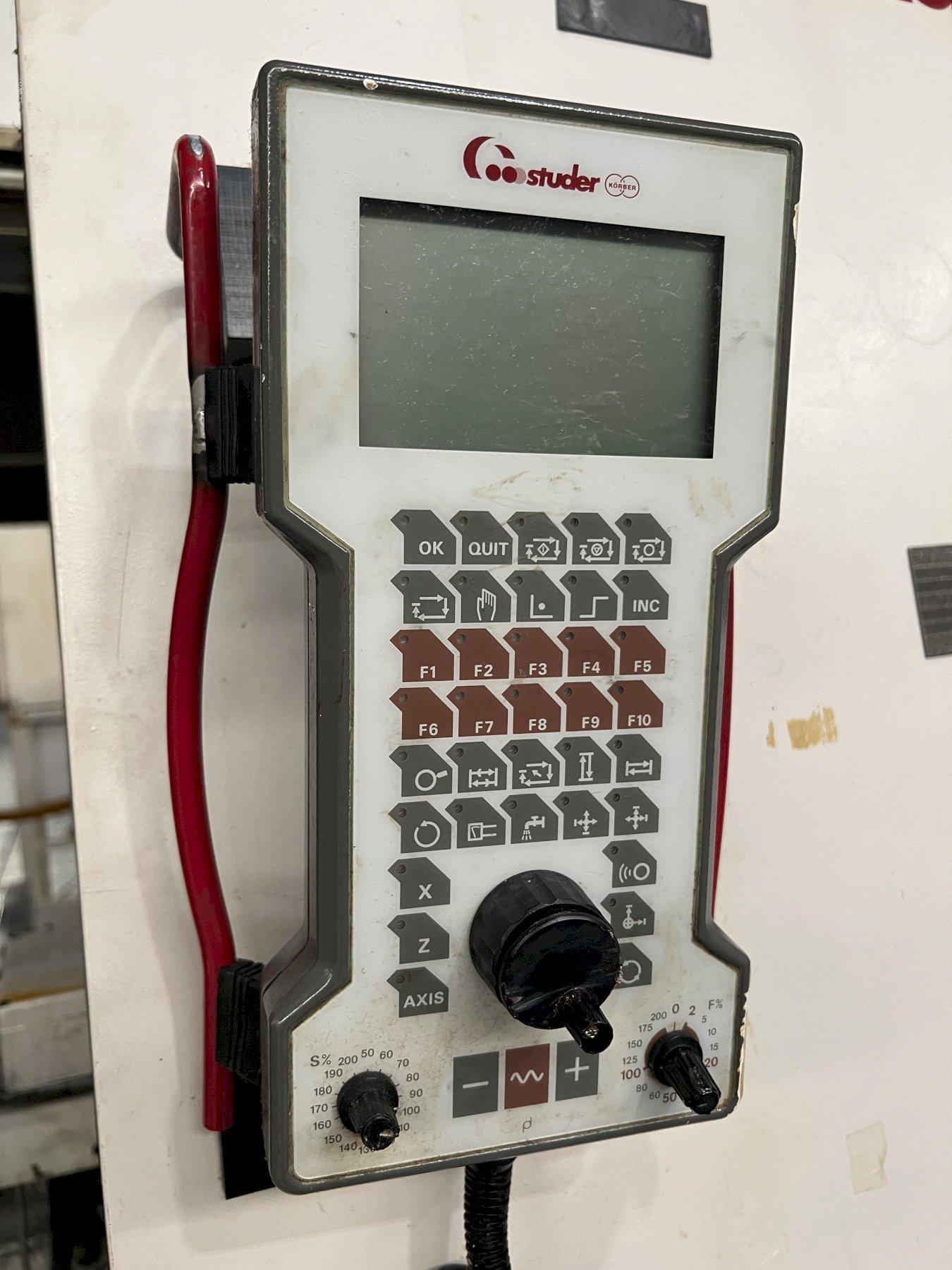

Operators hand held remote control station with M.P.G.

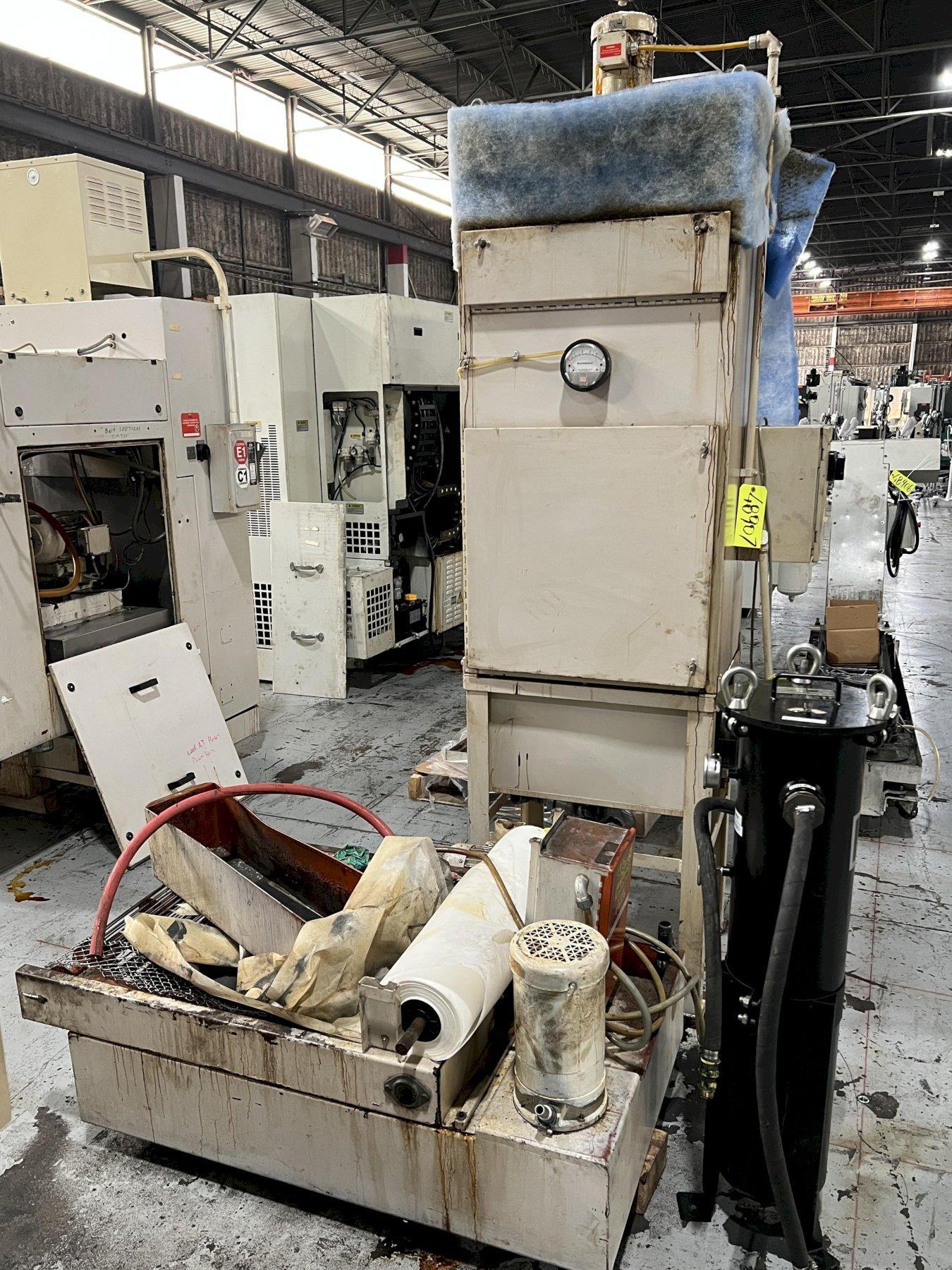

Cyclotron Paper drag out coolant filtration system.
