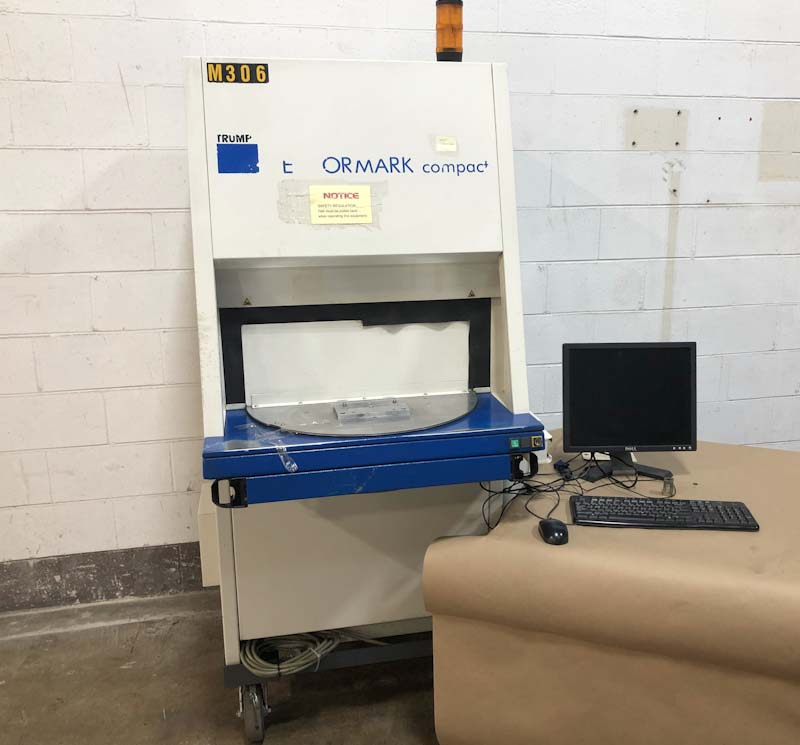

Trumpf Vectormark Laser Marking System

Brand
TRUMPF

Model
Vetormark

Stock #
m1924

Condition
Used

Year
2004

Location
Lake Bluff, Illinois
United States

Specifications

Laser Device: .
Wave Length 1064nm
Pulse Repetition Frequency 1 - 60kHZ
Marking Field Size 2.36" x 2.36"
Standard Optical System .
. 4.72" x 4.72"
. 7" x 7"
Standard Spot Size 45
Connection: .
Electrical 115 VAC, 60Hz, single phase
PC Operating System Windows NT
Protection: Beam Source and Supply Unit IP54
Beam Source Dimensions: .
. 610 x 200 x 260mm
. 24" x 7.8" x 10.23"
Maximum Ambient Temperature 96°F
F.O.B. Our Plant

Equipped With

Trumpf VMC3 Diode Pump Laser. VectorMark Open System Architecture. Compact Size. Single Phase 115 VAC 20A Connection. Integrated Cooling System. Trumpf 2-Position 600m Rotary Table with Shutter Door. Laser Resonator. Mounting Brackets. Gavonmeters. RF Power Supply. Monitor. Keyboard. Mouse. Standard Operating Software. Integrated Cooling System. Coaxial Pilot Laser. Telediagnostics. Full I/O Capability.

The Trumpf was removed from service in good operating condition and is being offered with a return privilege guarantee.
