| Cutter: Circumference and Face Slide | . |
| - Max. Diameter | 9.84 inches |
| - Max. Length of cutting edge | 7.87 inches |
| Shank-type Tools: Circumference and Face Side | . |
| - Diameter | 9.84 inches |
| - Max. Length | 19.68 inches |
| - Max. Length of cutting edge | 7.87 inches |
| Discoid Tools: Circumference and Tool Flange | . |
| - Max. Outside Diameter | 9.84 inches |
| - Max. Length of cutting edge | 7.87 inches |
| - Max. Tangential clearance angle | 6° |
| - Radial Clearance angle | -10° - +6° |
| - Grinding at (depending on pitch and tool dimensions) | Circumference + Tooth Flank |
| PCD (Thickness from) | 0.06" - 0.14" |
| Carbide (Thickness up to) | 0.23 inches |
| Stellite (Thickness up to) | 0.39 inches |
| The following can be machined: | . |
| - Max. Cutting edges with lateral clearance angle | 30° |
| - Max. Chamfers | 45° |
| - Max. Helical cutting edges | 45° |
| Max. Weight of Tool (including holder) | < 20kg |
| Wire Diameter | 0.0059" - 0.011" |
| Wire Guide | 0.78" - 4.72" |
| Max. Wire Speed | 196 ipm |
| X-Axis | 8.66 inches |
| Y-Axis | 11.81 inches |
| W-Axis | 7.87 inches |
| A-Axis: Swivel Angle | 360° |
| - Tapered Holder | ISO 50 |
| E-Axis: Swivel Angle | 120° |
| Automatic Measuring Device | 0.001 mm |
| Approximate Weight | 10000 pounds |

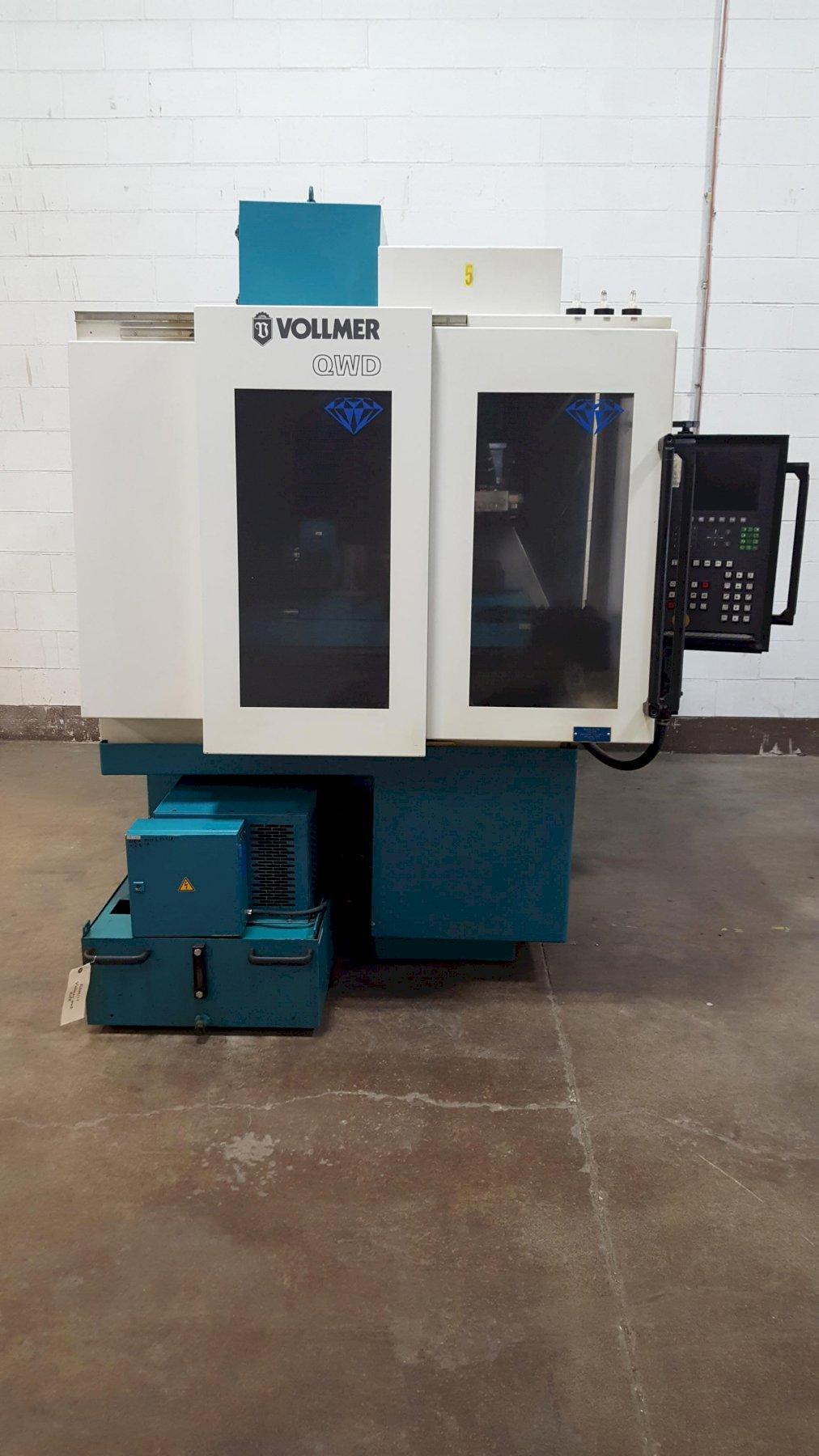

For Sharpening PCD Tipped Milling Cutters, Cylindrical Tools, Discoid Tools and other profiles with Automatic Measurement
Vollmer PMC CNC Control for X-Axis Tool Holder movement, X2 Horizontal Positioning of Tool Holder. Horizontal Movement of Erosion Head Front-Back. Vertical Movement of Erosion Head Up-Down. A-Axis Rotary Movement of Tool. E-Axis Rotary Movement of Erosion Head. Erosion Head Mounted Measuring Probe. X-Axis Wire Feed. Y-Axis Wire Feed. SK-50 Hand Wheel Tightening. A-Axis Mount Adapter with (2) Center Type Tools and (1) Threaded Arbor, (2) Test Arbors. Tailstock with Lever Operated Center and Adjustable Spring Tension. Dielectric Coolant System with filtration. Automatic Central Lubrication System. Automatic Fire Extinguishing System. Worklight Full Enclosure.
