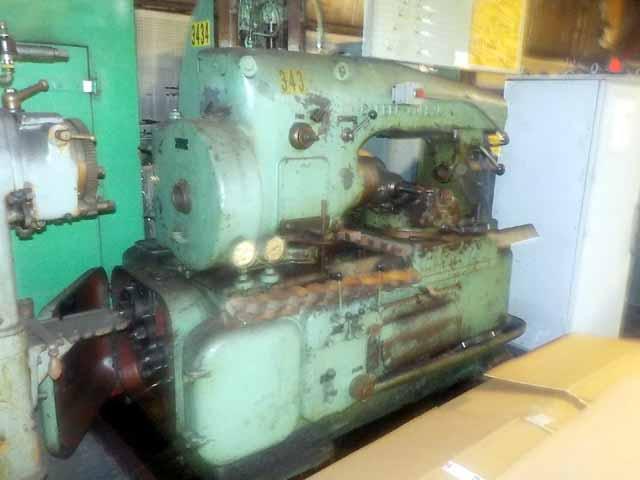

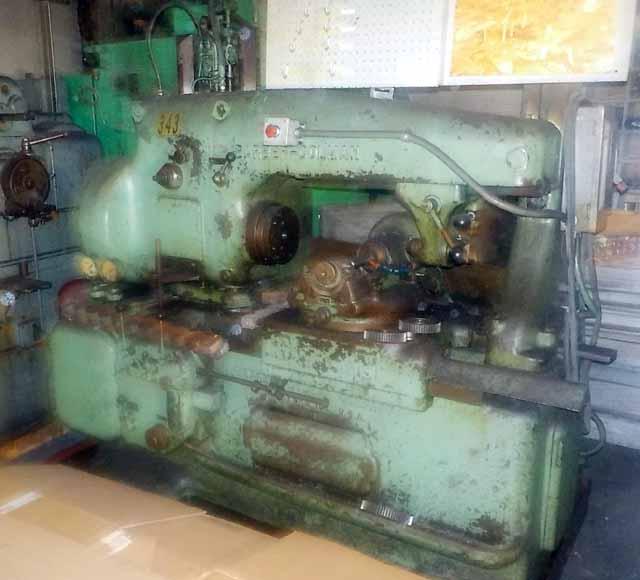

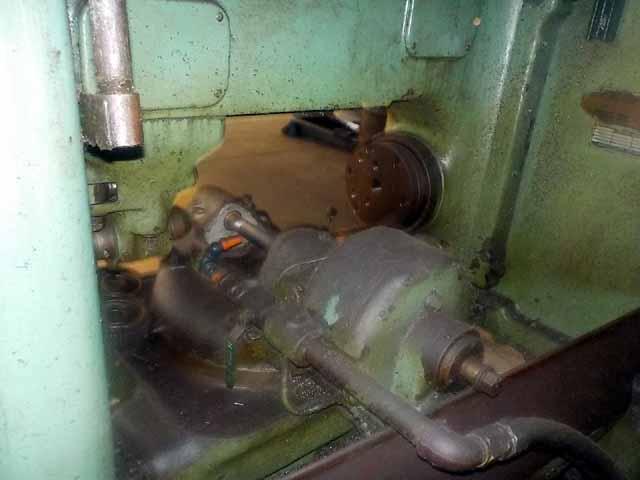

Barber-Colman Type D Gear Hobbing Machine

Model
D

Stock #
ghdx2

Condition
Used

Year

Location
F.O.B. WI Shipping Point,
United States

Specifications

Diameter, maximum 14"
Face, maximum 14"
Diametral pitch, steel 3
Max. travel of hob slide 15"
Max. dist. C/L work spindle to C/L hob spindle 9-3/4"
Distance C/L work spindle to surface of overarm 7-1/4"
Hob diameter, maximum 5-1/2"
Hob length, maximum, taper spindle 4"
Hob length, maximum, straight spindle 5"
Hob spindle slide axial adjustment 3"
Hob spindle speeds (8) 62-240 RPM
Work spindle, taper in nose No. 18 B &S
Diameter of hole thru spindle 3-1/8"
Feed, max. inches per minute 2"
Motor 10 HP, 1800 RPM
Floor space, occupied by base 70-11/16" x 38-3/4"
Length overall, doors closed 80"
Width overall, doors closed 43"
Width overall, doors open 59"
Weight, approximate 10,000 lbs
F.O.B. WI Shipping Point

Equipped With

Single Thread Index. Universal Hob Slide. Lever Operated Tailstock.

This machine is being offered "As Taken From Service". It can be inspected at your convenience.
