Fellows #4GS Gear Shaper

Brand
FELLOWS

Model
4GS

Type
Gear Shapers

Stock #
GH4GSX

Condition
Used

Year
1960

Location
Brook Park, Ohio
United States

Request a Quote

Specifications

Maximum Pitch Diameter External	6”
Maximum Pitch Diameter Internal	6”
Maximum Diametral Pitch Spur	4
Maximum Diametral Pitch Helical	5
Maximum Face Width External & Internal	2”
Maximum Helix Angle w/Standard Guides (using 5” cutter)	45°
Approximate Dimensions	56” LR x 44” FB x 82” H
Approximate Weight	6,500 lbs.

EQUIPPED WITH:
Straight Spur Guide.
Power Clamping.
Coolant Pump.

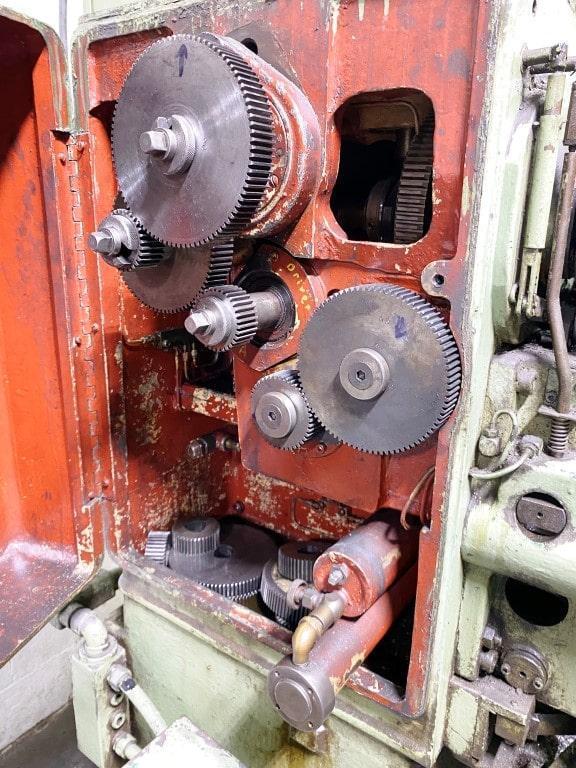

Miscellaneous Change Gears.
