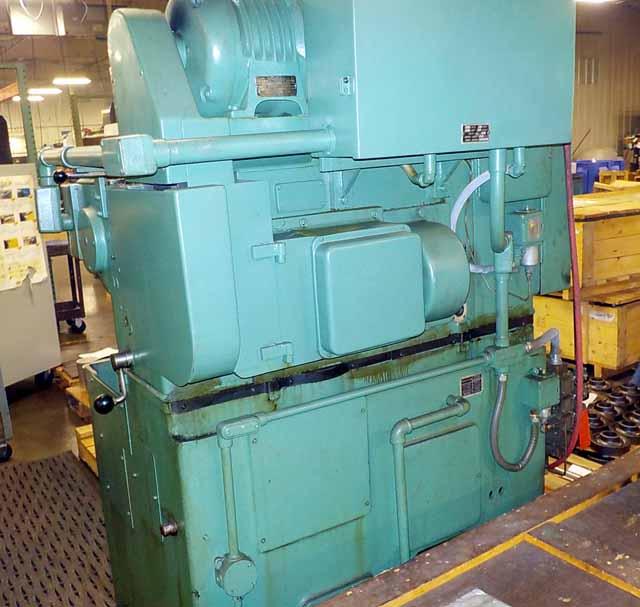

4GS, Fellows Model 4GS High Speed Gear Shaper





4GS, Fellows Model 4GS High Speed Gear Shaper

Brand
FELLOWS

Model
4GS

Type
Gear Shapers

Stock #
gh4gbx

Condition
Used

Year
1957

Location
City Not Specified, Indiana
United States

Request a Quote

Specifications

Maximum Pitch Diameter External	6"
Maximum Pitch Diameter Internal	6"
Maximum Diametral Pitch Spur	4
Maximum Diametral Pitch Helical	5
Maximum Face Width External & Internal	2"
Maximum Helix Angle w/Standard Guides (using 5" cutter)	45°
Spindle Speed	37-635 SPM
Approximate Dimensions	56" LR x 44" FB x 82"H
Approximate Weight	6,500 lbs

Equipped With

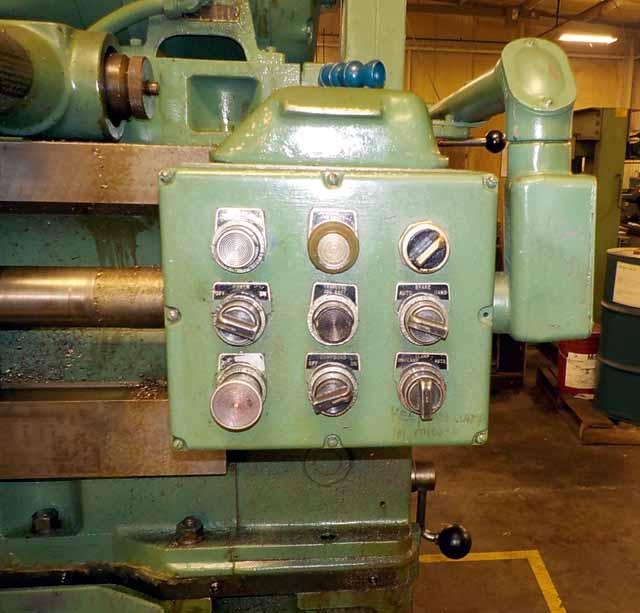

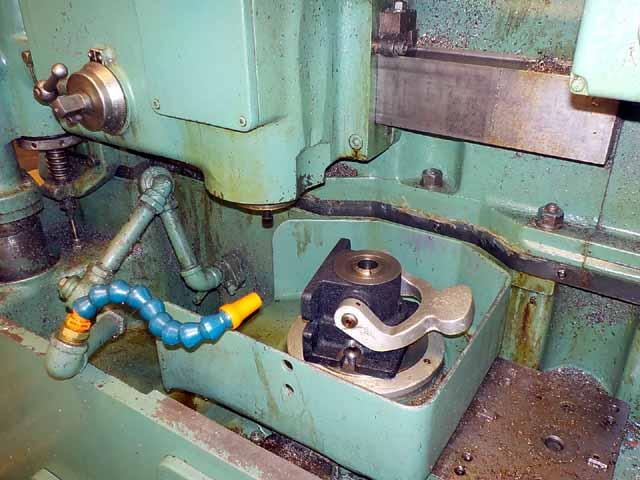

For External And Internal Spur And Helical Gears Splines Clutches Cams And Other Non-Involute Shapes. Motor Driven With 3 HP 3 Phase 60 Cycle 220 Volt Main Motor. ¾ HP Coolant Pump Motor. MD Lubrication System. Complete Electrical Controls.Straight Spur Guide. Manual Semi-Automatic And Fully Automatic Cycles. Coolant System Automatic Lubrication System. Change And Feed Gears.

This machine appears to be in good operating condition and can be inspected under power.
