Specifications
Equipped With

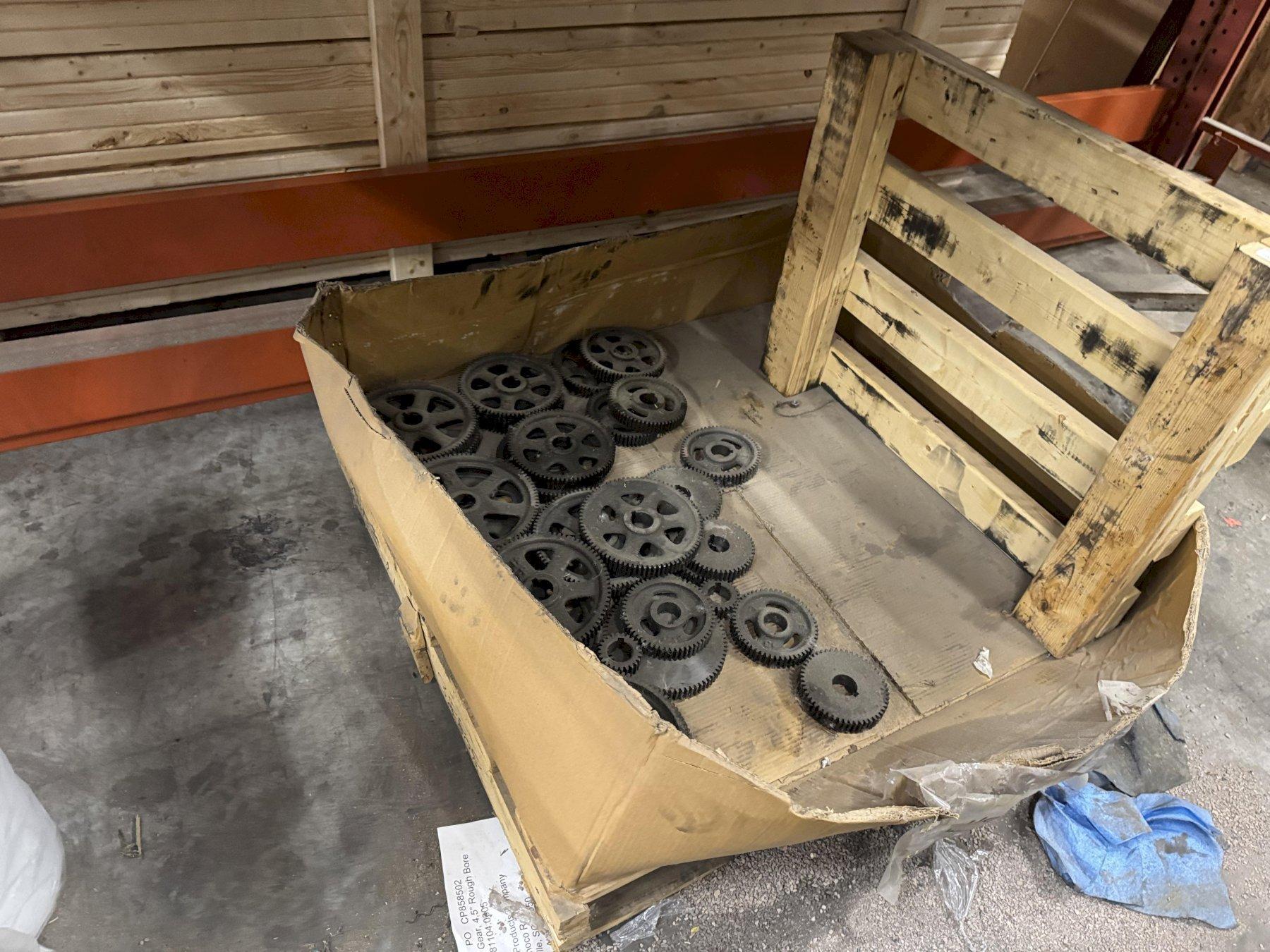

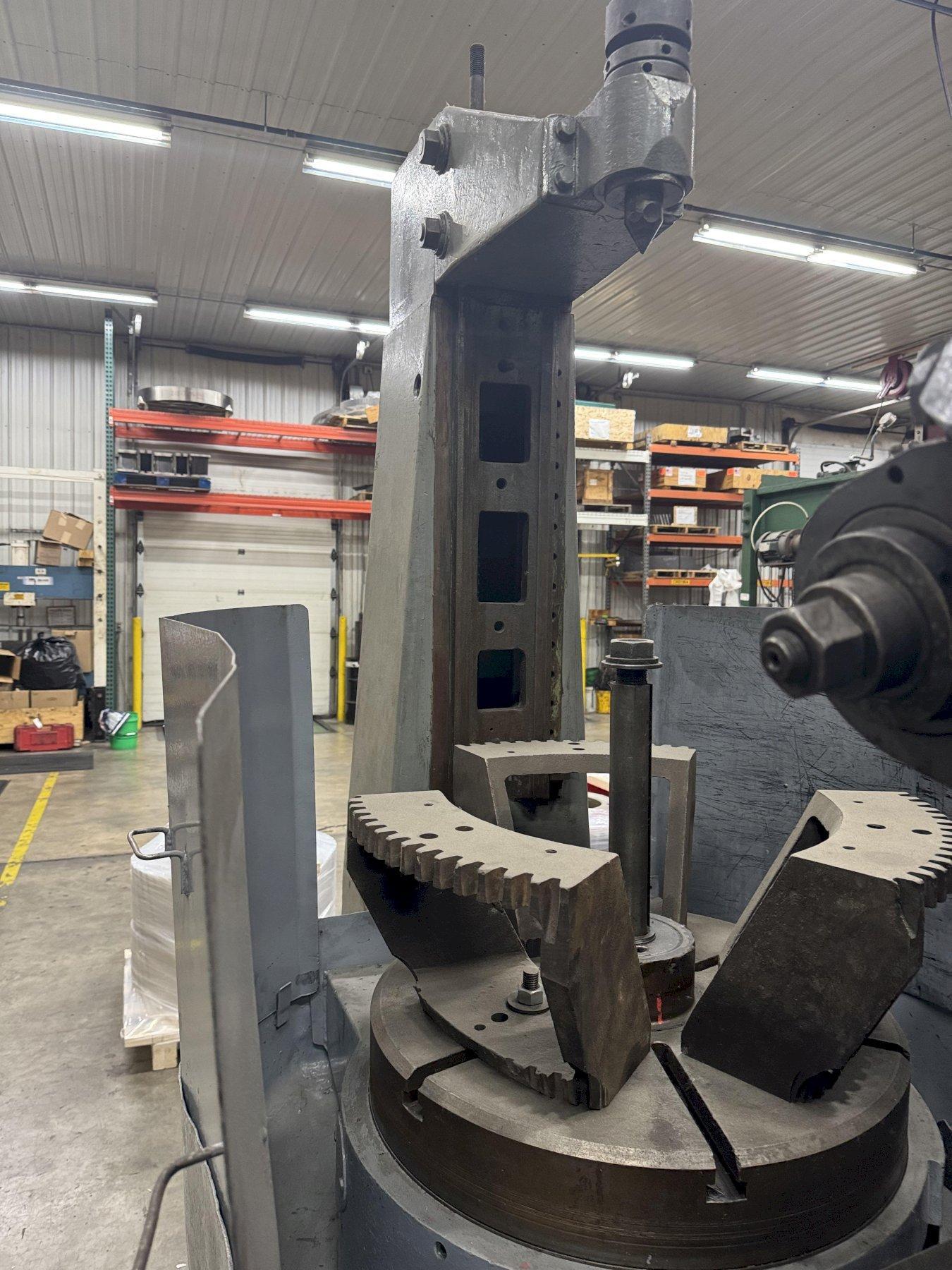

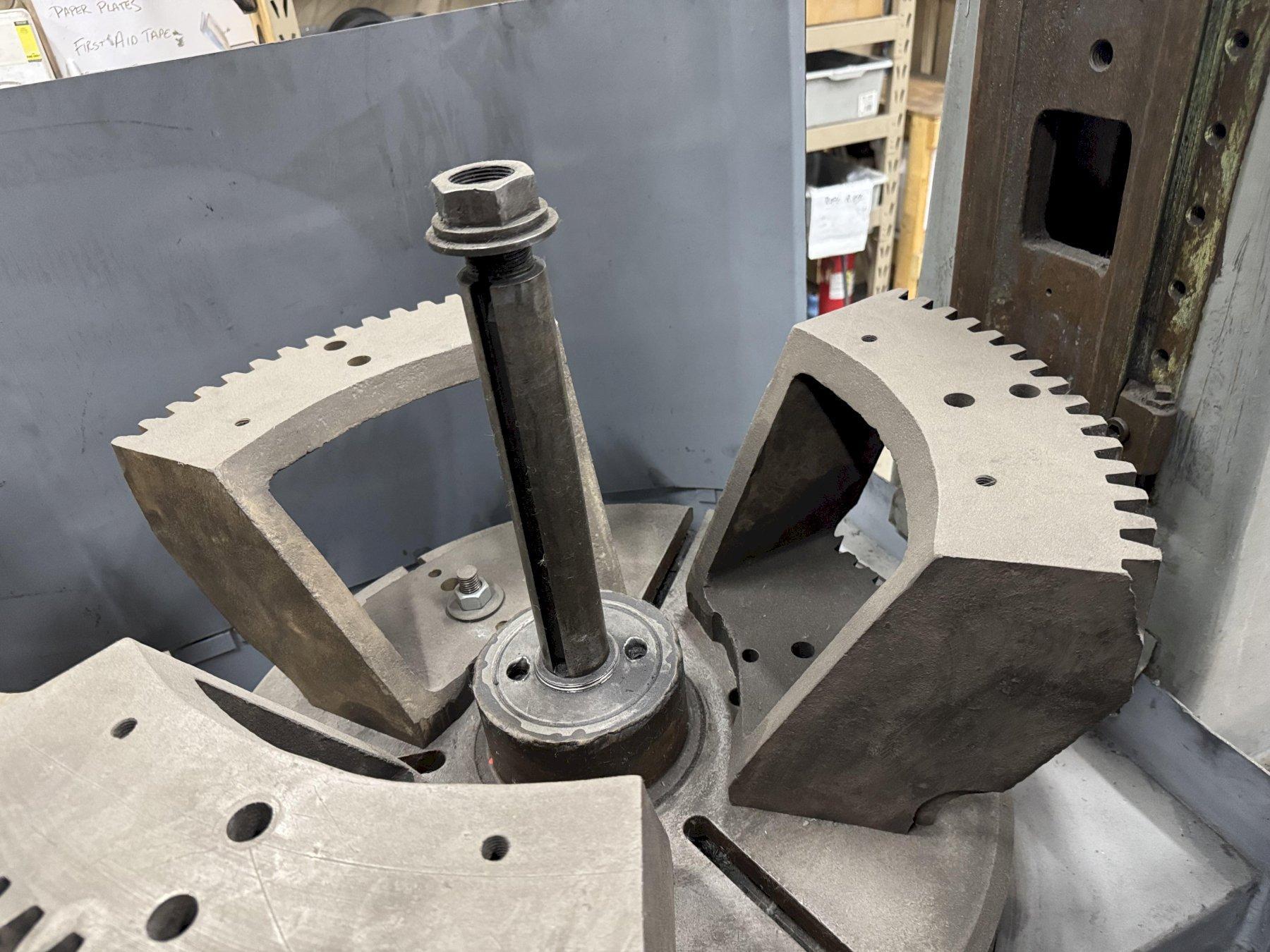

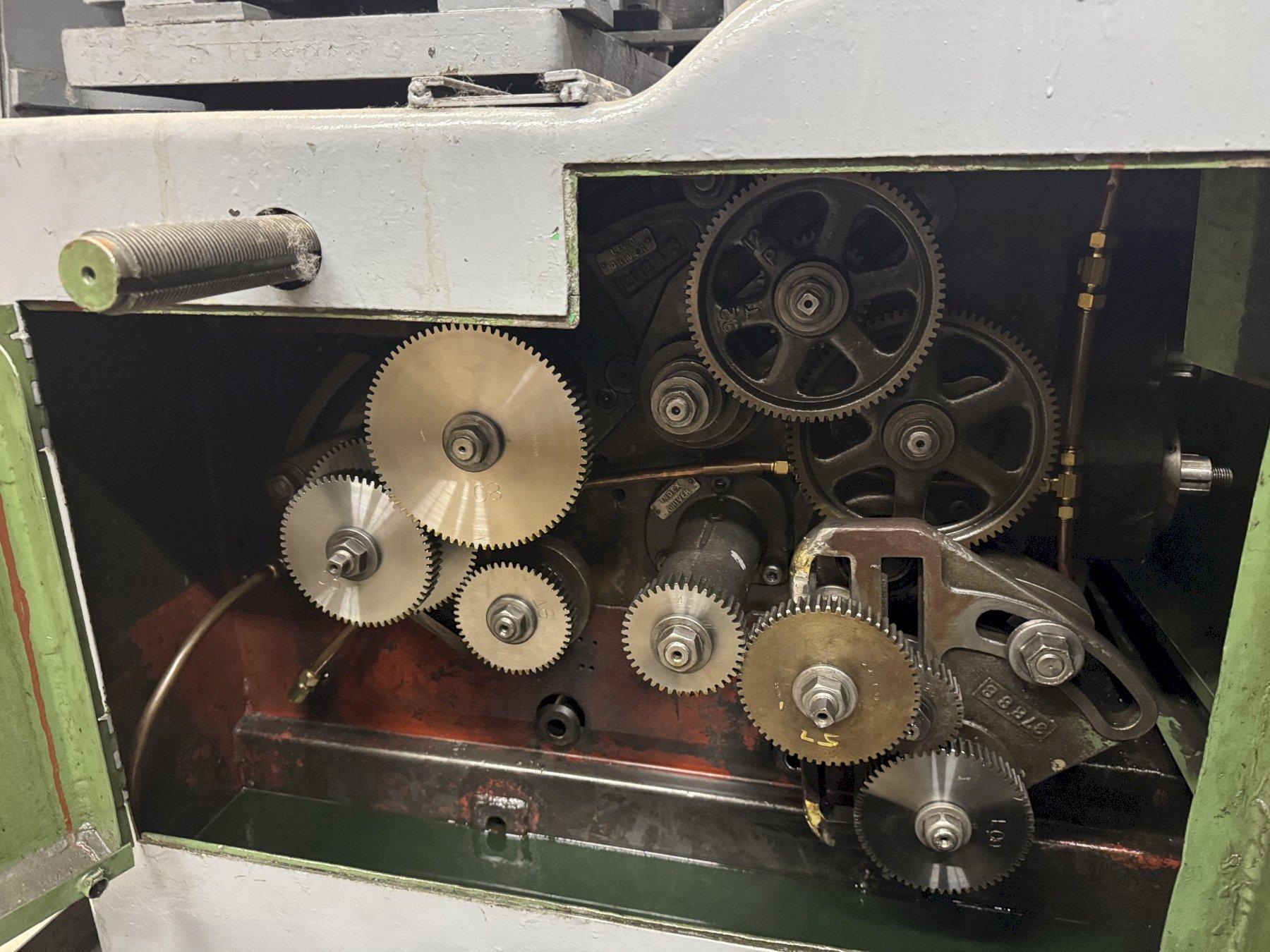

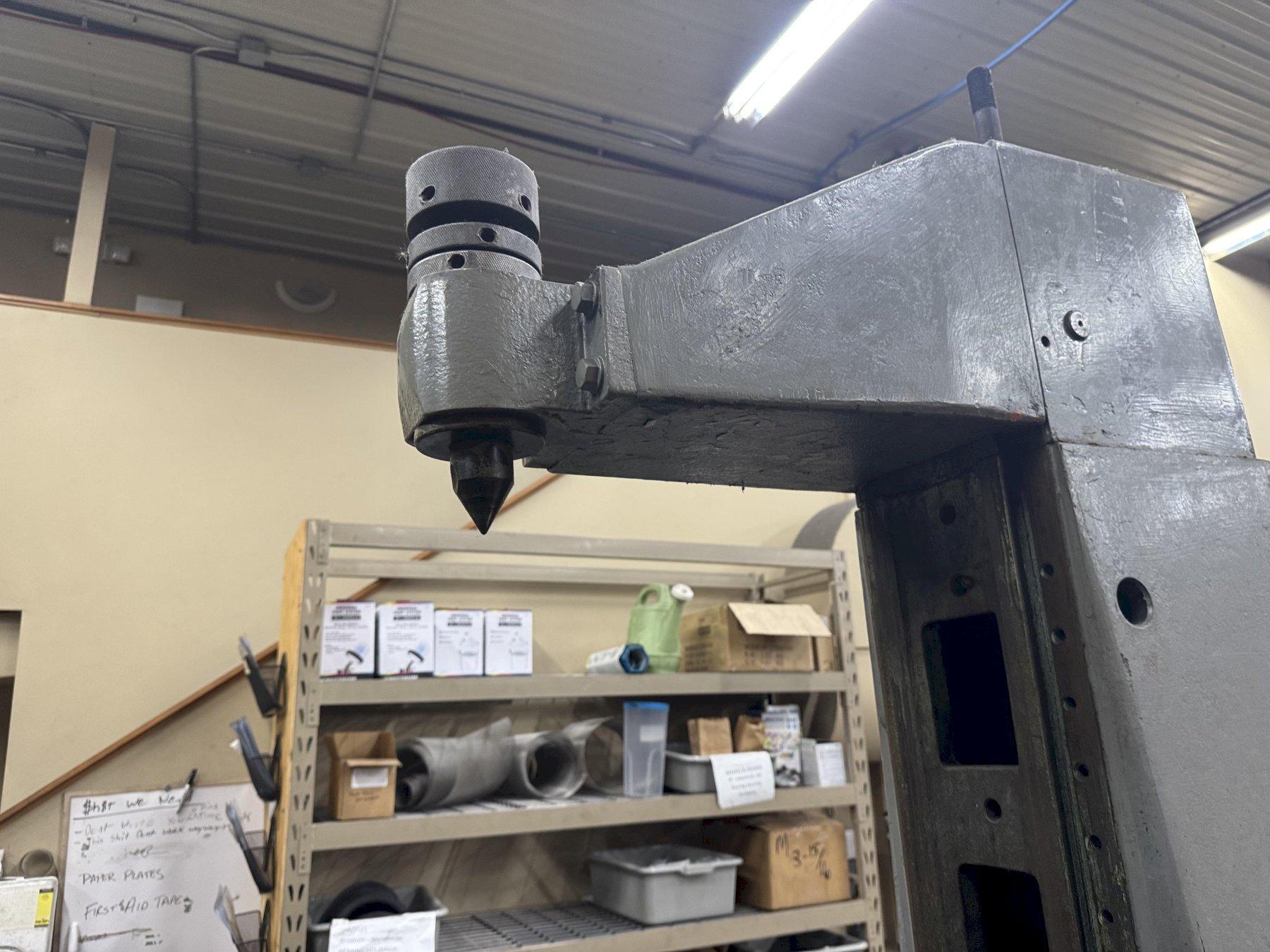

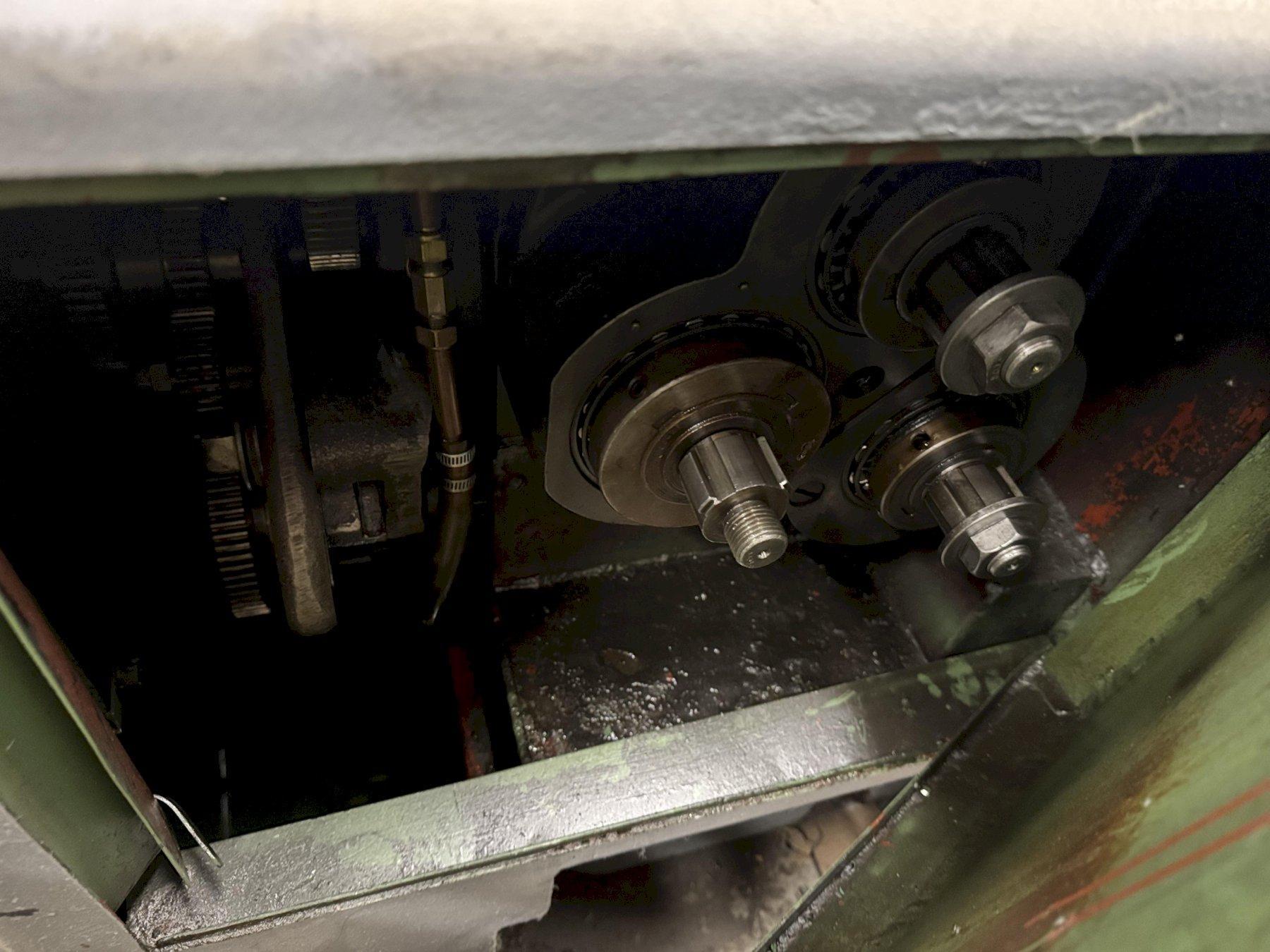

Equipped With: Differential. Swing Away Tailstock. 24" Chuck. Hob Arbor. Change Gears. 9 3/4" Riser Blocks. Work Arbor. Splash Guards.
Maximum Rated Diametral Pitch-Steel 2.5
Face Capacity Spur,Pinions And Gears 18"
Face Capacity 45 Deg Helical 14"
Maximum Diameter 45 Deg. Helical Gear 48"
Maximum Diameter Spur Gear(With Support) 32"
Maximum Diameter Spur Gear(No Support) 48"
Minimum Centers Work and Hob Arbors 2.5
Maximum Diameter Hob 8"
Diameter Work Table 24"
Diameter Index Worm Gear 32"
Diameter Hob Arbor Optional 1.25", 1.5" or 2"
Index Range Including Primes 15-100
Index Range Excluding Primes 100-400
Index Range Number 12
Index Range 37-235 RPM
Index Range Number 15

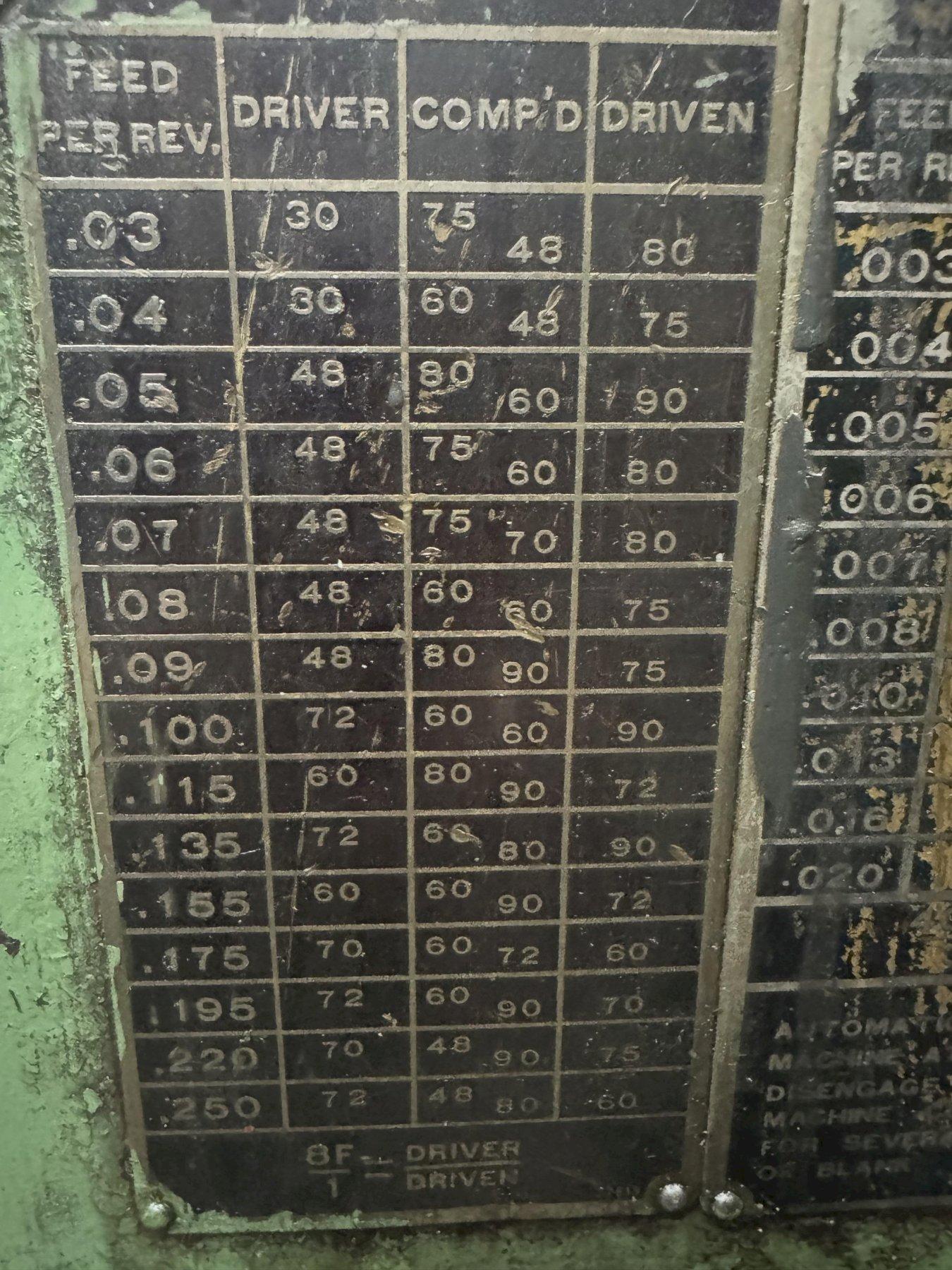

Index Range .03-.200"
Driving Pulley 1250 RPM

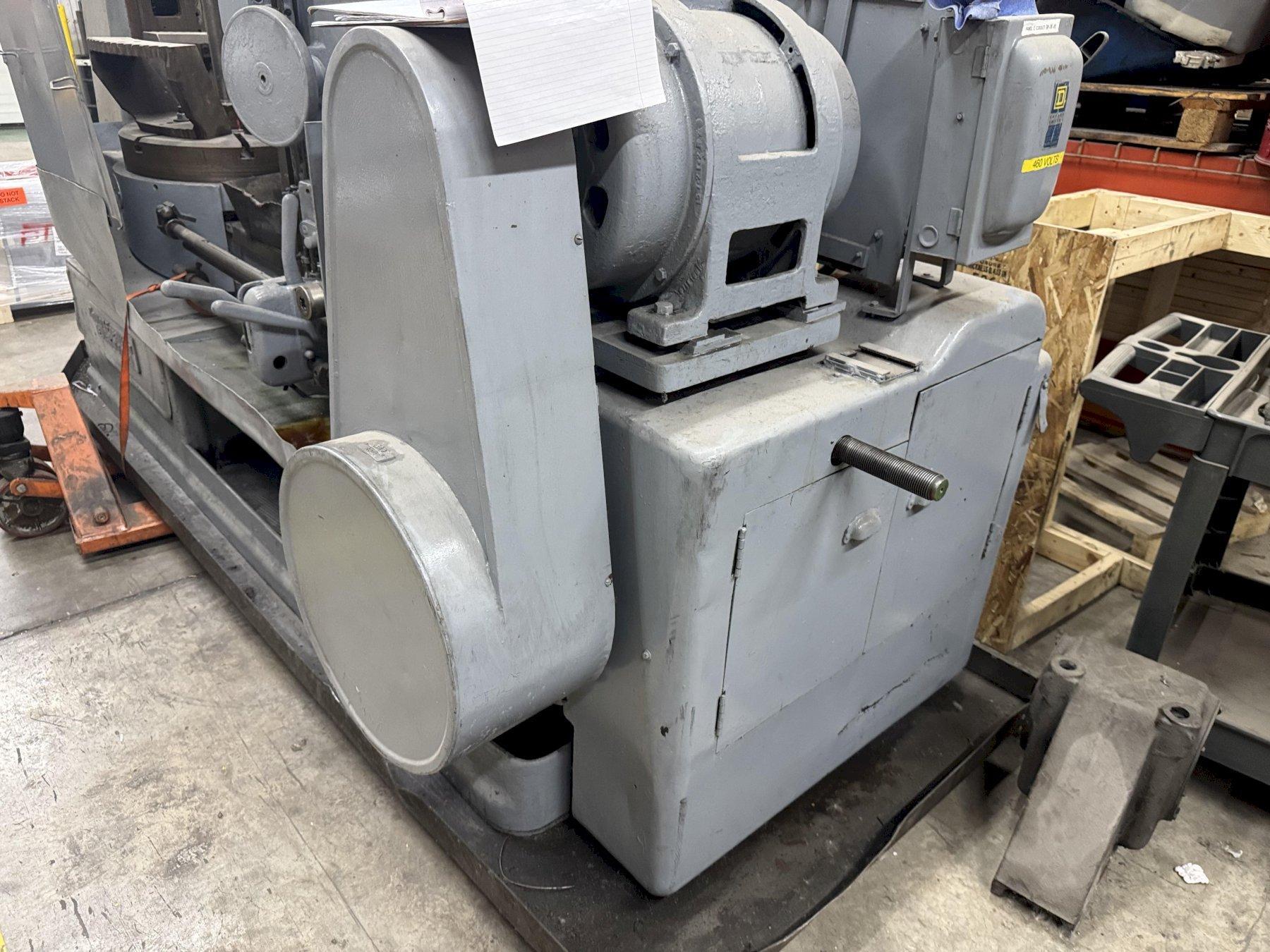

Machine Motor 10 HP
Traverse 1 or 2

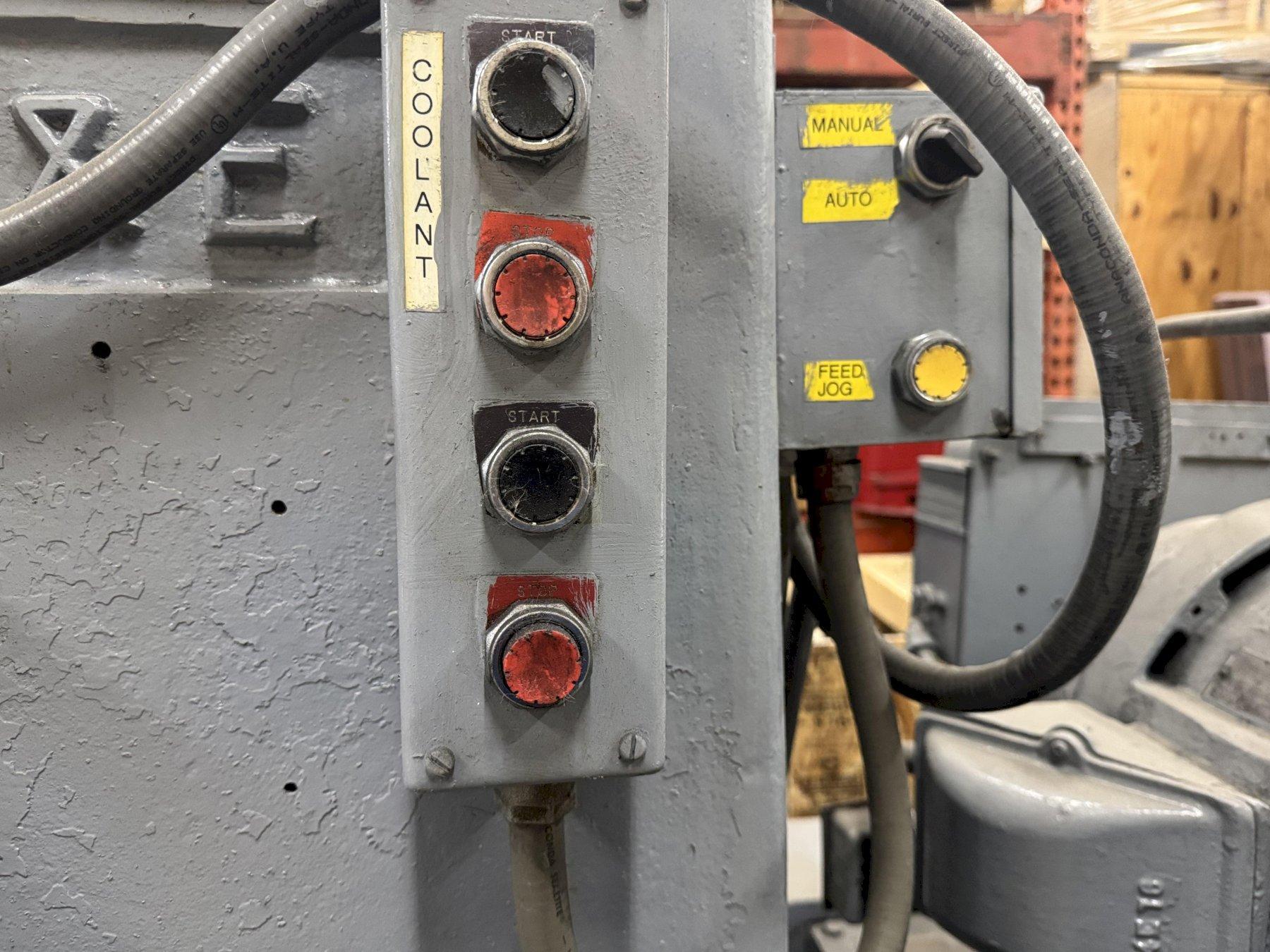

Coolant 1/3
Floor Space 140" x 117" x 106" Height
Net Weight 22000 lbs
